BM50 walk-behind double drum roller with a petrol engine, product photo

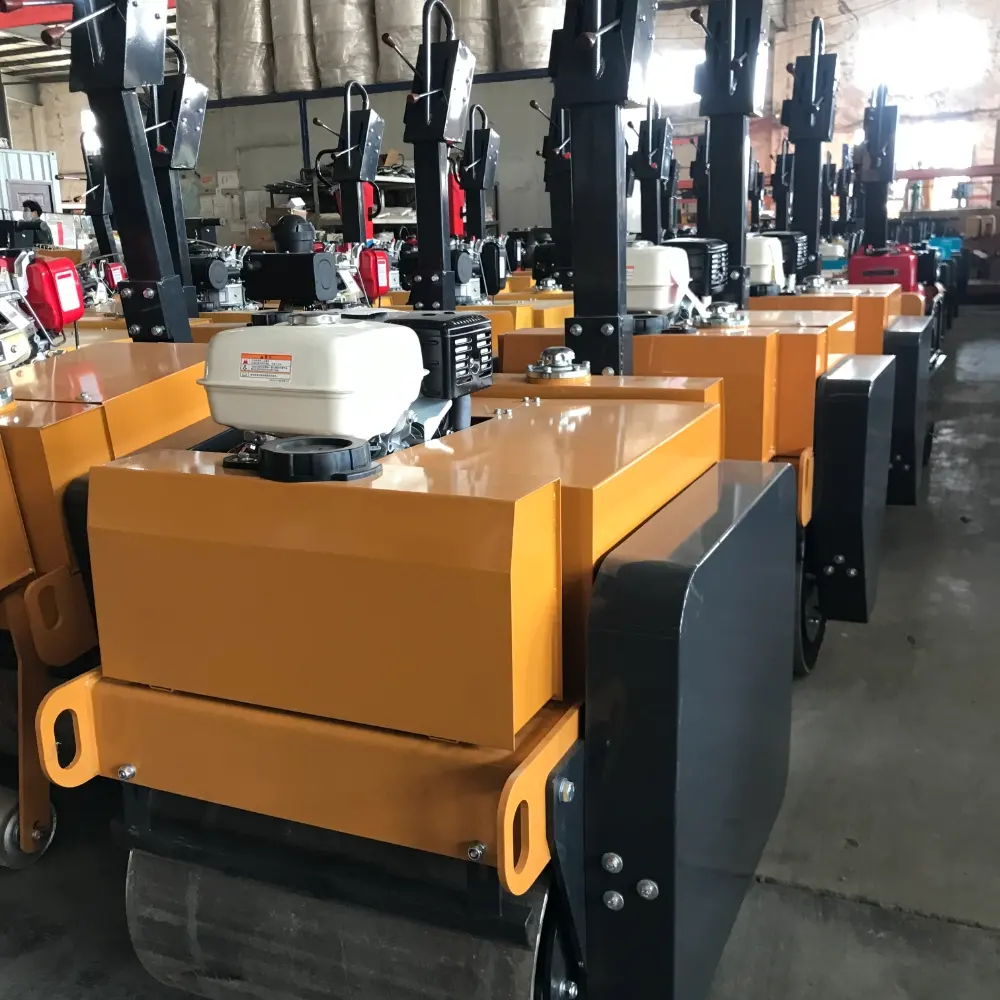

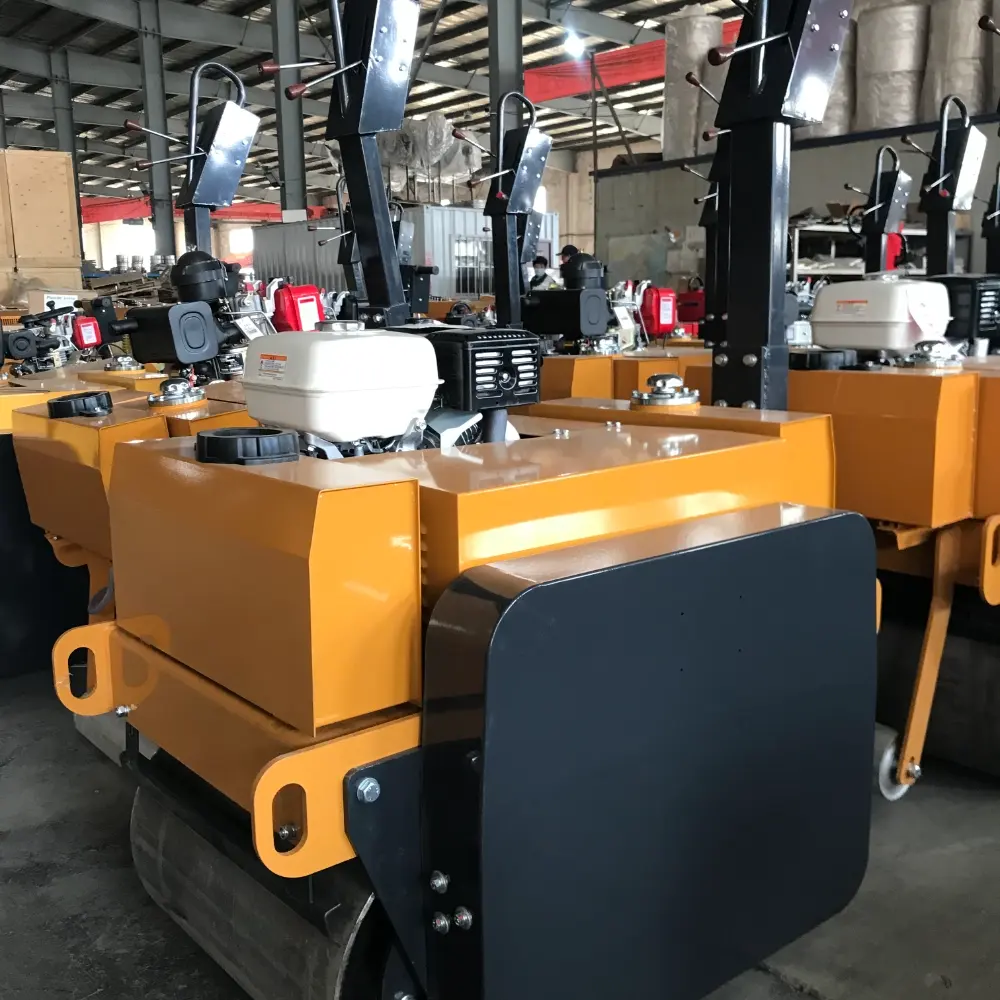

BM50 walk-behind rollers in the factory workshop

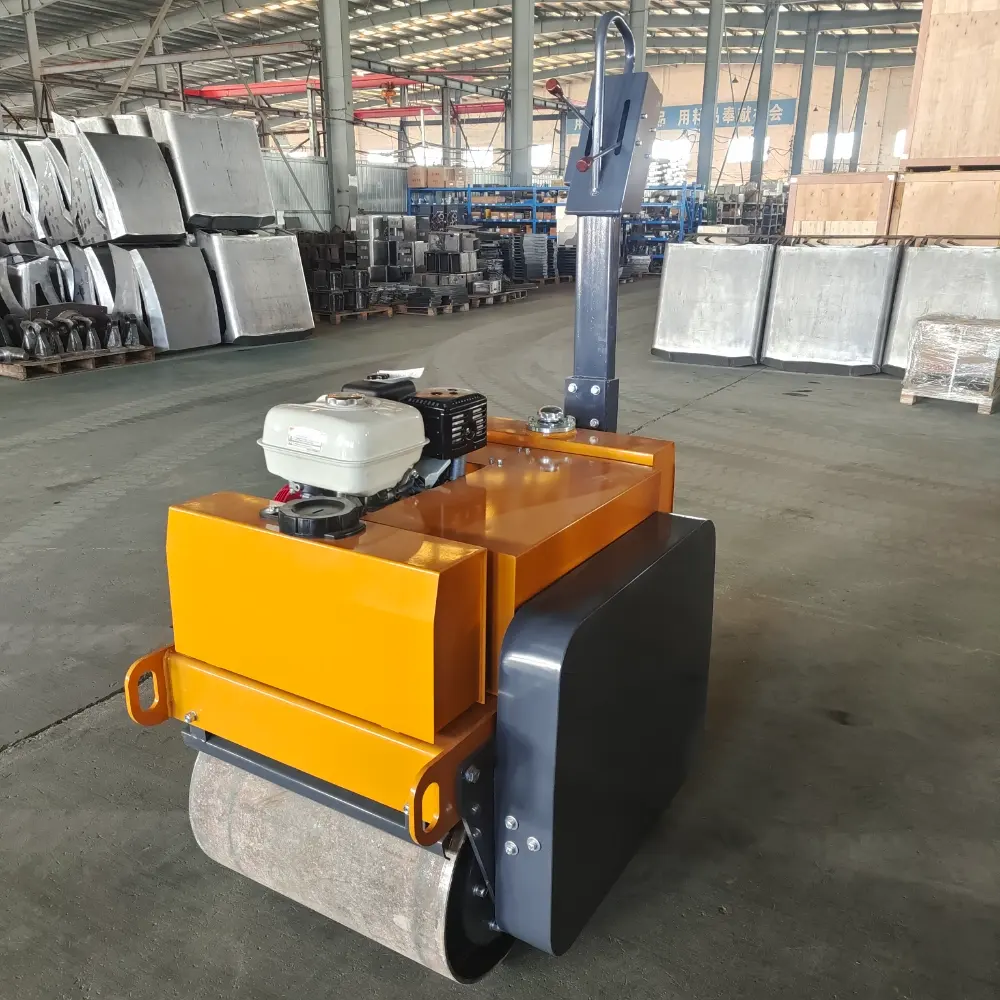

BM50 walk-behind roller with petrol engine, front view in the workshop

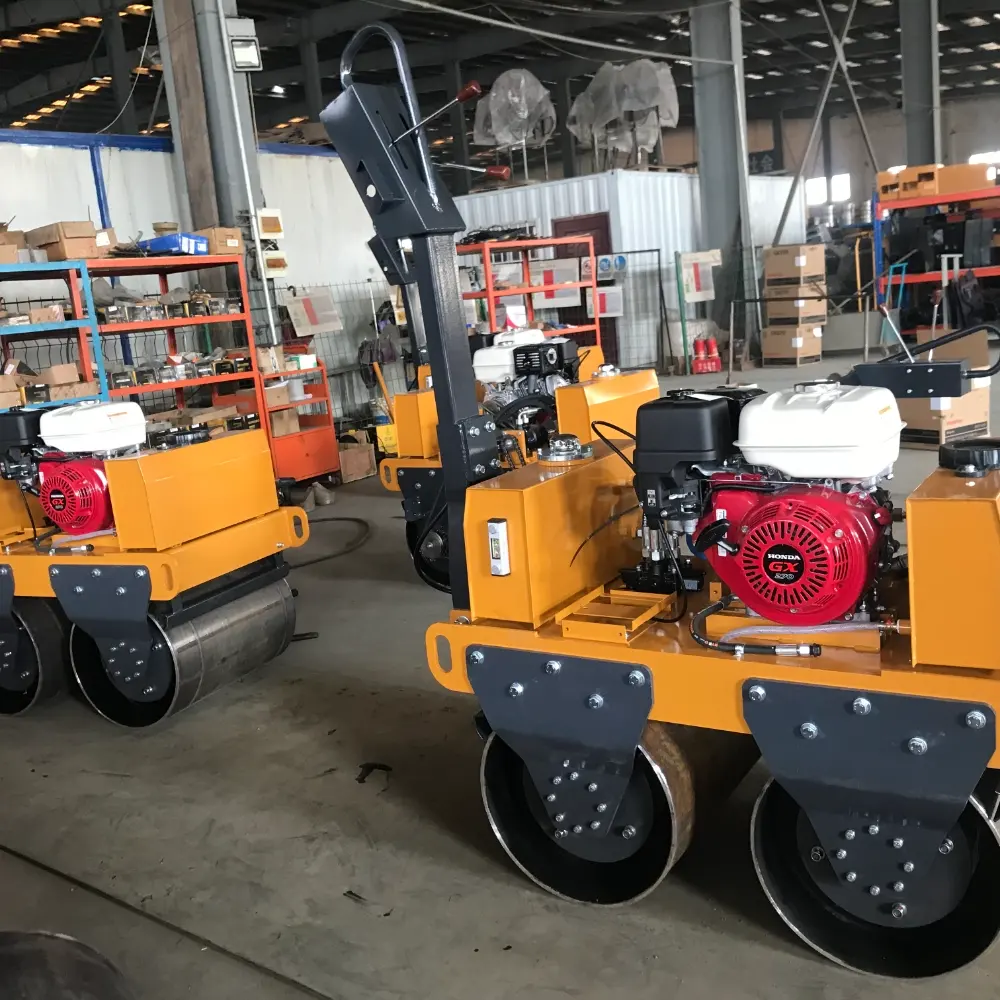

BM50 walk-behind double drum roller, side view in the workshop

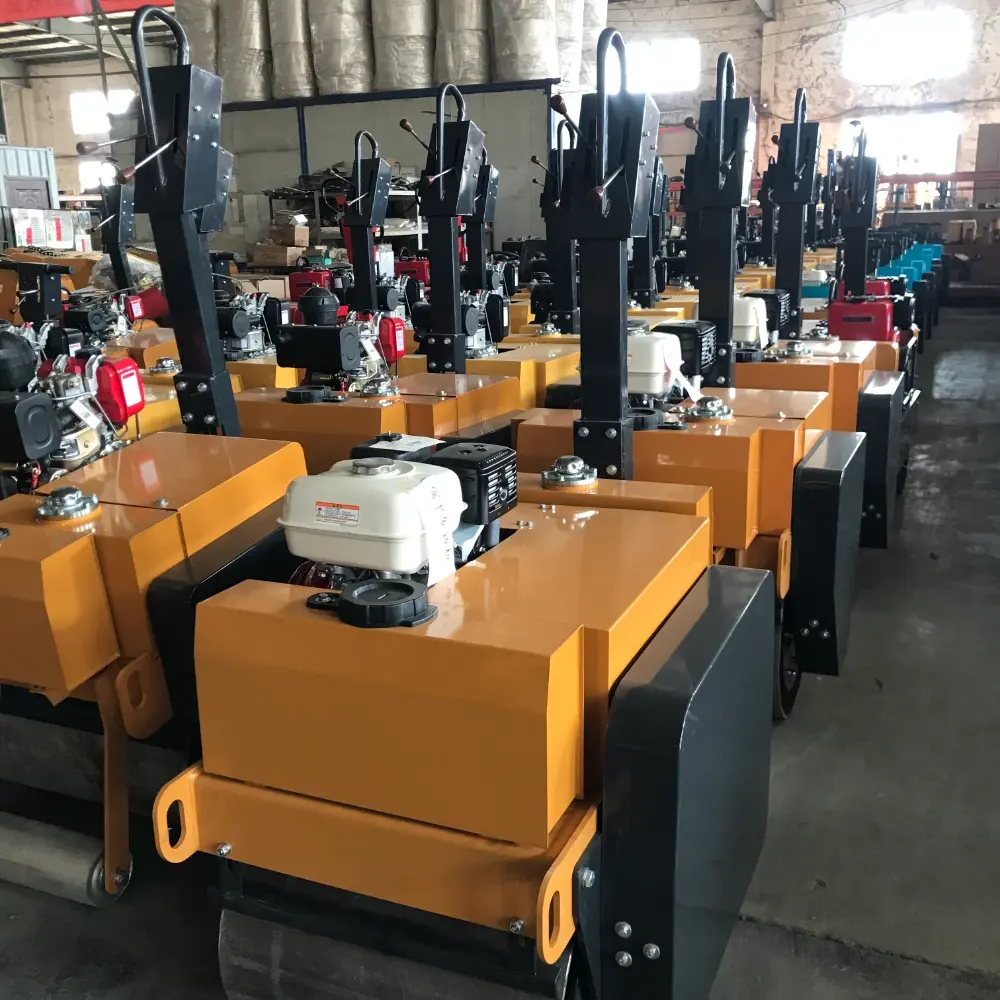

BM50 walk-behind rollers lined up in the workshop

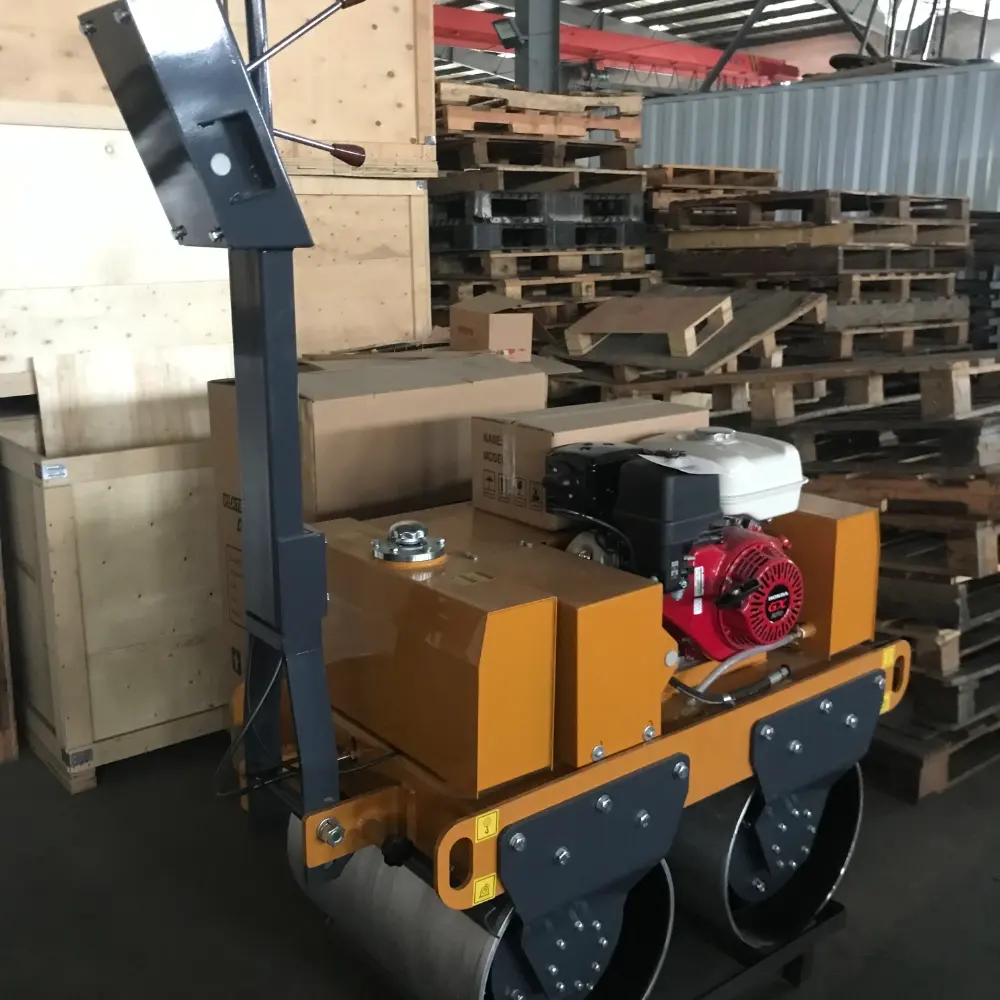

BM50 walk-behind roller, rear view with handle

BM50 walk-behind double drum roller in the workshop, side view

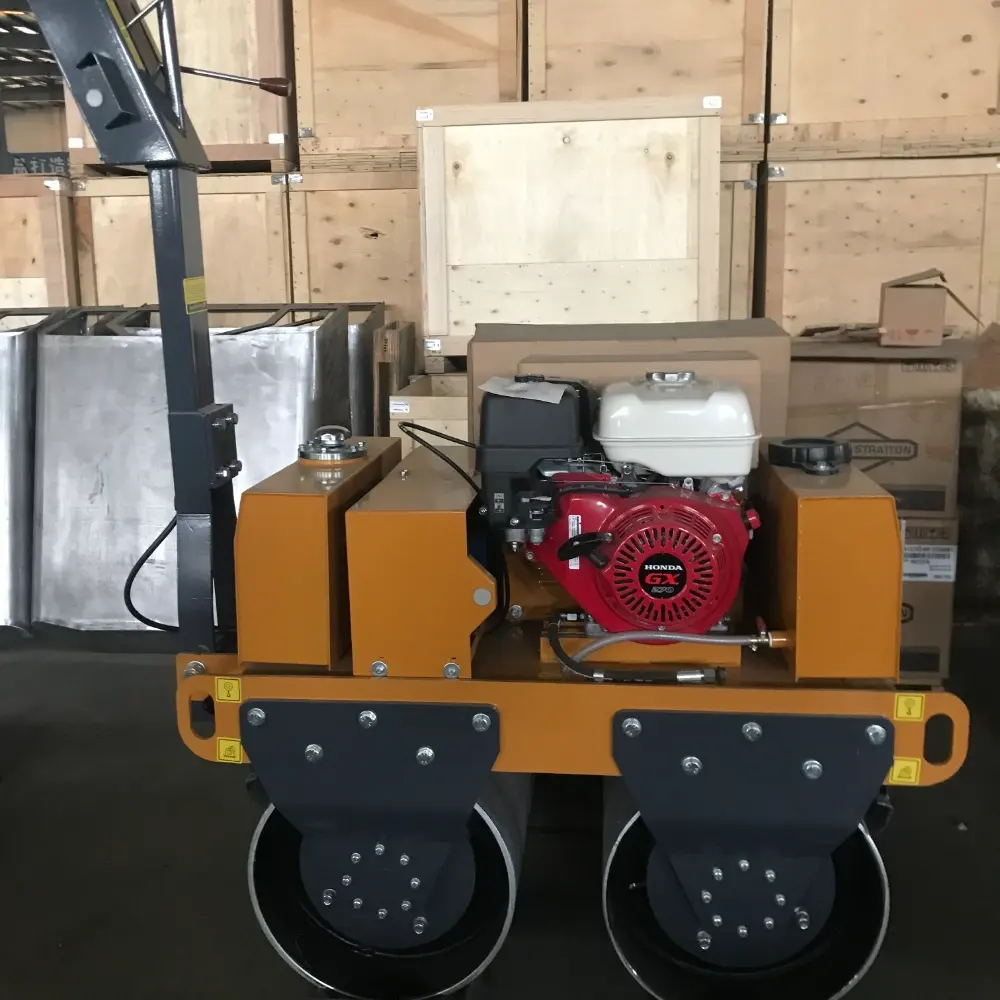

BM50 walk-behind roller, drum and frame view

BM50 Walk-Behind Double Drum Roller, Honda Petrol, 540 kg

Model	BM50
Type	Walk-behind double drum roller
Operating Mass	540 kg
Drum Width	600 mm
Engine	Honda GX270 petrol, 6.7 kW
Vibration	70 Hz, 20 kN, both drums
Speed	0 to 3.8 km/h

Inquire Now

Description
Logistics & Stock

The BM50 is a walk-behind double drum roller with a Honda GX270 petrol engine, 540 kg operating mass and two 600 mm drums that both vibrate at 70 Hz. Travel is hydraulic with chain drive, 0 to 3.8 km/h, with recoil or electric start. The same table covers the diesel BM50C and BM50S; for a heavier walk-behind roller see the BM80. Model BM50 BM50C BM50S Weight Operating Mass kg 540 540 570 Static Load N/cm 45 Dimensions Overall Width mm 780 Overall Length (Handle Flat) mm 2480 Overall Height (Handle Upright) mm 1820 Packing Size mm 16008501900 Steel Wheel Width mm 600 Steel Wheel Diameter mm 426 Start Recoil Pull Start/Electric Start Drive Engine Brand HONDA Changfa/Changchai/KAMA Changchai Engine Model GX270 178 R180 Engine Type Gasoline, Four – stroke Diesel, Four – stroke Diesel, Evaporative Water Cooling Number of Cylinders pc 1 1 1 Output Power kW 6.7 4.4 5.7 Rotation Speed rpm 3600 3600 2600 Travel Characteristics Speed km/h 0 – 3.8 Theoretical Climbing Ability % 30 Braking Travel Mode Bidirectional Hydraulic, Chain Drive Excitation System Vibrating Steel Wheel Front + Rear Vibration Frequency Hz 70 Vibration Amplitude mm 0.6 Exciting Force kN 20 Water Spraying System Form Gravity Water Spraying Gravity Water Spraying n/a Capacity Fuel Capacity L 5.9 2.7 6.5 Lubricating Oil Capacity L 1.1 1.1 2 Hydraulic Tank Capacity L 18 20 n/a Water Tank Capacity L 20 20 n/a Not sure which roller type fits your job? Our guide to single drum and double drum rollers explains which roller suits which layer and when the vibration should be off. The rest of our compaction range is on the road roller page.

Model		BM50	BM50C	BM50S
Weight
Operating Mass	kg	540	540	570
Static Load	N/cm	45
Dimensions
Overall Width	mm	780
Overall Length (Handle Flat)	mm	2480
Overall Height (Handle Upright)	mm	1820
Packing Size	mm	16008501900
Steel Wheel Width	mm	600
Steel Wheel Diameter	mm	426
Start		Recoil Pull Start/Electric Start
Drive
Engine Brand		HONDA	Changfa/Changchai/KAMA	Changchai
Engine Model		GX270	178	R180
Engine Type		Gasoline, Four – stroke	Diesel, Four – stroke	Diesel, Evaporative Water Cooling
Number of Cylinders	pc	1	1	1
Output Power	kW	6.7	4.4	5.7
Rotation Speed	rpm	3600	3600	2600
Travel Characteristics
Speed	km/h	0 – 3.8
Theoretical Climbing Ability	%	30
Braking
Travel Mode		Bidirectional Hydraulic, Chain Drive
Excitation System
Vibrating Steel Wheel		Front + Rear
Vibration Frequency	Hz	70
Vibration Amplitude	mm	0.6
Exciting Force	kN	20
Water Spraying System
Form		Gravity Water Spraying	Gravity Water Spraying	n/a
Capacity
Fuel Capacity	L	5.9	2.7	6.5
Lubricating Oil Capacity	L	1.1	1.1	2
Hydraulic Tank Capacity	L	18	20	n/a
Water Tank Capacity	L	20	20	n/a
