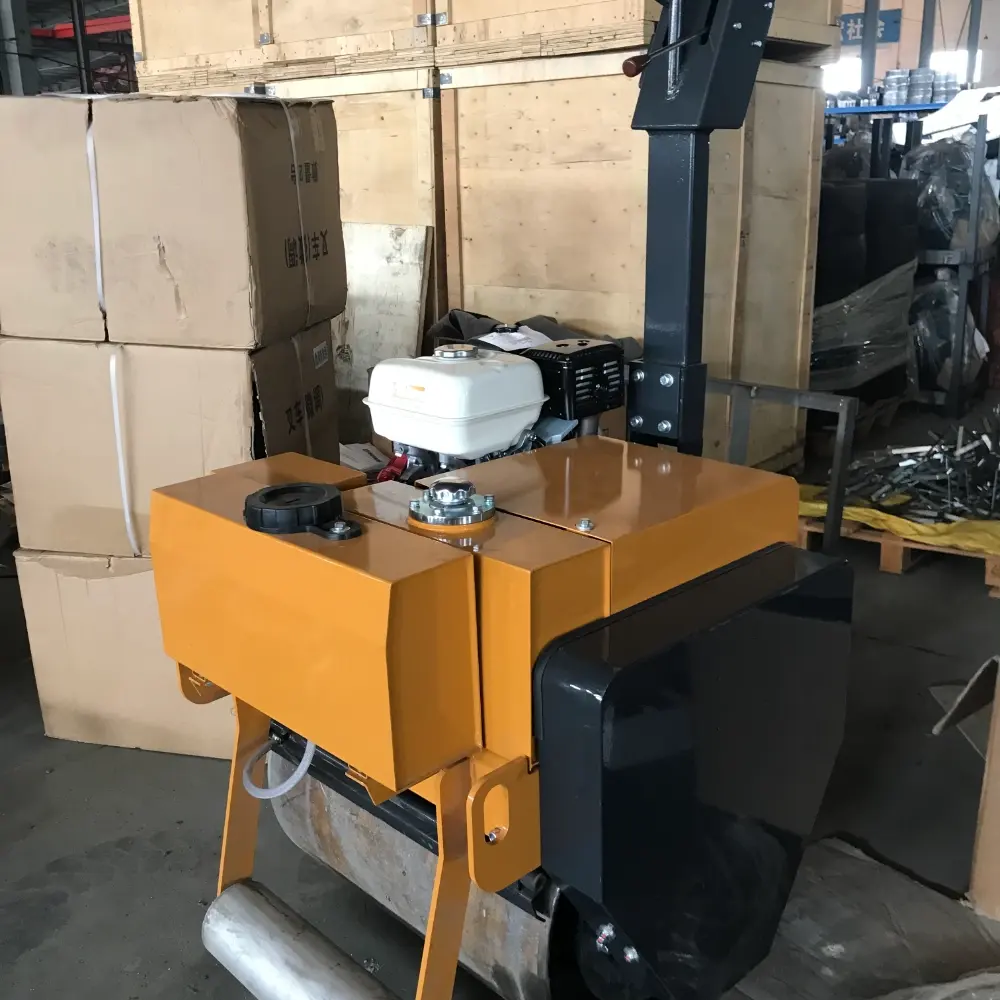

BM30 walk-behind single drum roller, product photo

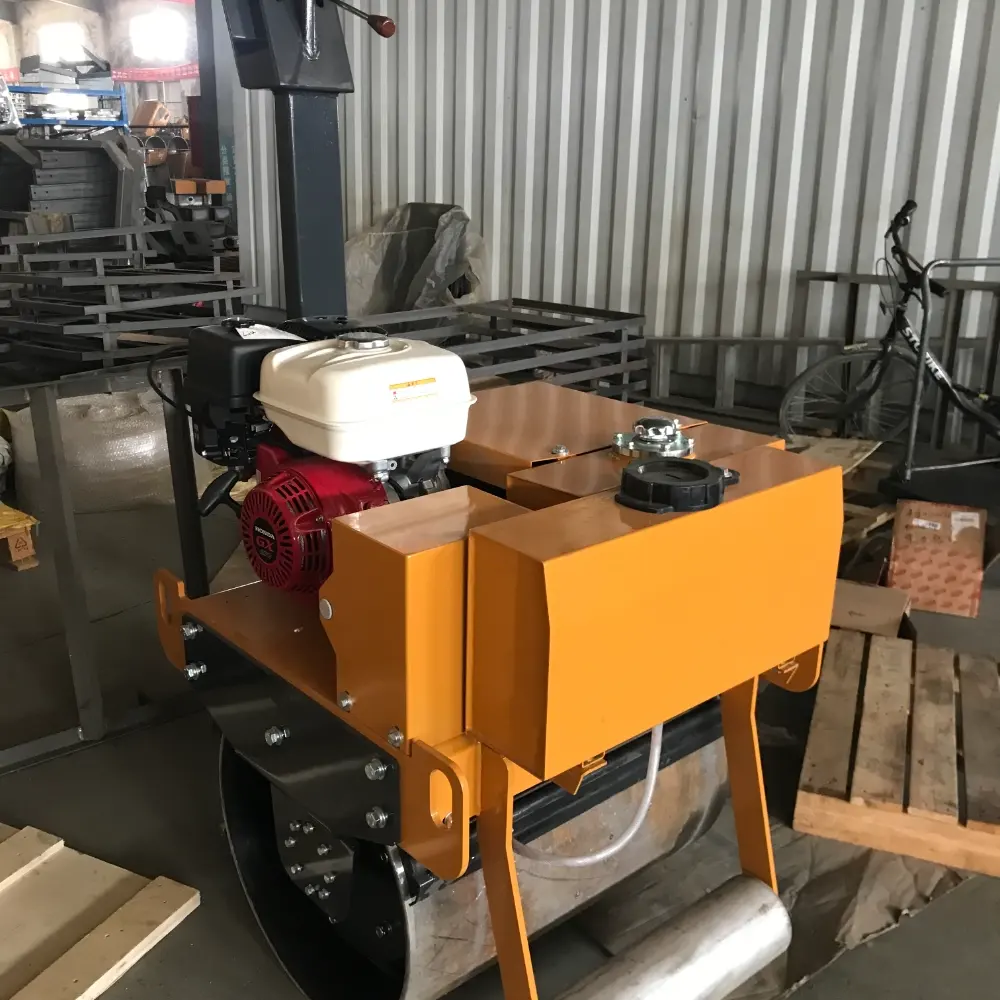

BM30 walk-behind single drum roller, front view in the workshop

BM30 Walk-Behind Single Drum Roller, 330 kg

Model	BM30
Type	Walk-behind single drum roller
Operating Mass	330 kg
Drum Width	600 mm
Engine	Honda GX160 petrol, 4.1 kW (diesel versions listed)
Vibration	70 Hz, 15 kN
Speed	0 to 3.8 km/h

Inquire Now

Description
Logistics & Stock

The BM30 is a walk-behind single drum roller weighing 330 kg, with one 600 mm vibrating drum and gravity water spray. It is offered with a Honda GX160 petrol engine or a single cylinder diesel (Changchai or Changfa CF170, KAMA 173F), as the table shows. For two vibrating drums see the BM50. Model BM30 BM30C Weight Operating Weight kg 330 Static Load N/cm 45 Dimensions Overall Width mm 780 Overall Length (Handle Flat) mm 1600 Overall Height (Handle Upright) mm 1060 Packing Size mm 10508501200 Steel Wheel Width mm 600 Steel Wheel Diameter mm 426 Start Recoil Pull Start, Electric Start Drive Engine Brand HONDA Changchai/Changfa KAMA Engine Model GX160 CF170 173F Engine Type Gasoline, Four – stroke Diesel, Four – stroke Air – cooled, Four – stroke Number of Cylinders pc 1 1 1 Output Power kW 4.1 3.1 3.7 Rotation Speed rpm 3600 3600 3600 Travel Characteristics Speed km/h 0 – 3.8 Theoretical Climbing Ability % 30 Braking Travel Mode Bidirectional Hydraulic, Chain Drive Excitation System Vibrating Steel Wheel Single Steel Wheel Vibration Frequency Hz 70 Vibration Amplitude mm 0.6 Exciting Force kN 15 Water Spraying System Form Gravity Water Spraying Capacity Fuel Capacity L 3.6 1.9 2.5 Lubricating Oil Capacity L 0.6 0.75 0.75 Hydraulic Tank Capacity L 15 12 12 Water Tank Capacity L 22 Not sure which roller type fits your job? Our guide to single drum and double drum rollers explains which roller suits which layer and when the vibration should be off. The rest of our compaction range is on the road roller page.

Model		BM30	BM30C
Weight
Operating Weight	kg	330
Static Load	N/cm	45
Dimensions
Overall Width	mm	780
Overall Length (Handle Flat)	mm	1600
Overall Height (Handle Upright)	mm	1060
Packing Size	mm	10508501200
Steel Wheel Width	mm	600
Steel Wheel Diameter	mm	426
Start		Recoil Pull Start, Electric Start
Drive
Engine Brand		HONDA	Changchai/Changfa	KAMA
Engine Model		GX160	CF170	173F
Engine Type		Gasoline, Four – stroke	Diesel, Four – stroke	Air – cooled, Four – stroke
Number of Cylinders	pc	1	1	1
Output Power	kW	4.1	3.1	3.7
Rotation Speed	rpm	3600	3600	3600
Travel Characteristics
Speed	km/h	0 – 3.8
Theoretical Climbing Ability	%	30
Braking
Travel Mode		Bidirectional Hydraulic, Chain Drive
Excitation System
Vibrating Steel Wheel		Single Steel Wheel
Vibration Frequency	Hz	70
Vibration Amplitude	mm	0.6
Exciting Force	kN	15
Water Spraying System
Form		Gravity Water Spraying
Capacity
Fuel Capacity	L	3.6	1.9	2.5
Lubricating Oil Capacity	L	0.6	0.75	0.75
Hydraulic Tank Capacity	L	15	12	12
Water Tank Capacity	L	22
