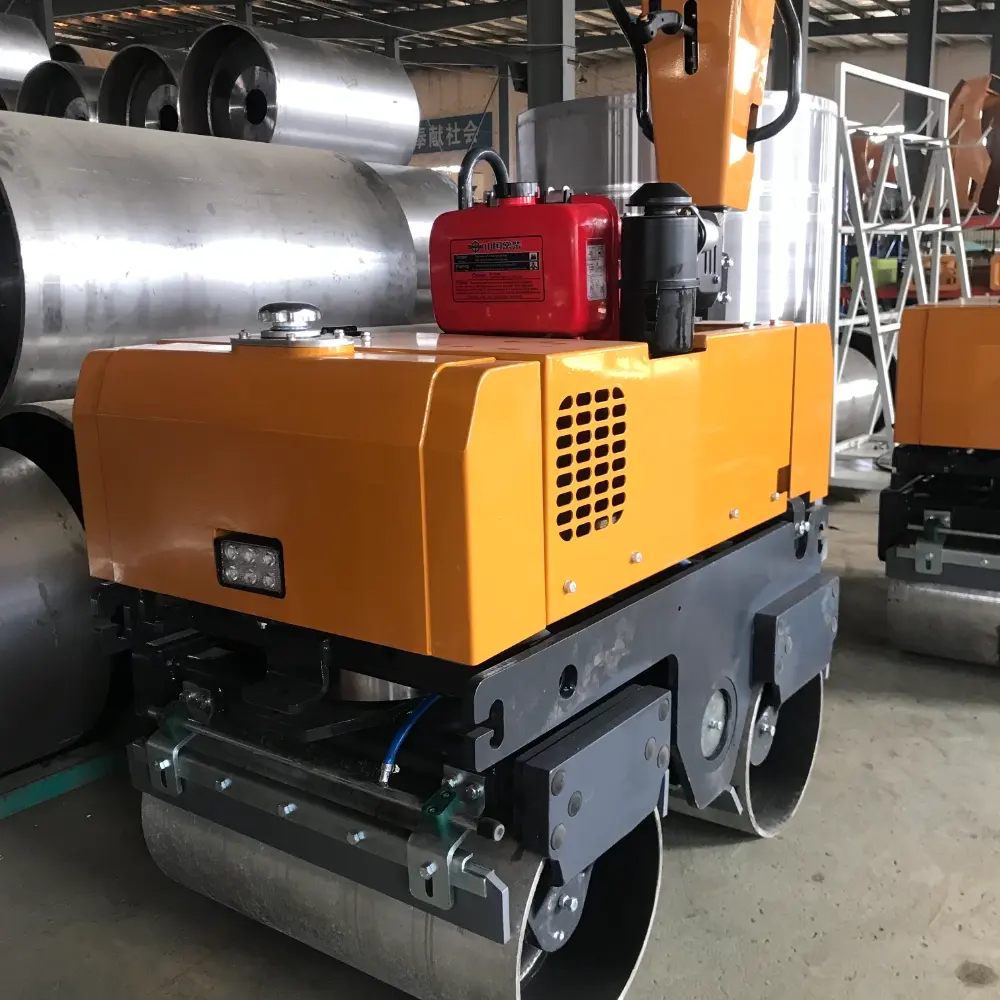

BM80 walk-behind double drum roller, product photo

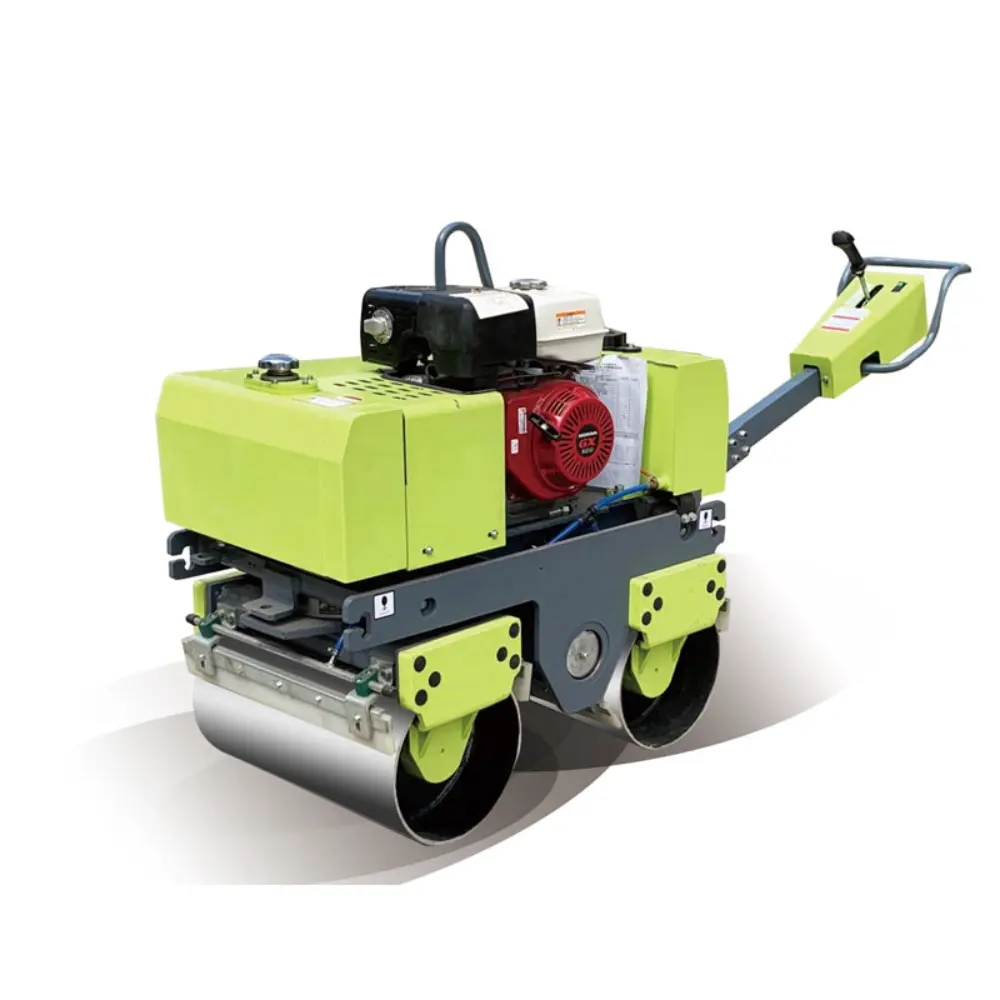

BM80 walk-behind roller in green and grey, product photo
BM80 walk-behind double drum roller in the workshop

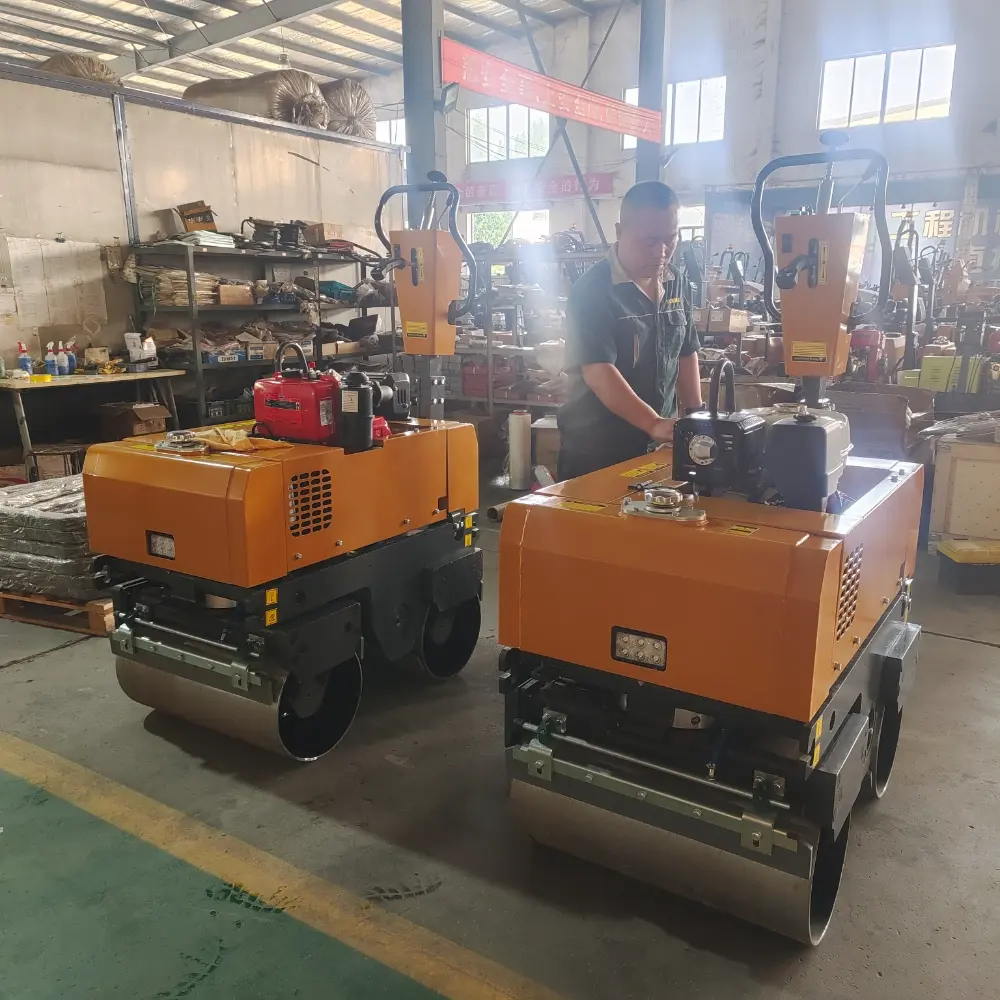

Two BM80 walk-behind rollers in the workshop
BM80 walk-behind double drum roller, product photo
BM80 walk-behind roller in green and grey, product photo
BM80 walk-behind double drum roller in the workshop
Two BM80 walk-behind rollers in the workshop

BM80 Walk-Behind Double Drum Roller, 820 kg

ModelBM80
TypeWalk-behind double drum roller
Operating Mass820 kg
Drum Width680 mm
EngineHonda GX390 petrol, 9.7 kW (diesel: BM80C, BM80S)
Vibration65 Hz, 20 kN, front and rear
Speed0 to 3.5 km/h

Share :

  • Description

  • Logistics & Stock

The BM80 is the larger walk-behind double drum roller in this range: 820 kg with 680 mm drums, front and rear vibration at 65 Hz, and hydraulic steering. The table lists the petrol BM80 with a Honda GX390 engine and the diesel BM80C (186F) and BM80S (RD90N-1). For a lighter machine see the BM50.

Technical ParametersUnitBM80
ModelBM80BM80CBM80S
Weight
Operating Masskg820830850
Static LoadN/cm58/6359/6461.5/65.5
Dimensions
Working Widthmm730
Overall Length (Guard Frame Tilted/Upright)mm2500/1800
Overall Height (Guard Frame Tilted/Upright)mm1140/1710
Outer Turning Radiusmmn/a
Steel Wheel Widthmm680
Steel Wheel Diametermm355
Wheelbasemm650
Drive
Engine BrandHONDAChangfa Changchai Fuzhou Jinfeiyu
Engine ModelGX390186FRD90N – 1
Engine TypeGasoline, Four – strokeDiesel, Four – strokeDiesel, Horizontal Water – cooled
Number of Cylinderspc111
Output PowerkW9.765.88
Rotation Speedrpm360036002400
Electrical EquipmentV12
Drive ModeVariable Piston Pump, Stepless Speed Change, Dual – wheel
Travel Characteristics
Speedkm/h0 – 3.5
Theoretical Climbing Ability%30
Braking
Service BrakeVariable Piston Pump
Steering
Steering ModeHydraulic Steering
Steering SystemHydraulic Support Disk
Excitation System
Vibrating Steel WheelFront + Rear
Drive FormMechanical Transmission
Vibration FrequencyHz6560
Vibration Amplitudemm0.5
Exciting ForcekN20
Water Spraying System
FormGravity Type Water Spraying
Capacity
Hydraulic Oil CapacityL28
Fuel CapacityL6.55.510
Water Tank CapacityL30

Not sure which roller type fits your job? Our guide to single drum and double drum rollers explains which roller suits which layer and when the vibration should be off. The rest of our compaction range is on the road roller page.


Full details

FAQ

  • 01

    What should I confirm before buying a used machine?

    Confirm the exact model and identification details, available photos or videos, included attachments and the condition information available for that machine. Good cosmetic appearance or a low displayed hour reading alone does not establish mechanical condition. Agree any further checks and the written equipment description before payment.

  • 02

    Can I request photos, videos or an inspection?

    Contact HCQ with the listing or model you are considering and ask which current photos, operating videos or inspection information are available. If you want an additional inspection, discuss its scope and arrangements before ordering. Do not assume that every machine listing includes an independent inspection report.

  • 03

    How is the delivery schedule confirmed?

    Delivery timing depends on machine availability, agreed preparation, payment confirmation, loading arrangements and the shipping route. Ask HCQ for an order-specific schedule. Dispatch from China and arrival at the destination are different dates; confirm both where applicable.

  • 04

    What is your payment term?

    Our standard payment terms and conditions are as follows: 1. 30% deposit by T/T to confirm the order 2. 70% balance by T/T before shipment
