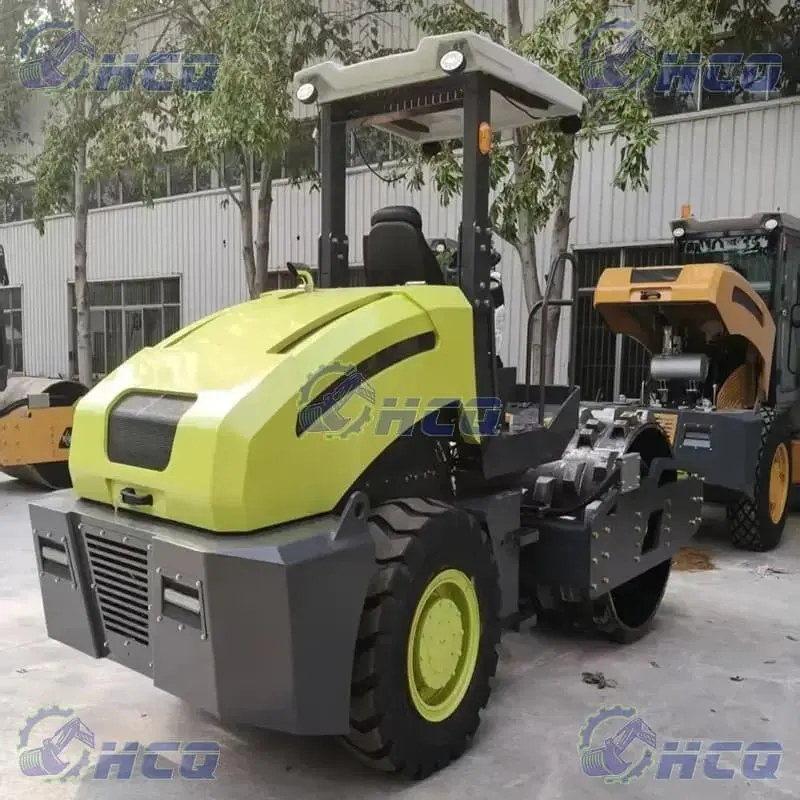

    6000S padfoot roller with canopy, product photo

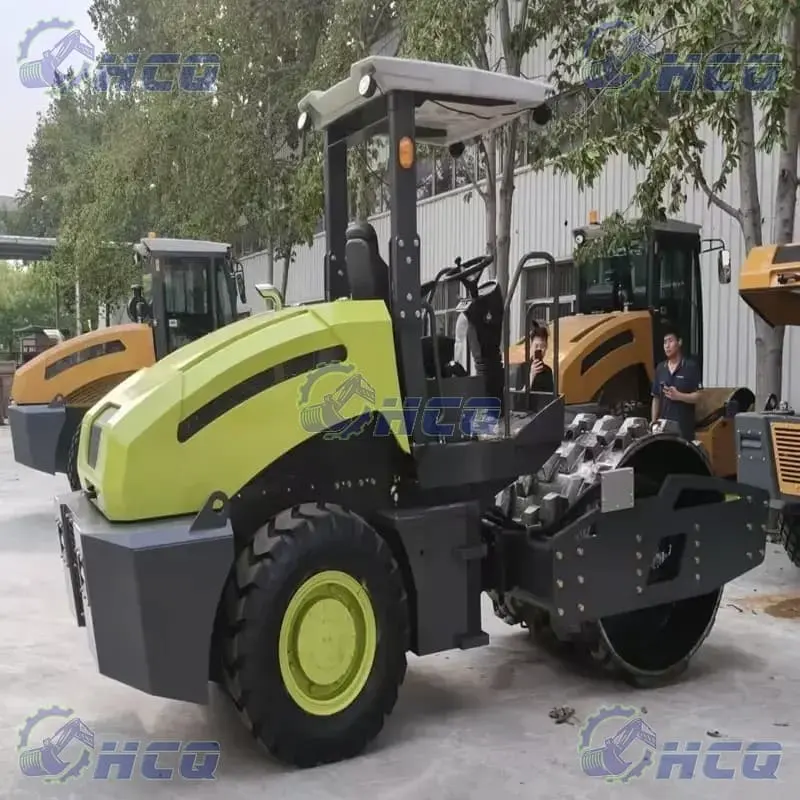

    6000S padfoot roller, front three-quarter view

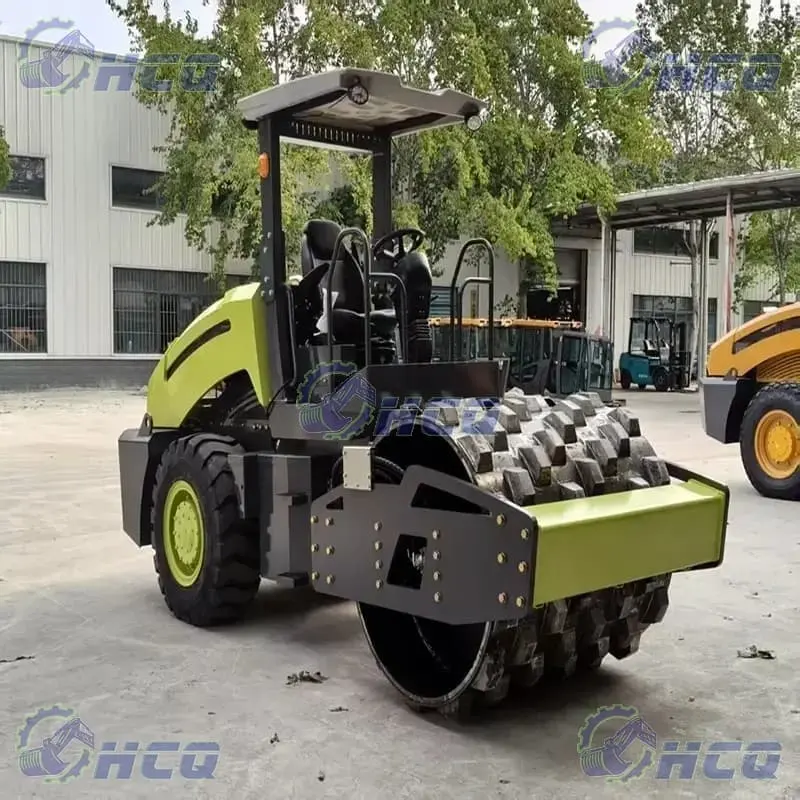

    Padfoot drum of the 6000S sheepsfoot roller, front view
    6000S padfoot roller with canopy, side view

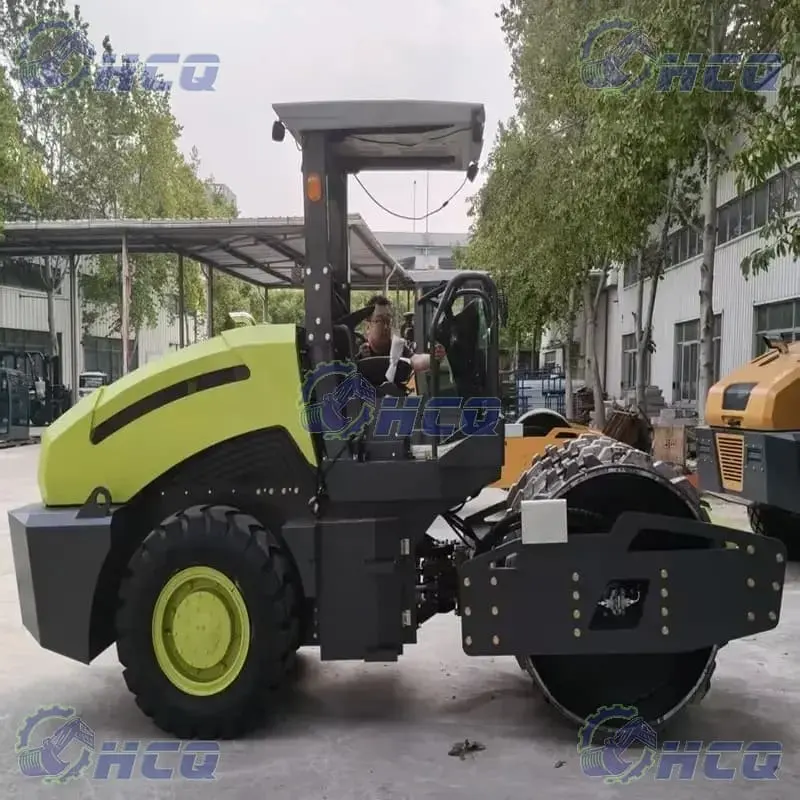

    6000S ride-on padfoot roller, side view of the padfoot drum
    6000S padfoot roller with canopy, product photo
    6000S padfoot roller, front three-quarter view
    Padfoot drum of the 6000S sheepsfoot roller, front view
    6000S padfoot roller with canopy, side view
    6000S ride-on padfoot roller, side view of the padfoot drum

    6000S Padfoot Roller, 5.8 Ton

    Model6000S padfoot roller
    TypeRide-on single drum roller with padfoot drum
    Operating Mass5,800 kg
    Drum Width1,550 mm
    EngineChangchai 4G33TC, 68 kW
    SteeringArticulated
    LocationHefei, Anhui, China

    Inquire Now

    Contact Us

    Share :

    • Description

    • Logistics & Stock

    The 6000S padfoot roller, also called a sheepsfoot roller, is the padfoot version of the BM6000S: a 5.8 ton ride-on single drum roller whose front drum carries rows of pads for compacting clay and other cohesive soil. It uses a Changchai 4G33TC diesel rated 68 kW, with articulated steering and rubber tyres at the rear.

    Specifications

    Brand HCQ Model 6000S padfoot roller
    Operating Mass 5,800 kg Fuel Tank 95 l
    Engine Changchai 4G33TC-93G412E Engine Type Diesel, in-line, water cooled, 4 cylinders
    Output Power 68 kW Overall Length, Frame Up 4,550 mm
    Overall Height, Frame Up 2,725 mm Turning Radius 4,590 mm
    Drum Width 1,550 mm Drum Diameter 1,150 mm
    Wheelbase 2,416 mm Drive Hydraulic motor
    Steering Articulated, hydraulic cylinder Vibrating Drum Front
    Tyre Size 1,075 mm, rubber Gradeability 30%
    Location Hefei, Anhui, China

    The FHWA geotechnical manual lists sheepsfoot or padfoot rollers as the first choice for high and low plasticity clays and silts. Our guide to single drum and double drum rollers explains when a padfoot drum is the right choice and when a smooth drum is. The rest of our compaction range is on the road roller page.

    Photos

    6000S ride-on padfoot roller, side view of the padfoot drum
    6000S padfoot roller with canopy, side view
    6000S padfoot roller, front three-quarter view
    Padfoot drum of the 6000S sheepsfoot roller, front view



    Full details

    FAQ

    • 01

      Why should I choose you?

      Firstly, we choose good condition and less hour used original machines for customers. Secondly, we are available for the third party to inspect.Thirdly, all machinery is available for your final inspection on site or live video call.Last, we also provide pre-sale /after-sale service and long-term spare parts support.

    • 02

      How do you ensure the quality of your products?

      Hua Chunqiang has a comprehensive and strict quality inspection process and regular maintenance, you can choose the way of inspection before shipment, or seek the help of a third-party verification company.

    • 03

      What is your delivery time?

      Huachunqiang has an independent logistics system to improve freight efficiency and shorten delivery time. Delivery time (for most products, it is between 7 and 15 days. If you have special requirements, the transportation time can be reasonably extended).

    • 04

      What is your payment term?

      Our standard payment terms and conditions are as follows:
      1. 30% deposit by T/T to confirm the order
      2. 70% balance by T/T before shipment
