Cat 320 vs Cat 323 Used Excavator: Specs and Which One to Buy
Release time: 2026-06-19
On every matching pair of Cat documents we checked for the Next Generation 320 and 323, from the 2017 spec sheets to today’s Cat pages, the two have the same rated power. The difference is weight. On Cat’s Stage IV spec sheets, the 323 weighs 23,700 kg against 21,600 kg and carries a 5.4 t counterweight against 4.2 t, and Cat says it has “the highest lift capacity in the line-up”. Dig depth is about 6.7 m on both. Engines vary by emission level.
Last reviewed: 9 October 2026. Specs checked against Cat spec sheets. Prepared by HCQ Machinery’s export team.

Cat 320 vs 323 excavator specs side by side
Sources: Cat spec sheets hosted by Peterson Cat, a Cat dealer: 320, form AEXQ2214 (09-2017), and 323, form AEXQ2212 (09-2017). Weights are for the build on each sheet: reach boom, 2.9 m stick, 1.19 m³ bucket (GD on the 320, HD on the 323) and 600 mm shoes.
| 320 | 323 | |
|---|---|---|
| Emission level on the sheet | EU Stage IV | U.S. EPA Tier 4 Final and EU Stage IV |
| Engine model | C4.4 ACERT | C7.1 ACERT |
| Net power (ISO 9249) | 121 kW (162 hp) | 121 kW (162 hp) |
| Operating weight | 21,600 kg | 23,700 kg |
| Counterweight | 4.2 t (4.7 t listed for the Super Long Reach boom) | 5.4 t |
| Ground pressure, 600 mm shoes | 44.9 kPa | 49.3 kPa |
| Max digging depth (2.9 m stick) | 6,720 mm | 6,730 mm |
| Track length (to center of rollers) / gauge | 3,650 / 2,380 mm | 3,650 / 2,380 mm |
| Max implement flow | 429 L/min (2 pumps) | 429 L/min (2 pumps) |
What the table shows: the same rated power, undercarriage size and pump flow, and nearly the same dig depth. The 323 adds about 2.1 t of operating weight and 1.2 t of counterweight, and its ground pressure is higher. Cat’s family brochure (form AEXQ2338-01) describes the 323 as having “the highest lift capacity in the line-up” of the 320 GC, 320 and 323.
Is the Cat 323 excavator more powerful than the 320?
Not on the Next Generation models. In each matching pair of Cat documents below, both machines have the same rated power. We have not checked older D series pairs such as the 320D2 and 323D2. What you pay for in a 323 is weight and counterweight. That buys lift capacity and stability at reach, and it costs you in transport weight and ground pressure.
Sources: the Cat spec sheets, brochure and product pages linked in the Source column, as checked in October 2026.
| Matching pair of Cat documents | 320 | 323 | Weight gap | Source |
|---|---|---|---|---|
| Stage IV / Tier 4 Final spec sheets | 121 kW, 21,600 kg | 121 kW, 23,700 kg | 2,100 kg | petersoncat.com (2) |
| Family brochure AEXQ2338-01 (North America / Europe) | 121 kW, 22,500 / 21,900 kg | 121 kW, 25,100 / 24,400 kg | 2,600 / 2,500 kg | hawthornecat.com |
| Tier 3 equivalent, current Cat pages | 117 kW, 21,300 kg | 117 kW, 22,900 kg | 1,600 kg | cat.com (2) |
| Tier 4 Final / Stage V, current Cat pages | 128.5 kW, 22,600 kg | 128.5 kW, 25,000 kg | 2,400 kg | cat.com (2) |
Specs by generation and emission level
Specs change with the engine’s emission level, the region and the build. Check the serial plate and ask which emission level a used machine meets.
For what DPF, DEF and regeneration mean on a used Tier 4 machine, see our guide to Tier 3 vs Tier 4 used excavators.
| Model and emission level (Cat wording) | Net power | Operating weight | Max digging depth | Engine model | Source |
|---|---|---|---|---|---|
| 320D2 / 320D2 L (Tier 3, Stage IIIA equivalent) | 109 kW | 21,100-22,300 kg | 6,720 mm | C7.1 | trakindo.co.id |
| 320, current (Tier 3 equivalent: Brazil MAR-1) | 117 kW | 21,300 kg | 6,720 mm | C7.1 | cat.com |
| 320, current (Tier 4 Final / Stage V) | 128.5 kW | 22,600 kg | 6,720 mm | C4.4 | cat.com |
| 320 GC (Tier 3 / Stage IIIA equivalent) | 107 kW | 20,400 kg | 6,630 mm | C4.4 | cat.com |
| 323, current (Tier 3 / Stage IIIA equivalent) | 117 kW | 22,900 kg | 6,730 mm | C7.1 | cat.com |
| 323, current (Tier 4 Final / Stage V) | 128.5 kW | 25,000 kg | 6,730 mm | C7.1 | cat.com |
| 323D3 (Tier 2 / Stage II equivalent) | 106 kW | 22,800 kg | 6,300 mm (2.5 m stick) | C7.1 | AEXJ0072-01 (PDF) |
We could not find a Cat spec sheet for the 323D2L, so it is not in the table. Dig depth also depends on the stick: on the same Cat Stage IV sheets, a 2.5 m stick gives 6,300 mm on the 320 and 6,310 mm on the 323.

Which one should you buy?
When the 320 is enough
- Your work is general: earthmoving, trenching and site preparation.
- You move the machine often, so a lighter transport load matters.
- Your heaviest regular lift fits the lift chart of the 320 model, for the boom and stick on the machine you are offered.
When the 323 earns its extra weight
- You often lift pipe, rock or heavy attachments far from the machine. Cat’s brochure gives the 323 the highest lift capacity of the 320 GC, 320 and 323.
- You want more stability when lifting far from the machine, and can accept higher ground pressure.
- Your trailer and the roads you use can carry an extra 1.6 to 2.6 t, the range of weight differences in the Cat documents above.
If you are unsure, take the heaviest lift you make each week and check it against the lift chart for the exact boom and stick on the machine. Then compare the asking prices of the actual machines with our China FOB price bands.
Still choosing a brand? Read our comparison of Cat vs Komatsu vs Hitachi used excavators.
Comparing a 320 with a Komatsu instead? See Cat 320 vs Komatsu PC200.
Used Cat 320 vs 323: what to check before you buy
A used excavator can look clean and still hide expensive problems. Whichever model you pick, how the machine was used, maintained and repaired matters more than the badge.
Check the hour meter and service history
Do not trust the hour meter by itself. A higher-hour machine with complete service records can be a better buy than a lower-hour machine with no history. For what counts as high hours, see how many hours is a lot for an excavator.
A seller’s “90% new” label is not a measurement either. See what used excavator condition ratings mean.
Look for these records:
- regular oil change records
- hydraulic filter changes
- documented component repairs
- consistent ownership history
Inspect the hydraulics, swing, undercarriage and engine
Hydraulics: watch how smoothly the boom and arm move. Jerky motion is a warning sign.
Swing system: listen for roughness, clunking or hesitation.
Undercarriage: check track wear, sprockets, rollers and track sag.
Engine: a cold start tells you a lot. Clean starts are a good sign. Rough starts, heavy smoke or hesitation are not.
For what to measure on the tracks, see our undercarriage wear checks.
For the common faults to check on a used 320, see common problems on a used Cat 320.
Look for signs of hidden repair work
Fresh paint in the wrong places, mismatched hoses, new bolts on old parts or cleanup that looks too neat can all be warning signs. A machine that looks too refreshed deserves a closer look.
Ask for fuel and service records
We have no measured figures that compare fuel use or resale value for a used 320 and 323, so we do not rank them on either. Ask the seller for fuel and service records, or telematics data where the machine has it.

Used Cat 320 and 323 excavators listed at HCQ Machinery
Two machines with the same model name can differ in condition, maintenance history and how they were used, so ask for the serial number, meter hours and a live video of the machine before you compare prices. HCQ Machinery has listing pages for these models:

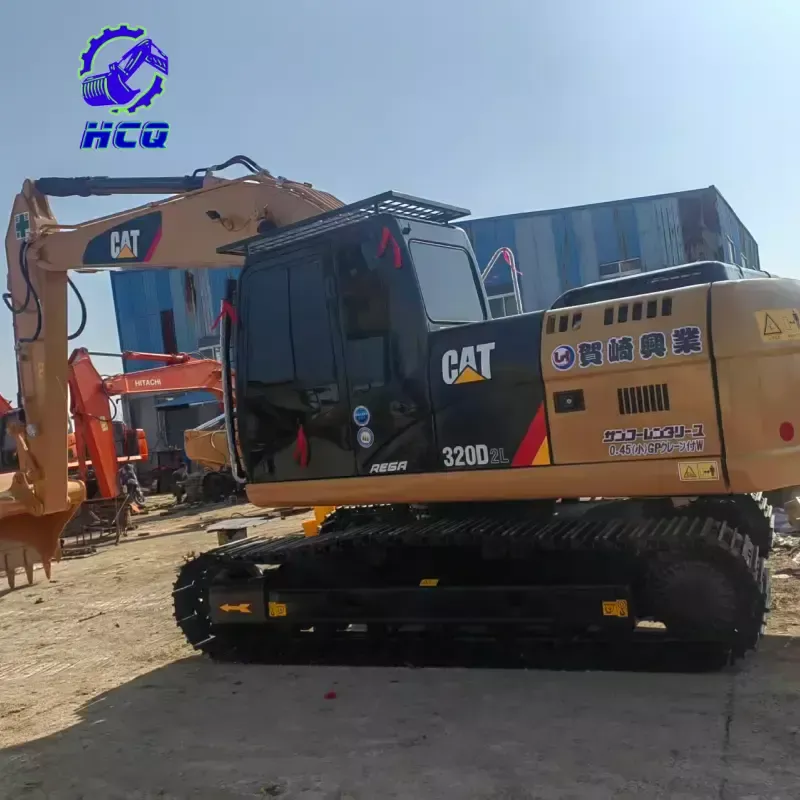

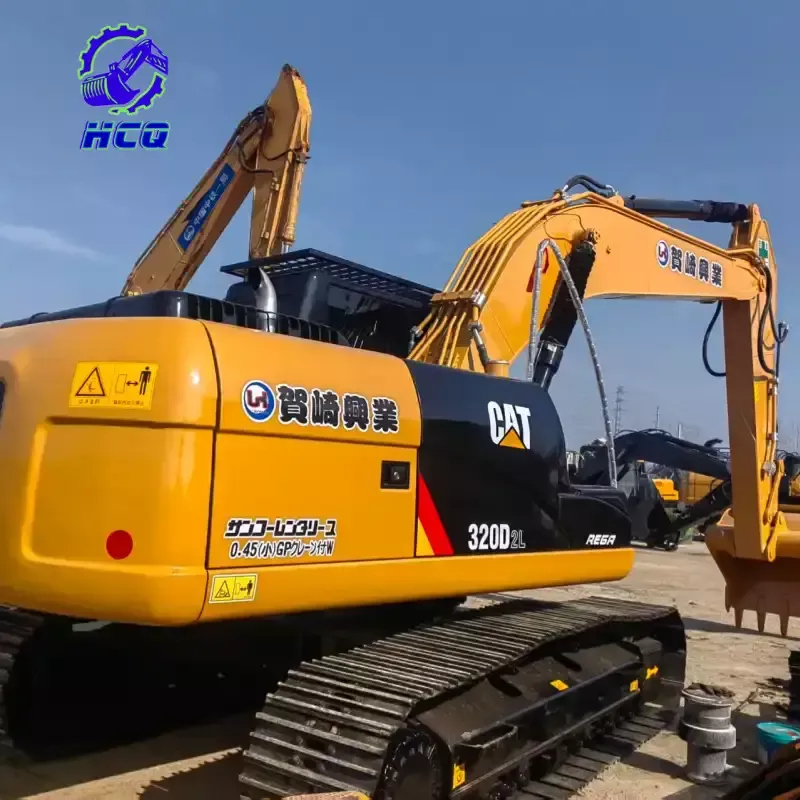

- Used Caterpillar 320D2L excavator

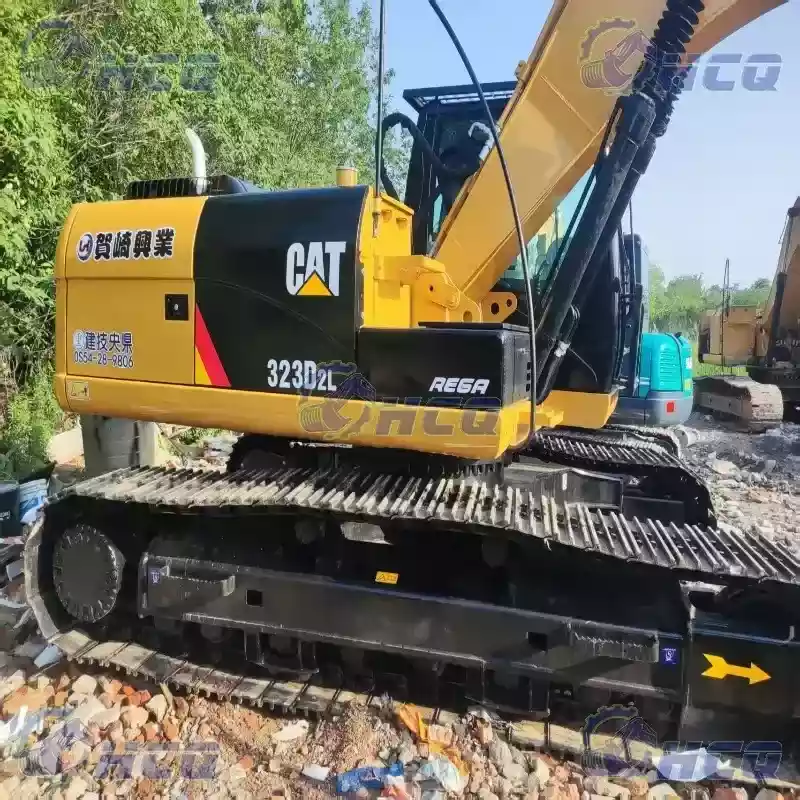

- Used Caterpillar 323D2L excavator
- Used Caterpillar 323GC excavator
- Used Caterpillar 323D excavator
Frequently asked questions
How much does a Cat 323 weigh?
From 22,800 kg to 25,100 kg on the Cat documents we checked, depending on generation, emission level and region: 22,800 kg for the 323D3, 22,900 kg for the current Tier 3 equivalent 323, 23,700 kg on the Stage IV / Tier 4 Final spec sheet, 24,400 kg (Europe) and 25,100 kg (North America) in Cat’s family brochure, and 25,000 kg for the current Tier 4 Final / Stage V 323.
How deep can a Cat 320 dig?
About 6.7 m (6,720 mm) maximum: on the 320D2 page from Trakindo (a Cat dealer), on Cat’s Stage IV 320 sheet with a 2.9 m stick, and on the current Tier 3 equivalent and Tier 4 Final / Stage V 320 pages. With a 2.5 m stick the Stage IV sheet gives 6,300 mm. The 320 GC is listed at 6,630 mm.
Do the 320 and 323 use the same engine?
It depends on the emission level. On the Stage IV / Tier 4 Final sheets and the current Tier 4 pages, the 320 uses the Cat C4.4 and the 323 the Cat C7.1. The 320D2 and the current Tier 3 equivalent 320 and 323 use the C7.1. Check the engine plate on a used machine.
Is the 320 GC the same as the 320?
No. On Cat’s Tier 3 equivalent pages the 320 GC is rated at 107 kW and 20,400 kg with a C4.4 engine, against 117 kW and 21,300 kg with a C7.1 engine for the 320.
Sources
- Caterpillar, 320 Hydraulic Excavator specifications, form AEXQ2214 (09-2017), PDF hosted by Peterson Cat
- Caterpillar, 323 Hydraulic Excavator specifications, form AEXQ2212 (09-2017), PDF hosted by Peterson Cat
- Caterpillar, 320, 323 and 320 GC hydraulic excavator family brochure, form AEXQ2338-01, PDF hosted by Hawthorne Cat
- Caterpillar product pages: 320 (Tier 3 equivalent), 320 (Tier 4 Final / Stage V), 320 GC, 323 (Tier 3 equivalent), 323 (Tier 4 Final / Stage V), as checked in October 2026
- Trakindo, a Caterpillar dealer in Indonesia: 320D2 / 320D2 L specifications
- Caterpillar, 323D3 Hydraulic Excavator specifications, form AEXJ0072-01 (09-2018), PDF hosted by Lectura Specs
