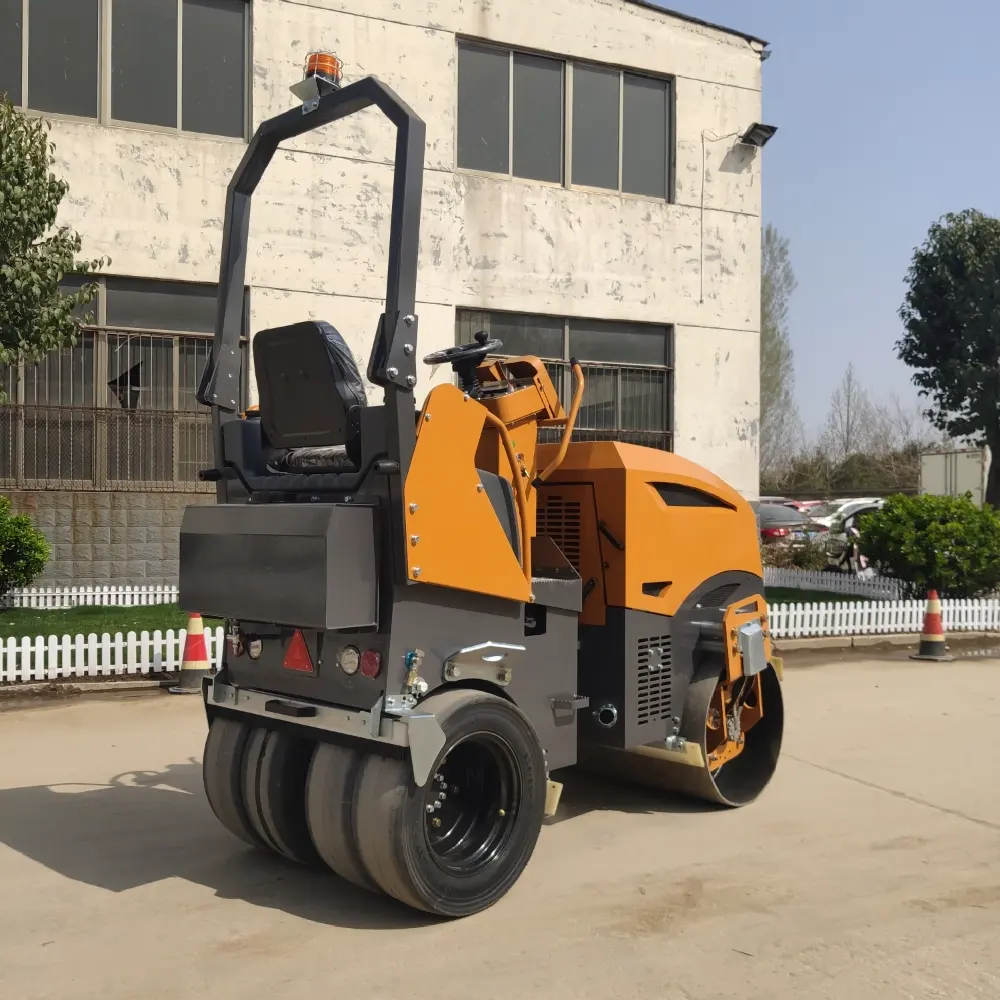

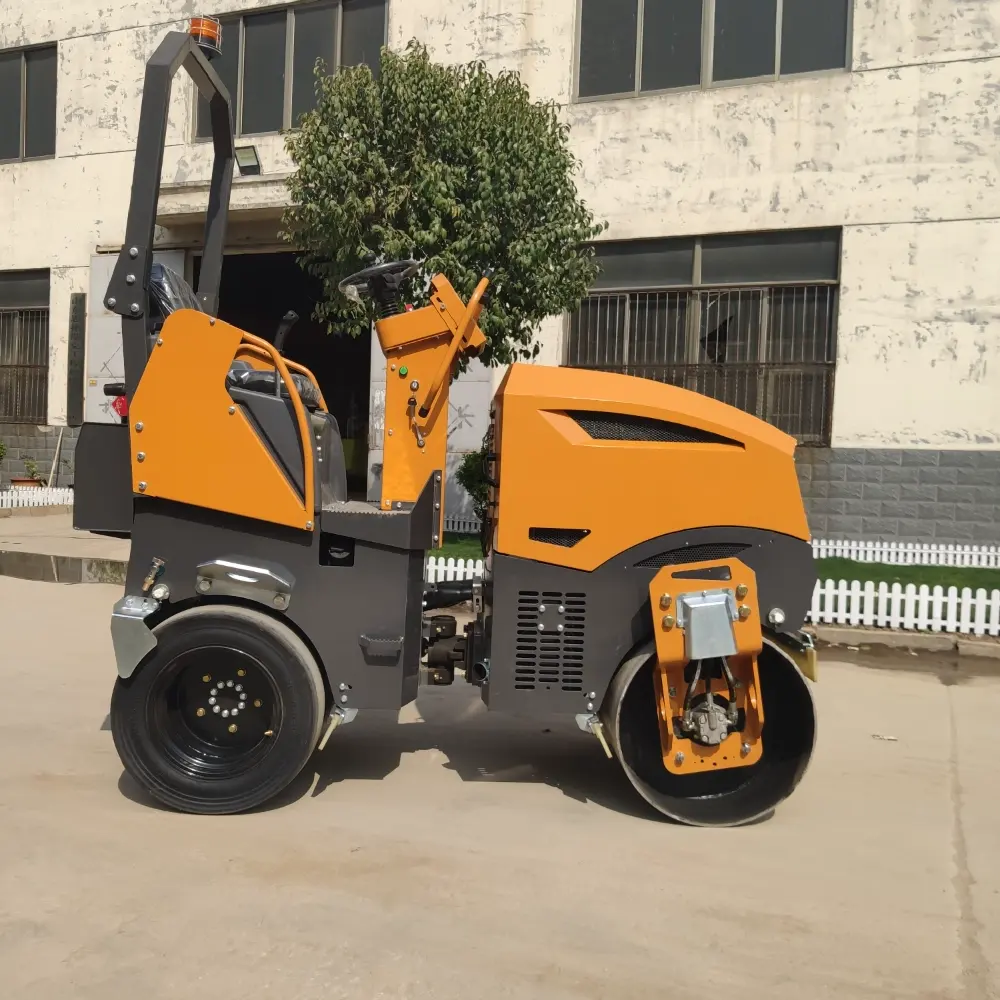

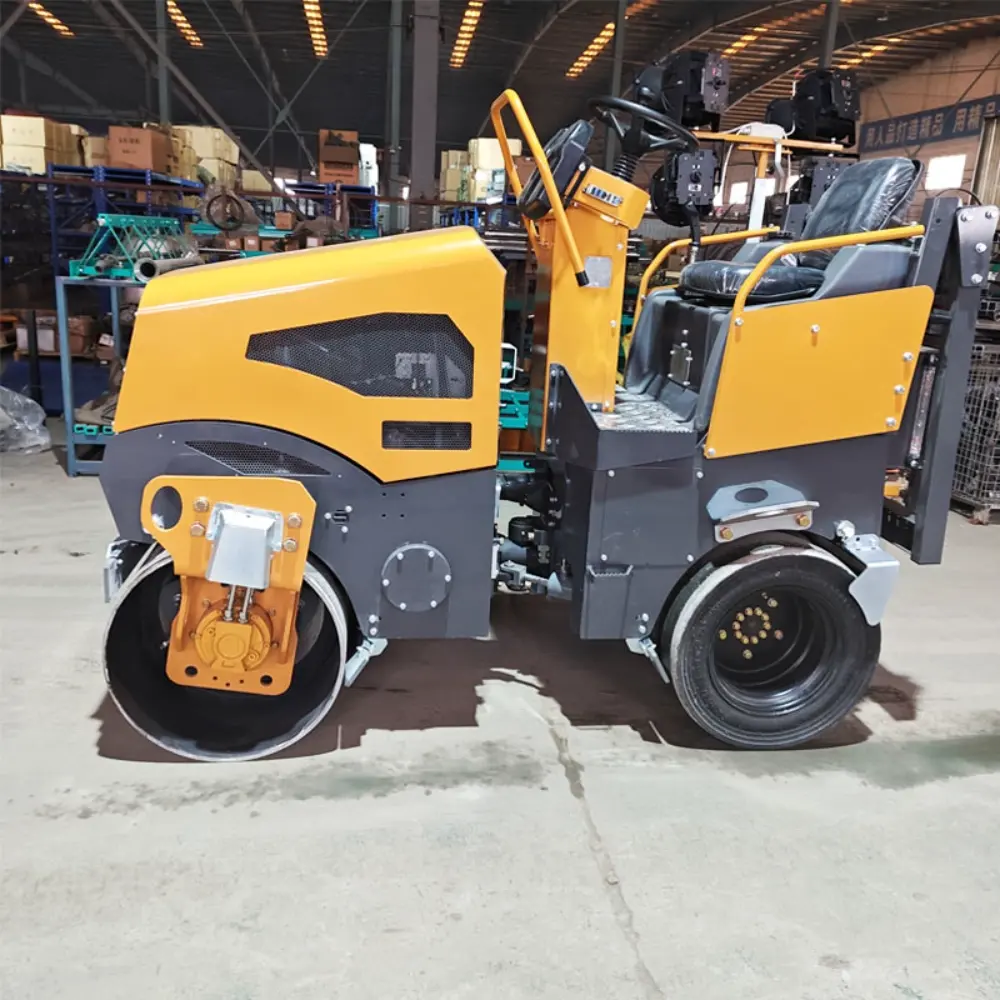

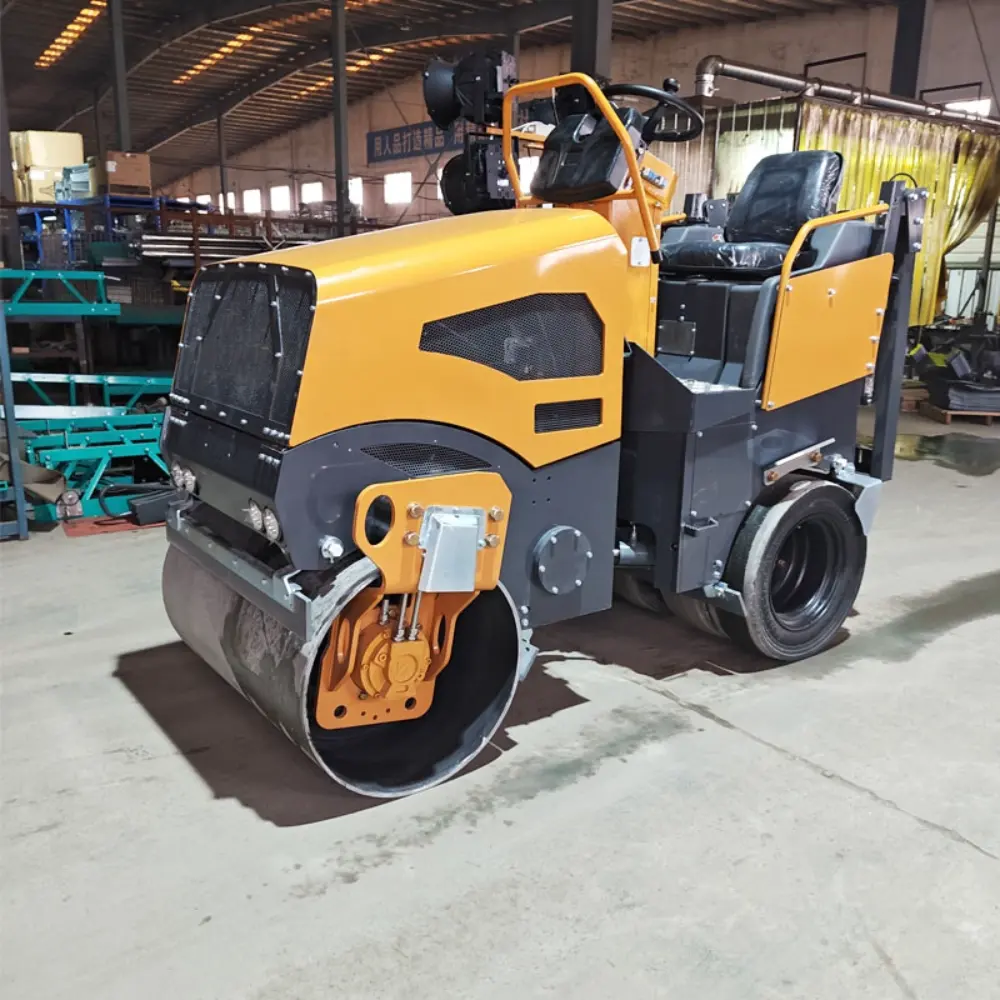

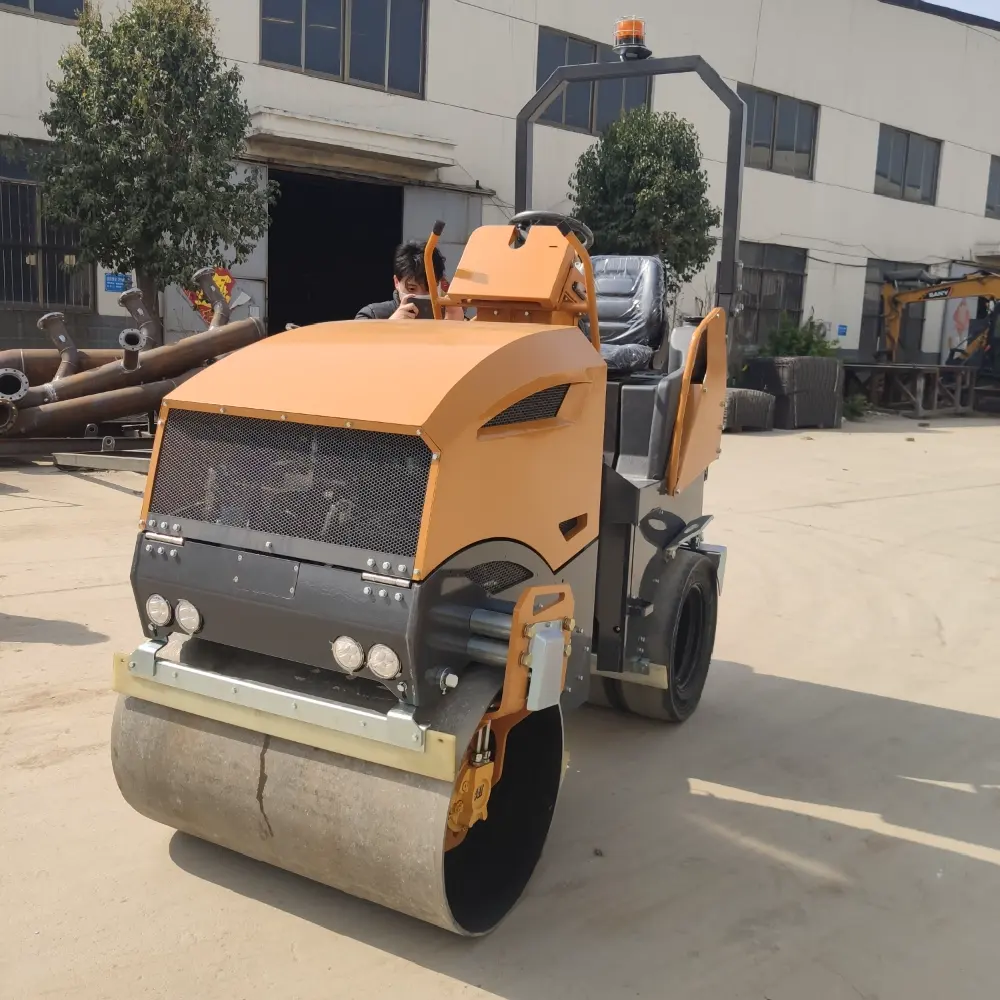

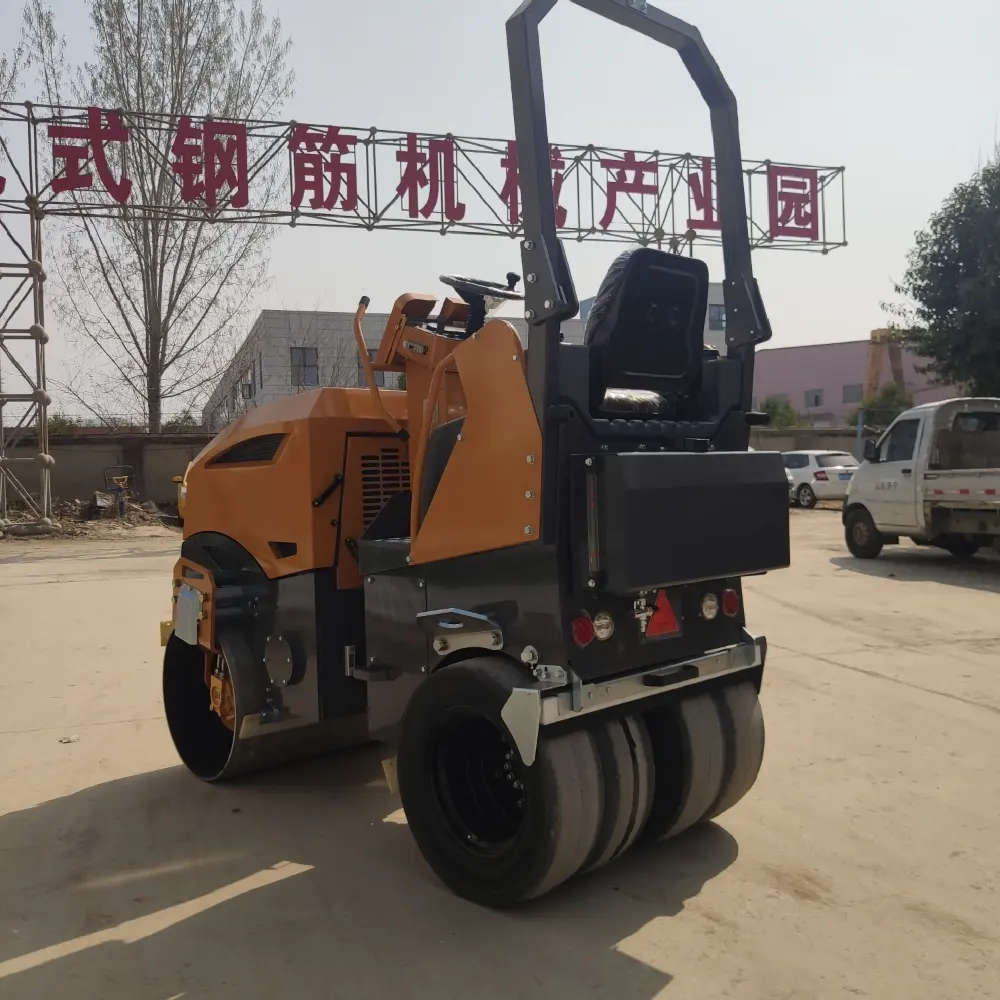

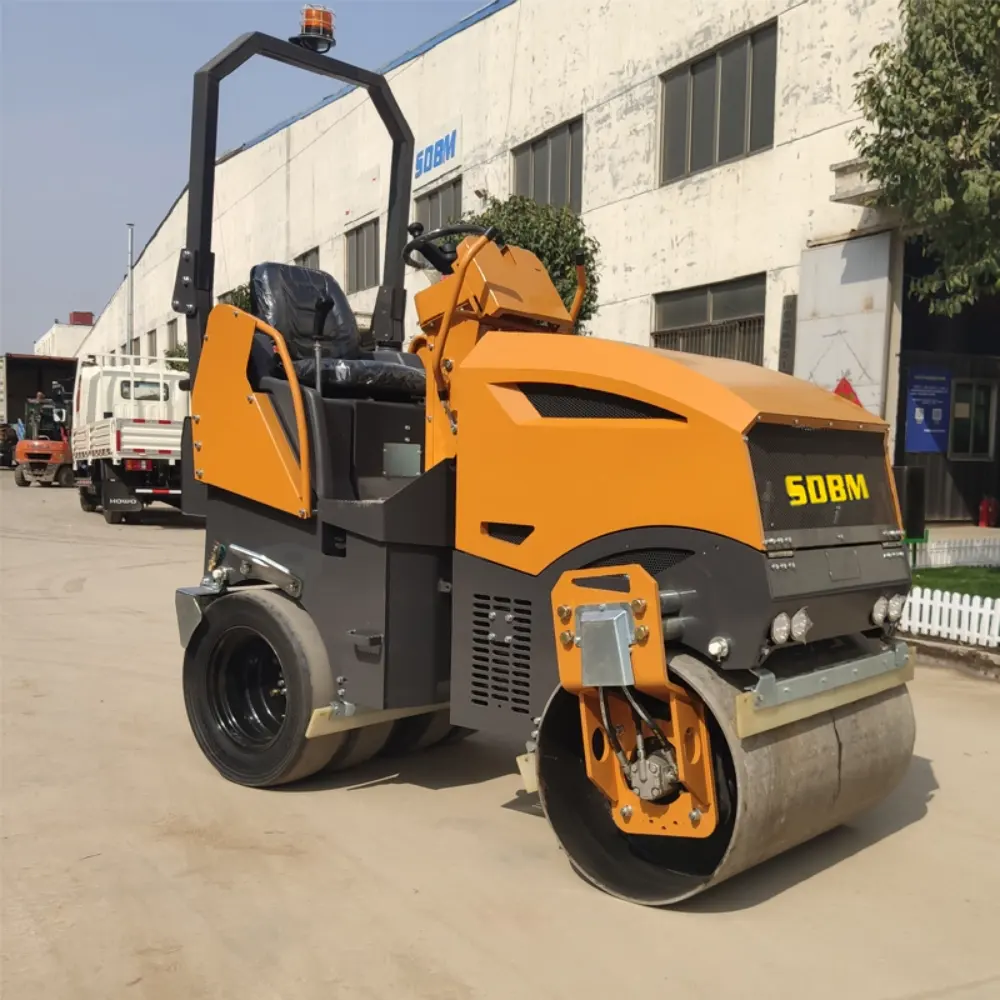

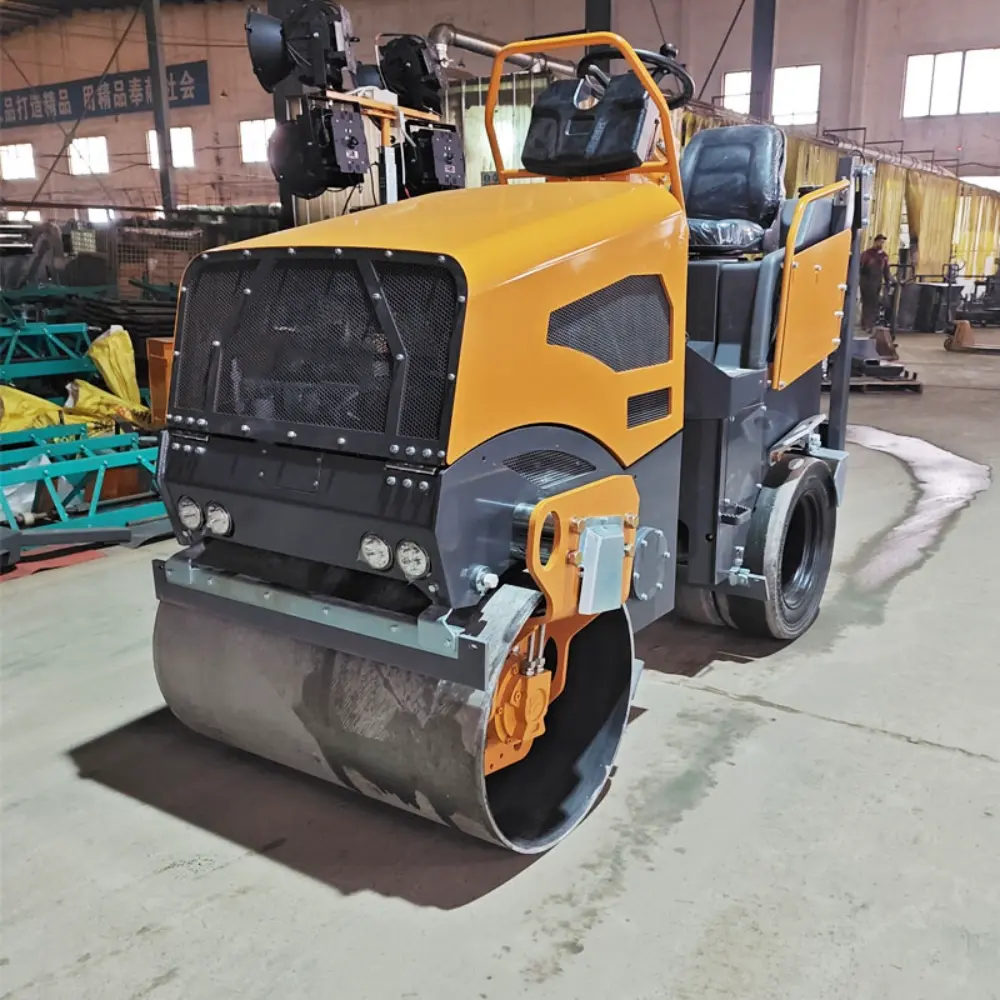

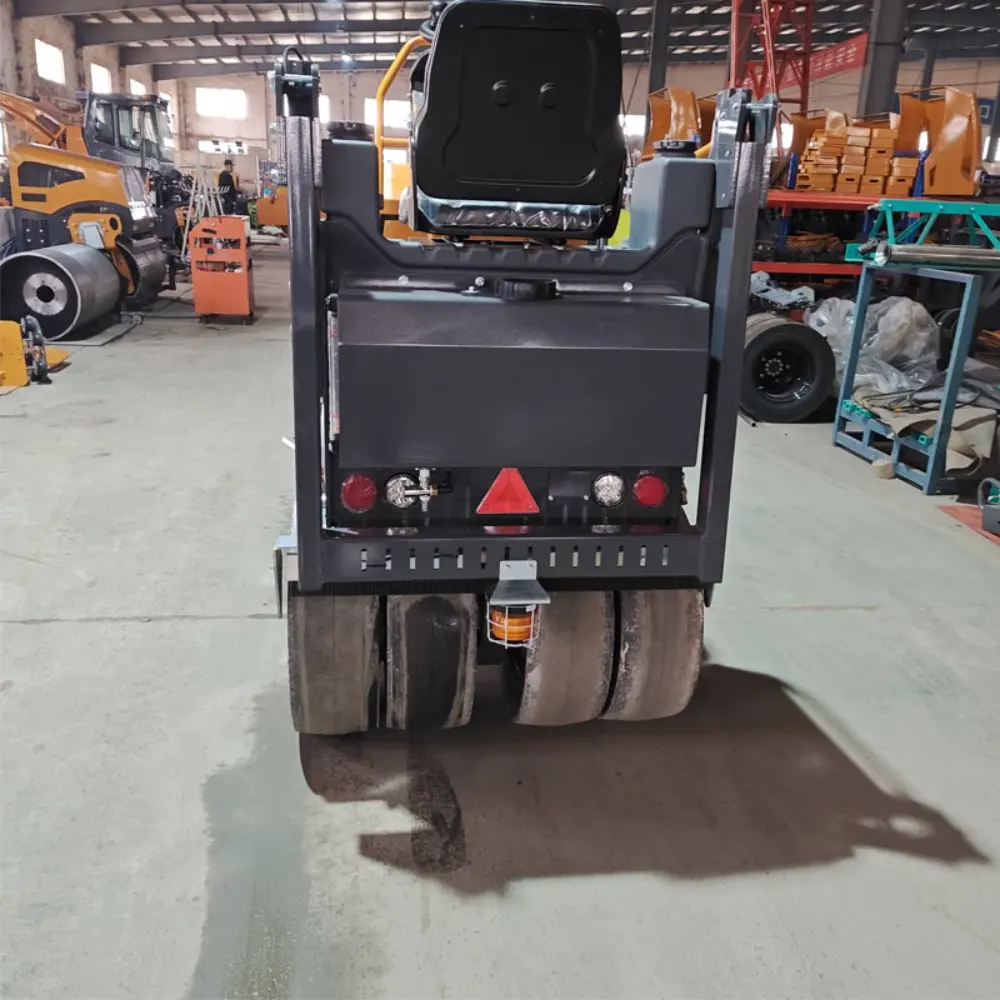

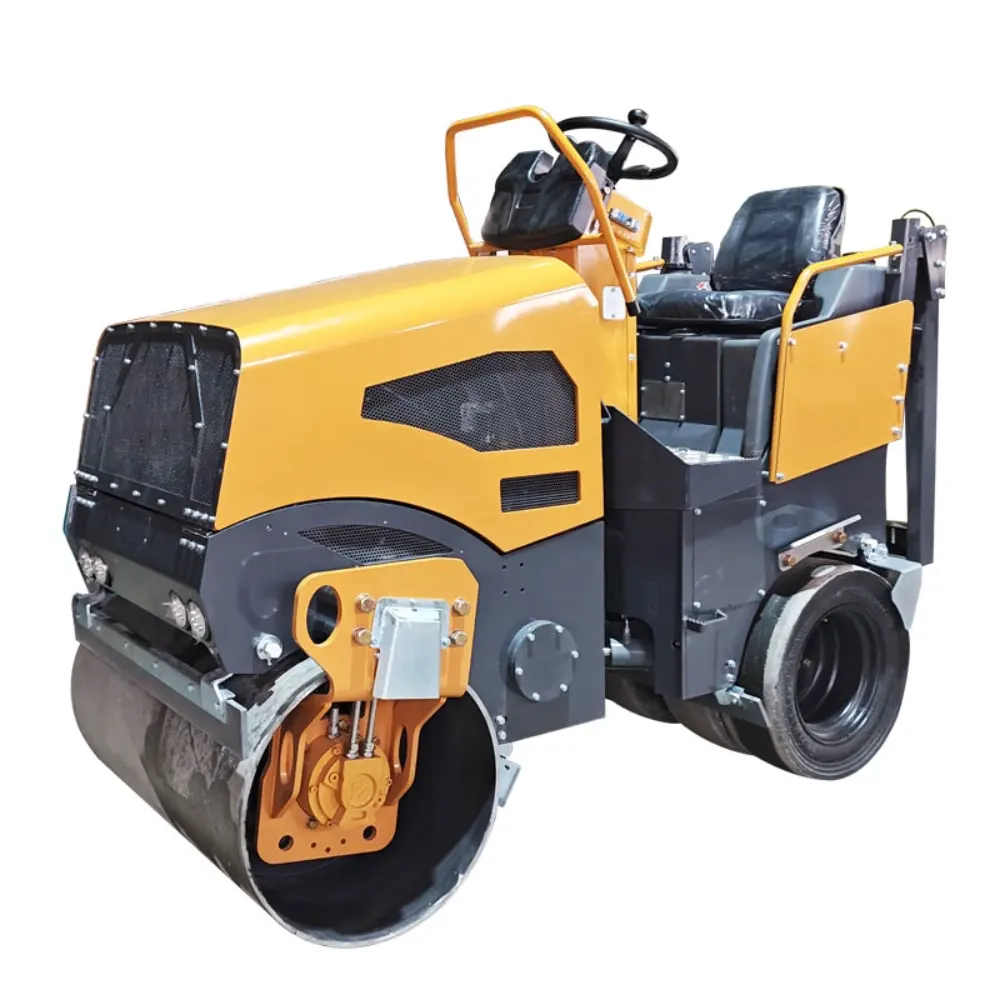

New arrival Hydraulic BM2500D Single support front steel rear rubber roller

Dimensions
Working Width	mm	1150
Overall Length (Guard Frame Tilted/Upright)	mm	2345
Overall Height (Guard Frame Tilted/Upright)	mm	1860/2535
Turning Radius (Inner/Outer)	mm	2950
Steel Wheel Width	mm	1000
Steel Wheel Diameter	mm	630
Wheelbase	mm	1565

Inquire Now

Technical Parameters Unit BM2500D Model BM2500D Weight Operating Mass kg 2300 Static Load n/cm 110/105 Dimensions Working Width mm 1150 Overall Length (Guard Frame Tilted/Upright) mm 2345 Overall Height (Guard Frame Tilted/Upright) mm 1860/2535 Turning Radius (Inner/Outer) mm 2950 Steel Wheel Width mm 1000 Steel Wheel Diameter mm 630 Wheelbase mm 1565 Drive Engine Brand Changchai Kubota Engine Model 3M78 D1105 Engine Type Four – stroke, Water – cooled Diesel Engine Number of Cylinders pc 3 3 Output Power kw 18.5 18.2 Rotation Speed rpm 3000 3000 Electrical Equipment V 12 Drive Mode Variable Piston Pump Stepless Speed Change, Front 1 Rear 2, Motor Parallel Connection Travel Characteristics Speed, Stepless Speed Change km/h 0 – 8 Theoretical Climbing Ability (Vibration On/Off) % 30/35 Braking Service Brake Variable Piston Pump Steering Steering Mode Hydraulic Cylinder, Articulated Steering Steering System Swing Articulated Type Excitation System Vibrating Steel Wheel Front Drive Form Hydraulic Motor Vibration Frequency hz 65 Vibration Amplitude mm 0.5 Exciting Force kn 28 Water Spraying System Form Intermittent Pressure Water Spraying, Oil – water Dual Pump Capacity Hydraulic Oil Capacity L 45 Fuel Capacity L 36 Water Tank Capacity L 160

Technical Parameters	Unit	BM2500D
Model		BM2500D
Weight
Operating Mass	kg	2300
Static Load	n/cm	110/105
Dimensions
Working Width	mm	1150
Overall Length (Guard Frame Tilted/Upright)	mm	2345
Overall Height (Guard Frame Tilted/Upright)	mm	1860/2535
Turning Radius (Inner/Outer)	mm	2950
Steel Wheel Width	mm	1000
Steel Wheel Diameter	mm	630
Wheelbase	mm	1565
Drive
Engine Brand		Changchai	Kubota
Engine Model		3M78	D1105
Engine Type		Four – stroke, Water – cooled Diesel Engine
Number of Cylinders	pc	3	3
Output Power	kw	18.5	18.2
Rotation Speed	rpm	3000	3000
Electrical Equipment	V	12
Drive Mode		Variable Piston Pump Stepless Speed Change, Front 1 Rear 2, Motor Parallel Connection
Travel Characteristics
Speed, Stepless Speed Change	km/h	0 – 8
Theoretical Climbing Ability (Vibration On/Off)	%	30/35
Braking
Service Brake		Variable Piston Pump
Steering
Steering Mode		Hydraulic Cylinder, Articulated Steering
Steering System		Swing Articulated Type
Excitation System
Vibrating Steel Wheel		Front
Drive Form		Hydraulic Motor
Vibration Frequency	hz	65
Vibration Amplitude	mm	0.5
Exciting Force	kn	28
Water Spraying System
Form		Intermittent Pressure Water Spraying, Oil – water Dual Pump
Capacity
Hydraulic Oil Capacity	L	45
Fuel Capacity	L	36
Water Tank Capacity	L	160
