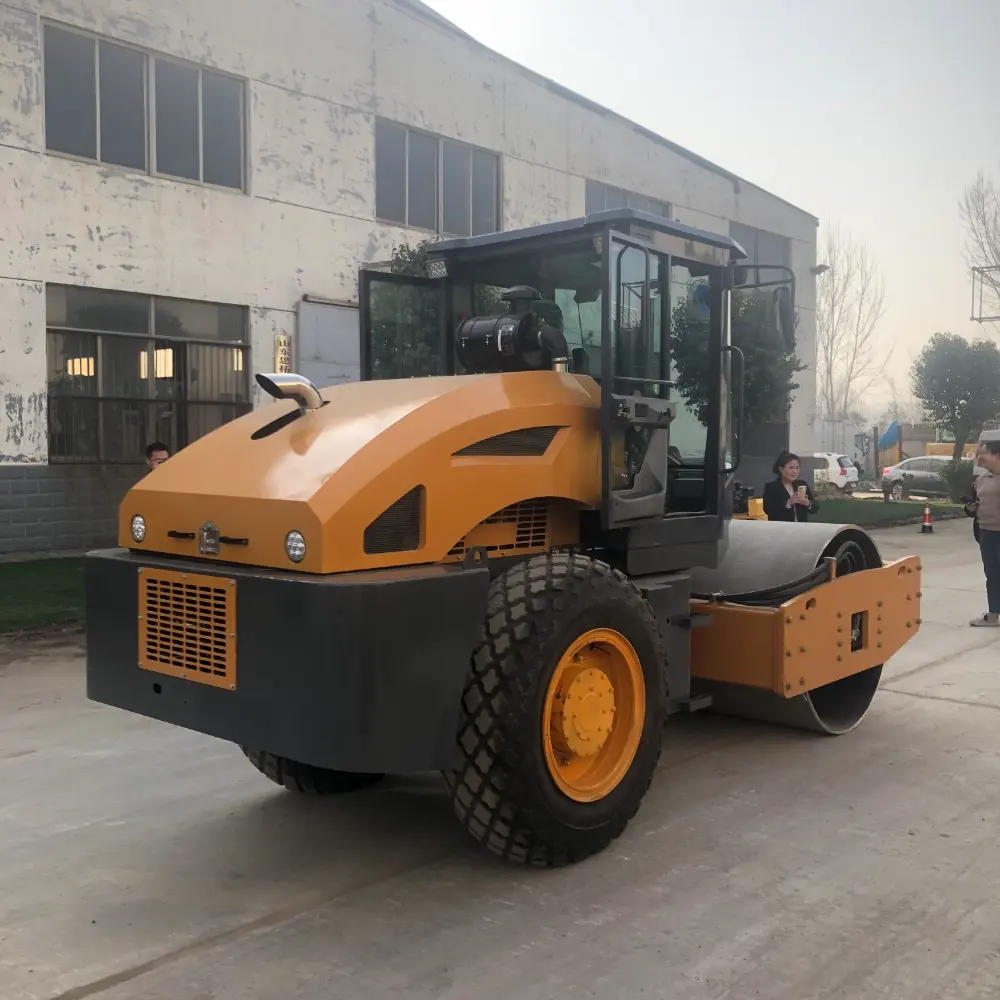

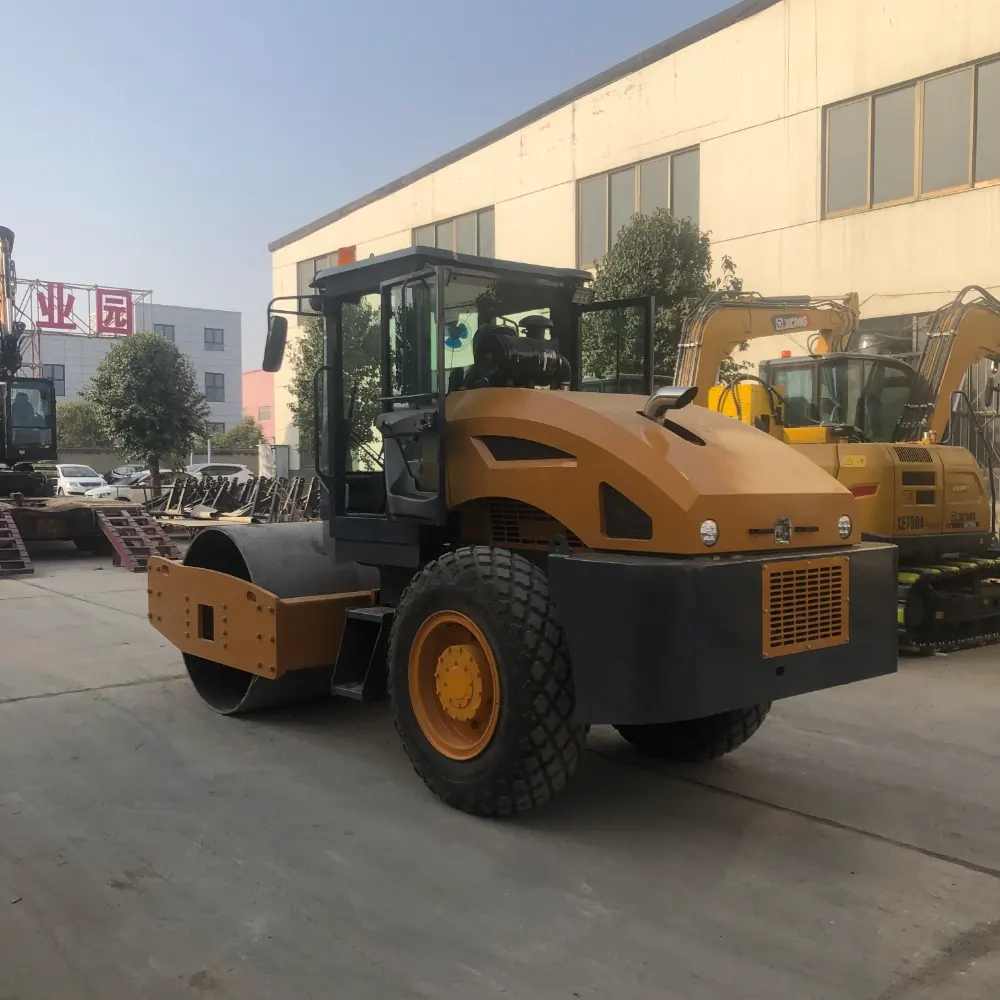

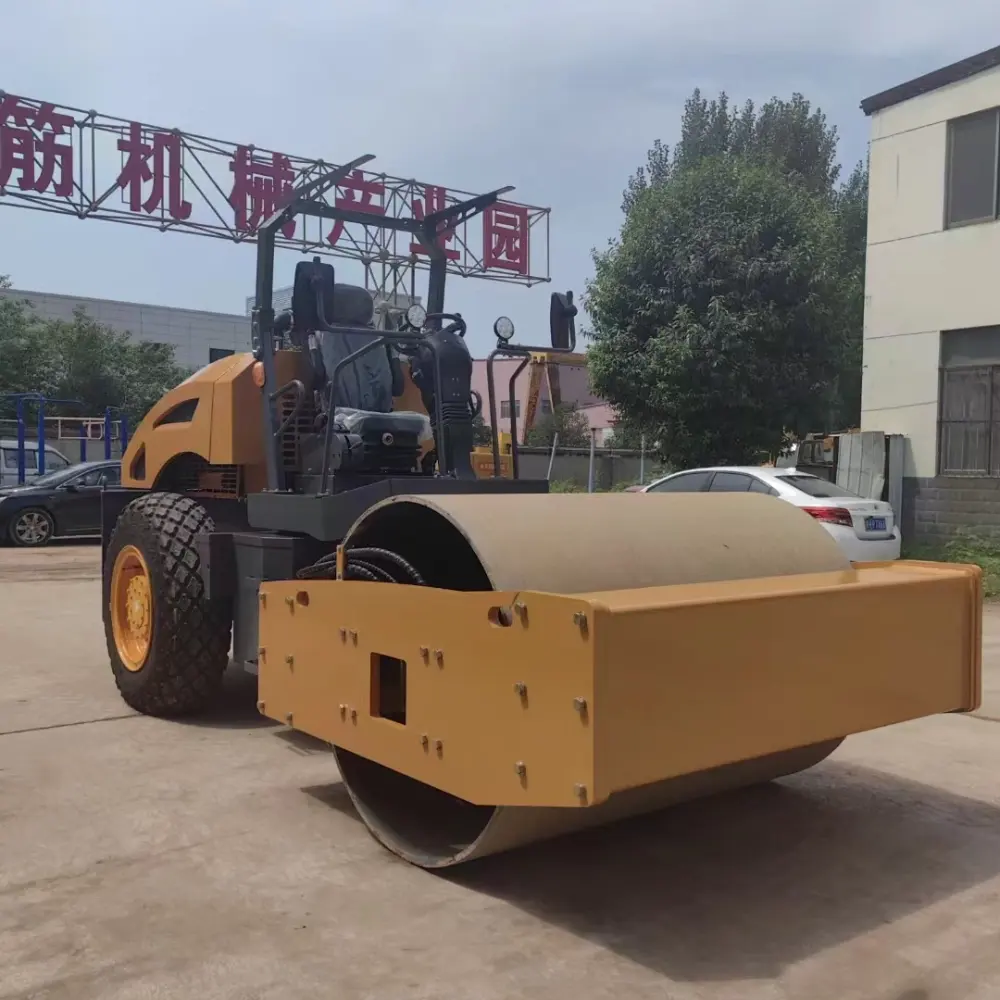

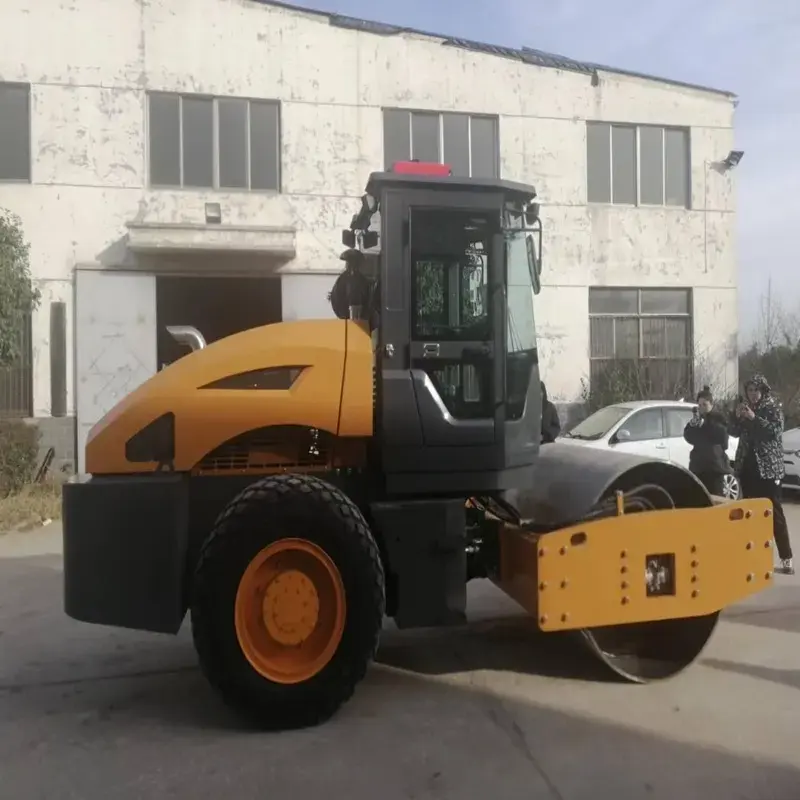

Low price 10-ton BM8000-10S Front steel rear tire ride-on roller supplier

Inquire Now

Technical Parameters Unit BM10S Model BM10S Weight Operating Mass kg 9850 Static Load n/cm 225 Dimensions Working Width mm 2020 Overall Length mm 5065 Overall Height mm 2720 Turning Radius (Inner/Outer) mm 5650 Steel Wheel Width mm 1800 Steel Wheel Diameter mm 1250 Wheelbase mm 2690 Drive Engine Brand CUMMINS Engine Model 4BTA3.9 – C100 – II Engine Type Diesel, In – line, Water – cooled, Four – stroke Number of Cylinders pc 4 Output Power hp 100.6 Rotation Speed rpm 2200 Electrical Equipment V 24 Travel Characteristics Speed km/h 0 – 10 Theoretical Climbing Ability (Vibration On/Off) % 30% Steering Steering Mode Dual – cylinder Hydraulic Steering Excitation System Vibrating Steel Wheel Front Vibration Vibration Form Hydraulic Vibration Vibration Frequency hz 50 Vibration Amplitude mm 0.5 Exciting Force kn 150 Tire Tire Material Rubber Tire Size mm 1260 Tire Model 14.9 – 24 Cab (Optional) Cab Dimensions mm 145014501700 Cab Functions Single – frequency Air – conditioner, Fan, Radio, USB Interface, Dual – speed Wiper Capacity Turbine Lubricating Oil L 15 Fuel Capacity L 154 Hydraulic Oil Capacity L 125

Technical Parameters	Unit	BM10S
Model		BM10S
Weight
Operating Mass	kg	9850
Static Load	n/cm	225
Dimensions
Working Width	mm	2020
Overall Length	mm	5065
Overall Height	mm	2720
Turning Radius (Inner/Outer)	mm	5650
Steel Wheel Width	mm	1800
Steel Wheel Diameter	mm	1250
Wheelbase	mm	2690
Drive
Engine Brand		CUMMINS
Engine Model		4BTA3.9 – C100 – II
Engine Type		Diesel, In – line, Water – cooled, Four – stroke
Number of Cylinders	pc	4
Output Power	hp	100.6
Rotation Speed	rpm	2200
Electrical Equipment	V	24
Travel Characteristics
Speed	km/h	0 – 10
Theoretical Climbing Ability (Vibration On/Off)	%	30%
Steering
Steering Mode		Dual – cylinder Hydraulic Steering
Excitation System
Vibrating Steel Wheel		Front Vibration
Vibration Form		Hydraulic Vibration
Vibration Frequency	hz	50
Vibration Amplitude	mm	0.5
Exciting Force	kn	150
Tire
Tire Material		Rubber
Tire Size	mm	1260
Tire Model		14.9 – 24
Cab (Optional)
Cab Dimensions	mm	145014501700
Cab Functions		Single – frequency Air – conditioner, Fan, Radio, USB Interface, Dual – speed Wiper
Capacity
Turbine Lubricating Oil	L	15
Fuel Capacity	L	154
Hydraulic Oil Capacity	L	125

Full details

FAQ

01

Why should I choose you?

Firstly, we choose good condition and less hour used original machines for customers. Secondly, we are available for the third party to inspect.Thirdly, all machinery is available for your final inspection on site or live video call.Last, we also provide pre-sale /after-sale service and long-term spare parts support.
02

How do you ensure the quality of your products?

Hua Chunqiang has a comprehensive and strict quality inspection process and regular maintenance, you can choose the way of inspection before shipment, or seek the help of a third-party verification company.
03

What is your delivery time?

Huachunqiang has an independent logistics system to improve freight efficiency and shorten delivery time. Delivery time (for most products, it is between 7 and 15 days. If you have special requirements, the transportation time can be reasonably extended).
04

WHATIS YOUR PAYMENT TERM ?

Hua Chunqiang has established a comprehensive collection and disbursement system to serve as many customers as possible, and we accept wire transfers, sight letters of credit, Western Union, PayPal, and more!
