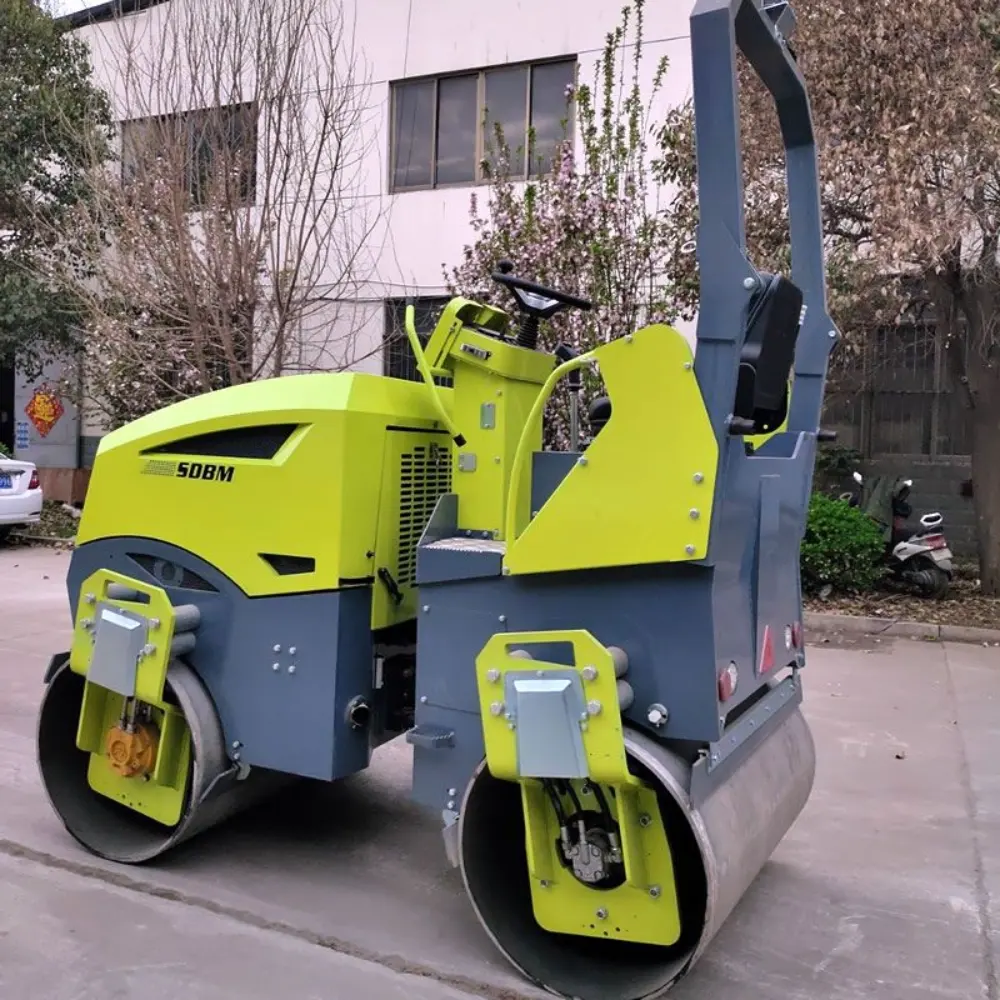

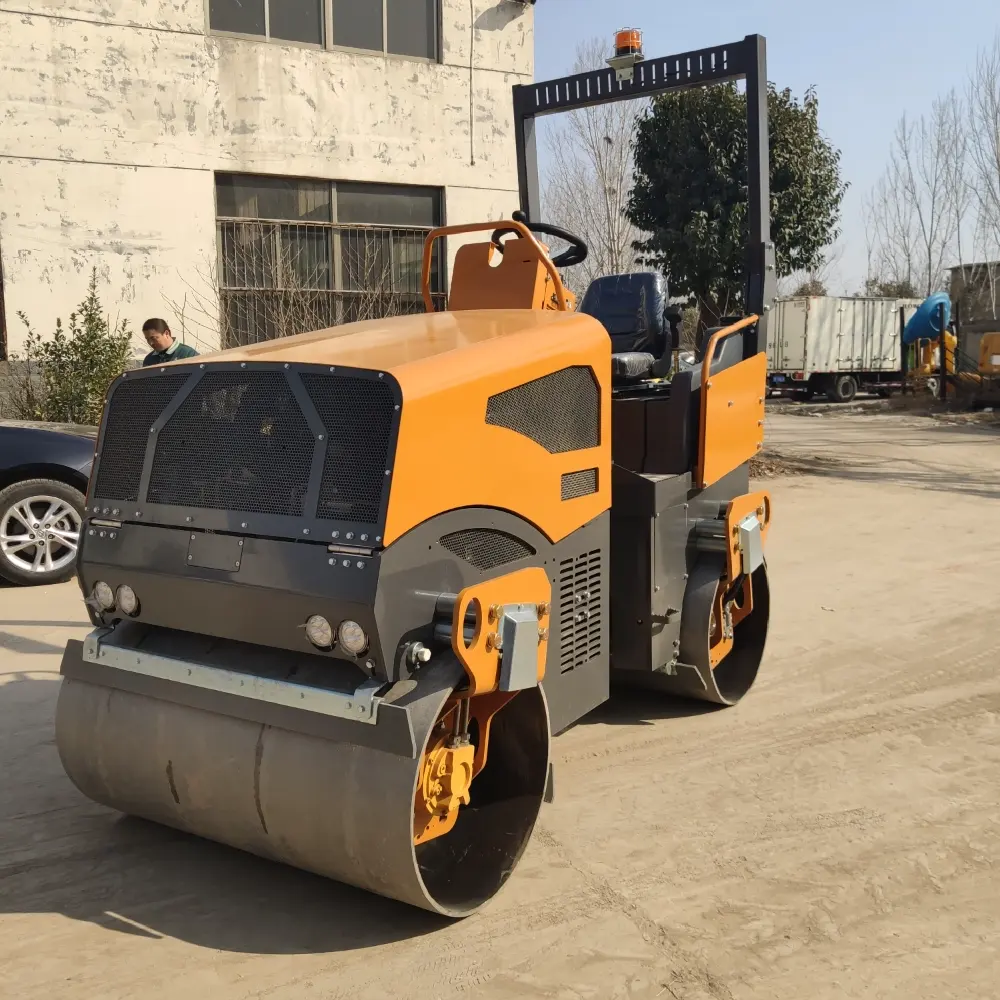

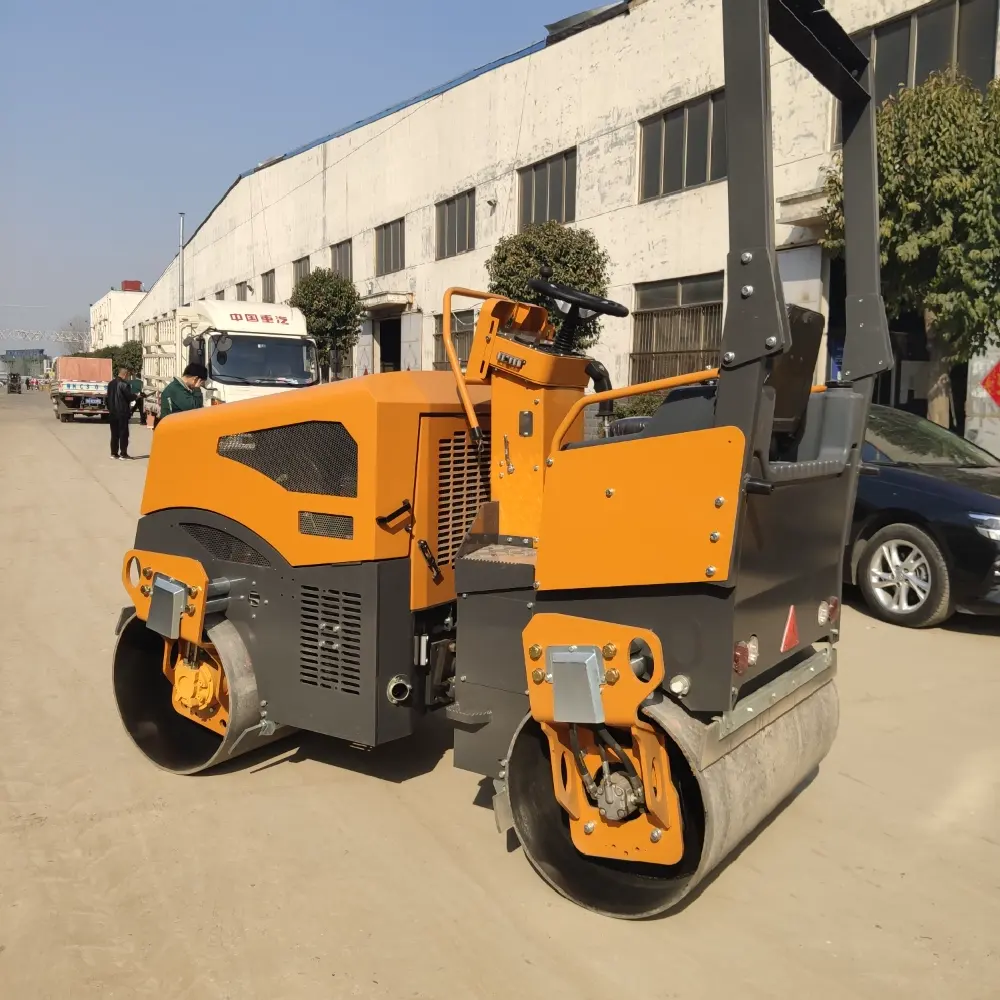

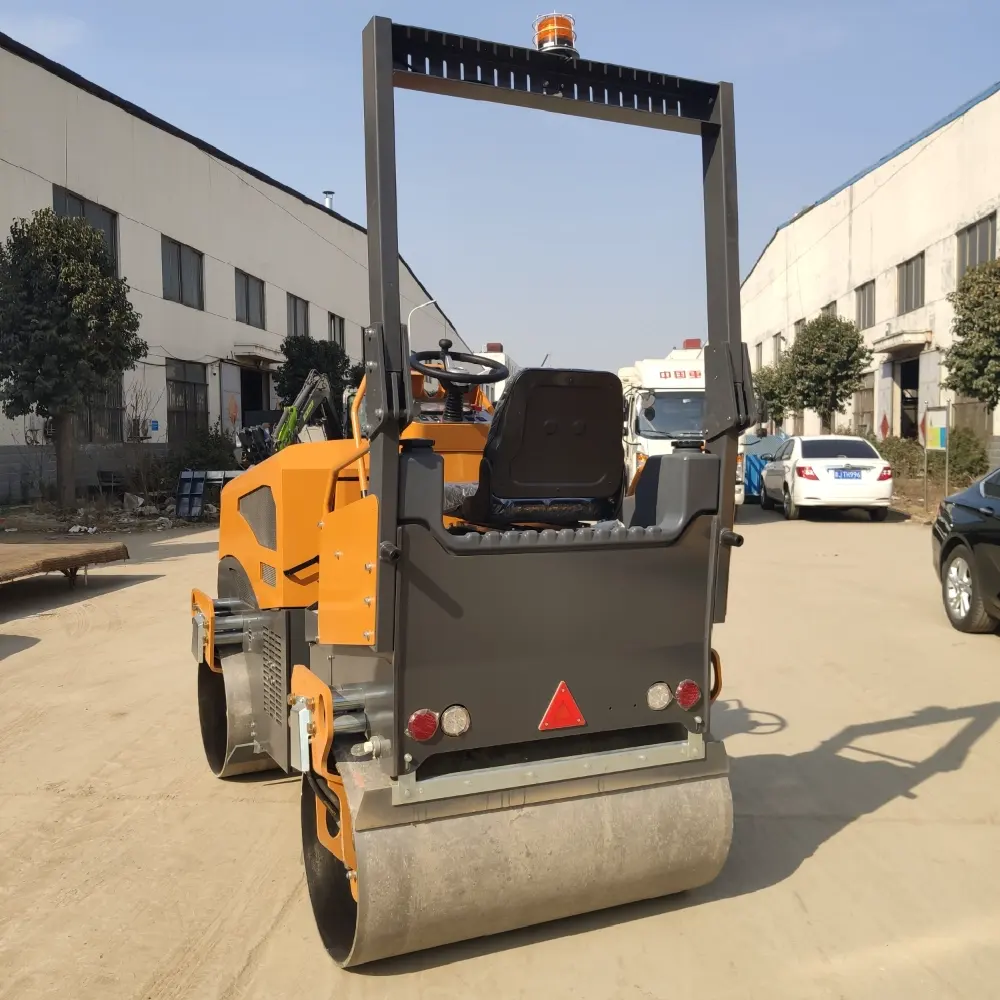

Competitive price BM3000 Double drum ride-on roller durable equipment

Dimensions
Working Width	mm	1355
Overall Length (Guard Frame Tilted/Upright)	mm	2480/2400
Overall Height (Guard Frame Tilted/Upright)	mm	1955/2630
Turning Radius (Inner/Outer)	mm	2405/3760
Steel Wheel Width	mm	1200
Steel Wheel Diameter	mm	630
Wheelbase	mm	1650

Inquire Now

Model BM3000 Weight Operating Weight kg 2900 Static Load n/cm 106/94 Dimensions Working Width mm 1355 Overall Length (Guard Frame Tilted/Upright) mm 2480/2400 Overall Height (Guard Frame Tilted/Upright) mm 1955/2630 Turning Radius (Inner/Outer) mm 2405/3760 Steel Wheel Width mm 1200 Steel Wheel Diameter mm 630 Wheelbase mm 1650 Drive Engine Brand Changchai / Yanmar Engine Model ZN390B / 3TN88 Engine Type Diesel, In – line, Water – cooled, Four – stroke Number of Cylinders pc 3 Output Power kw 28.5 Rotation Speed rpm 2600 Electrical Equipment V 12 Drive Mode Variable Piston Pump Stepless Speed Change, Dual – wheel Drive Motor Parallel Connection Travel Characteristics Speed, Stepless Speed Change km/h 0 – 10 Theoretical Climbing Ability (Vibration On/Off) % 30/35 Braking Service Brake Variable Piston Pump Steering Steering Mode Hydraulic Cylinder, Articulated Steering Steering System Swing Articulated Type Excitation System Vibrating Steel Wheel Front; Front + Rear Drive Form Hydraulic Motor Vibration Frequency hz 65 Vibration Amplitude mm 0.5 Exciting Force kn 45; 2*45 Water Spraying System Form Intermittent Pressure Water Spraying Capacity Hydraulic Oil Capacity L 46 Fuel Capacity L 42 Water Tank Capacity L 140

Model		BM3000
Weight
Operating Weight	kg	2900
Static Load	n/cm	106/94
Dimensions
Working Width	mm	1355
Overall Length (Guard Frame Tilted/Upright)	mm	2480/2400
Overall Height (Guard Frame Tilted/Upright)	mm	1955/2630
Turning Radius (Inner/Outer)	mm	2405/3760
Steel Wheel Width	mm	1200
Steel Wheel Diameter	mm	630
Wheelbase	mm	1650
Drive
Engine Brand		Changchai / Yanmar
Engine Model		ZN390B / 3TN88
Engine Type		Diesel, In – line, Water – cooled, Four – stroke
Number of Cylinders	pc	3
Output Power	kw	28.5
Rotation Speed	rpm	2600
Electrical Equipment	V	12
Drive Mode		Variable Piston Pump Stepless Speed Change, Dual – wheel Drive Motor Parallel Connection
Travel Characteristics
Speed, Stepless Speed Change	km/h	0 – 10
Theoretical Climbing Ability (Vibration On/Off)	%	30/35
Braking
Service Brake		Variable Piston Pump
Steering
Steering Mode		Hydraulic Cylinder, Articulated Steering
Steering System		Swing Articulated Type
Excitation System
Vibrating Steel Wheel		Front; Front + Rear
Drive Form		Hydraulic Motor
Vibration Frequency	hz	65
Vibration Amplitude	mm	0.5
Exciting Force	kn	45; 2*45
Water Spraying System
Form		Intermittent Pressure Water Spraying
Capacity
Hydraulic Oil Capacity	L	46
Fuel Capacity	L	42
Water Tank Capacity	L	140

Full details

FAQ

01

Why should I choose you?

Firstly, we choose good condition and less hour used original machines for customers. Secondly, we are available for the third party to inspect.Thirdly, all machinery is available for your final inspection on site or live video call.Last, we also provide pre-sale /after-sale service and long-term spare parts support.
02

How do you ensure the quality of your products?

Hua Chunqiang has a comprehensive and strict quality inspection process and regular maintenance, you can choose the way of inspection before shipment, or seek the help of a third-party verification company.
03

What is your delivery time?

Huachunqiang has an independent logistics system to improve freight efficiency and shorten delivery time. Delivery time (for most products, it is between 7 and 15 days. If you have special requirements, the transportation time can be reasonably extended).
04

WHATIS YOUR PAYMENT TERM ?

Hua Chunqiang has established a comprehensive collection and disbursement system to serve as many customers as possible, and we accept wire transfers, sight letters of credit, Western Union, PayPal, and more!
