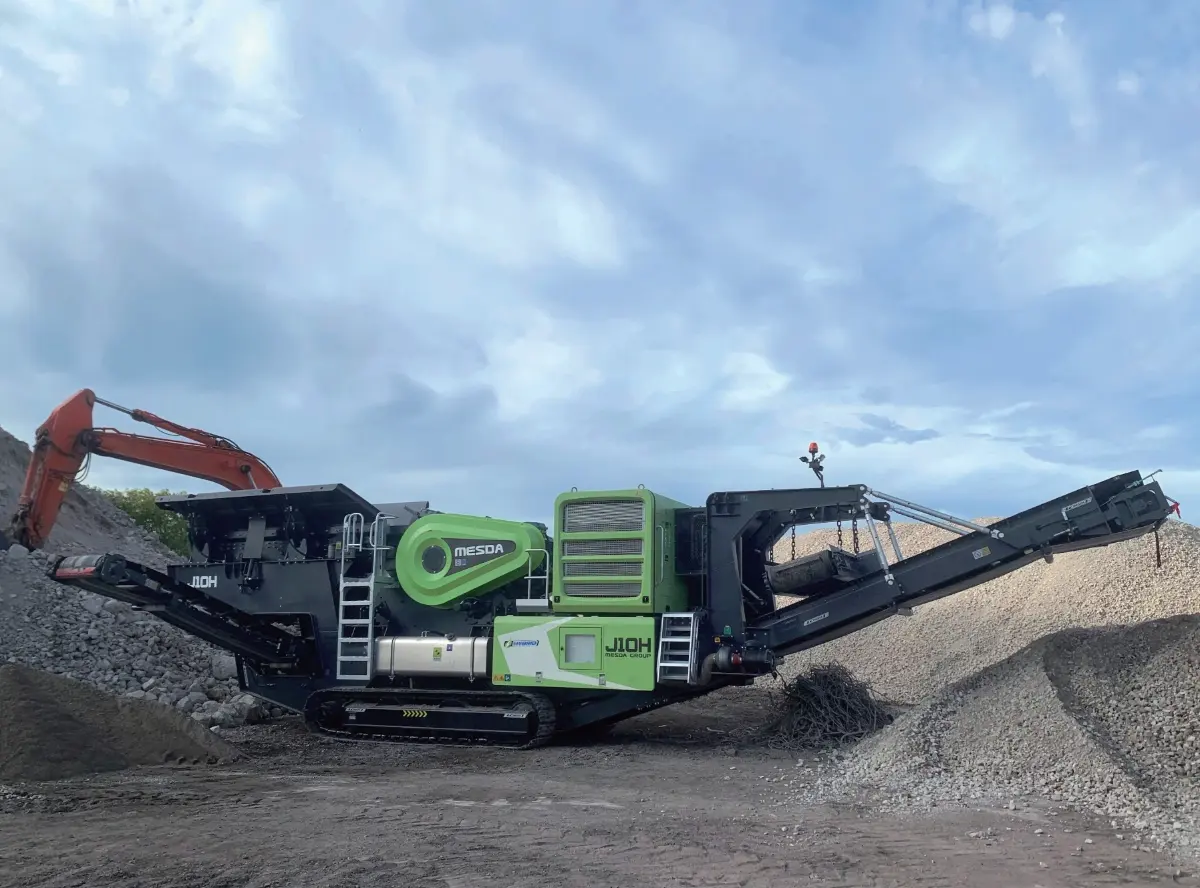

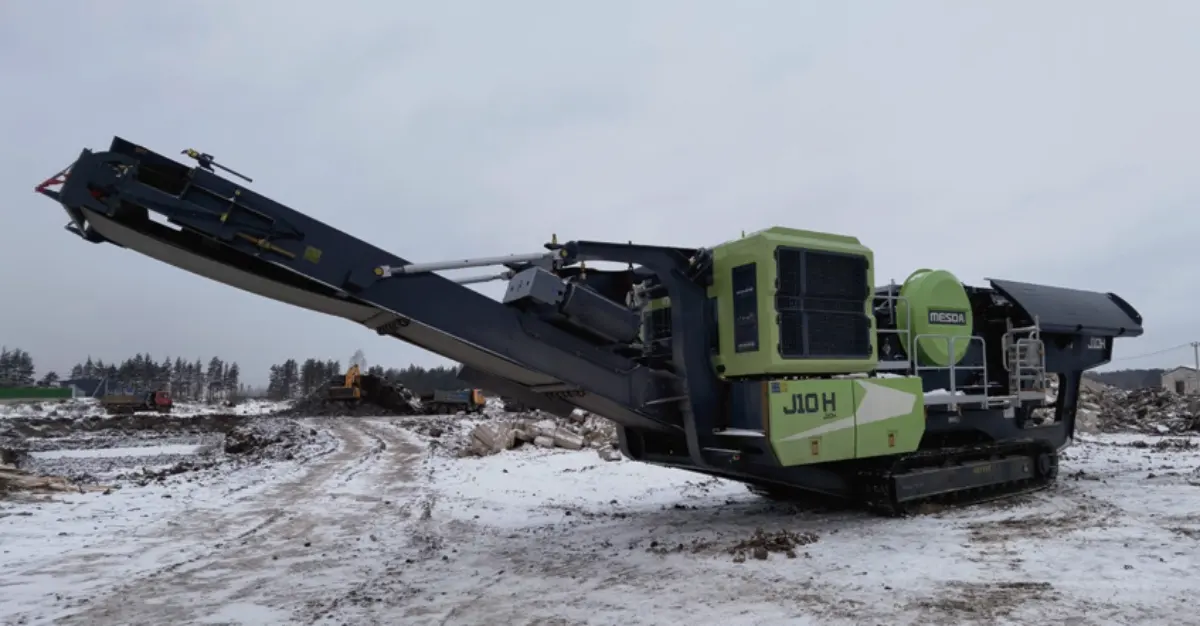

    J10H MOBILE JAW CRUSHER
    J10H MOBILE JAW CRUSHER

    Powerful Hydraulic J10H MOBILE JAW CRUSHER durable equipment supplier

    PRODUCT MODEL J10H
    Driven mode Hybrid
    Engine power 353kW
    Capacity up to 500t/h
    Overall weight 4800kg
    Transportationdimension (LxW×H) 16.66m x3.0m x 3.8m
    Working dimension (LxWxH) 16.14m x 6.6m x 4.15m

    Inquire Now

    Contact Us

    Share :

    • Description

    • Logistics & Stock

    The MESDA J10H p primary mobile jaw crusher was designed with the customer and operator in mind.
    The hybrid drive is designed to maximize fuel efficiency and deliver one of the lowest cost per ton in the market place the machine is the ideal solution for small to medium sized operators.

    ADVANTAGES AND FEATURES
    Hybrid drive
    Modular design,easy operation and maintenance
    Optimized crushing chamber for higher efficiency
    Hydraulically adjustable CSS
    Optional prescreen and overband magnet

    Hopper/feederChamberPowerunitSide conveyorMain conveyor
    Hopper capacity:5m3Capacity:up to 500t/hEngine power: 353kwBelt width:650mmBelt width:1200mm
    Feed height 4100mmChamber size:1060mm x 700mmTank capacity: 400LDischarge height 2670mmDischarge height:3360mm
    Feed in width:1000mmMax input size:560mmFuel consumption: 22-28L/h
    Max feeding size:560mmCSS:70-200mmStage V

    Remarks:
    1.Crusher processing capacity is related to stone hardness,feeding size,and discharge size
    2.Standard configuration:manual control,wireless remote control.
    3.Options:side conveyor folding device,overband magnet,water spraying system.
    4.Three power options:diesel hydraulic,hybrid,electric.
    Full details

    FAQ

    • 01

      Why should I choose you?

      Firstly, we choose good condition and less hour used original machines for customers. Secondly, we are available for the third party to inspect.Thirdly, all machinery is available for your final inspection on site or live video call.Last, we also provide pre-sale /after-sale service and long-term spare parts support.

    • 02

      How do you ensure the quality of your products?

      Hua Chunqiang has a comprehensive and strict quality inspection process and regular maintenance, you can choose the way of inspection before shipment, or seek the help of a third-party verification company.

    • 03

      What is your delivery time?

      Huachunqiang has an independent logistics system to improve freight efficiency and shorten delivery time. Delivery time (for most products, it is between 7 and 15 days. If you have special requirements, the transportation time can be reasonably extended).

    • 04

      WHATIS YOUR PAYMENT TERM ?

      Hua Chunqiang has established a comprehensive collection and disbursement system to serve as many customers as possible, and we accept wire transfers, sight letters of credit, Western Union, PayPal, and more!
