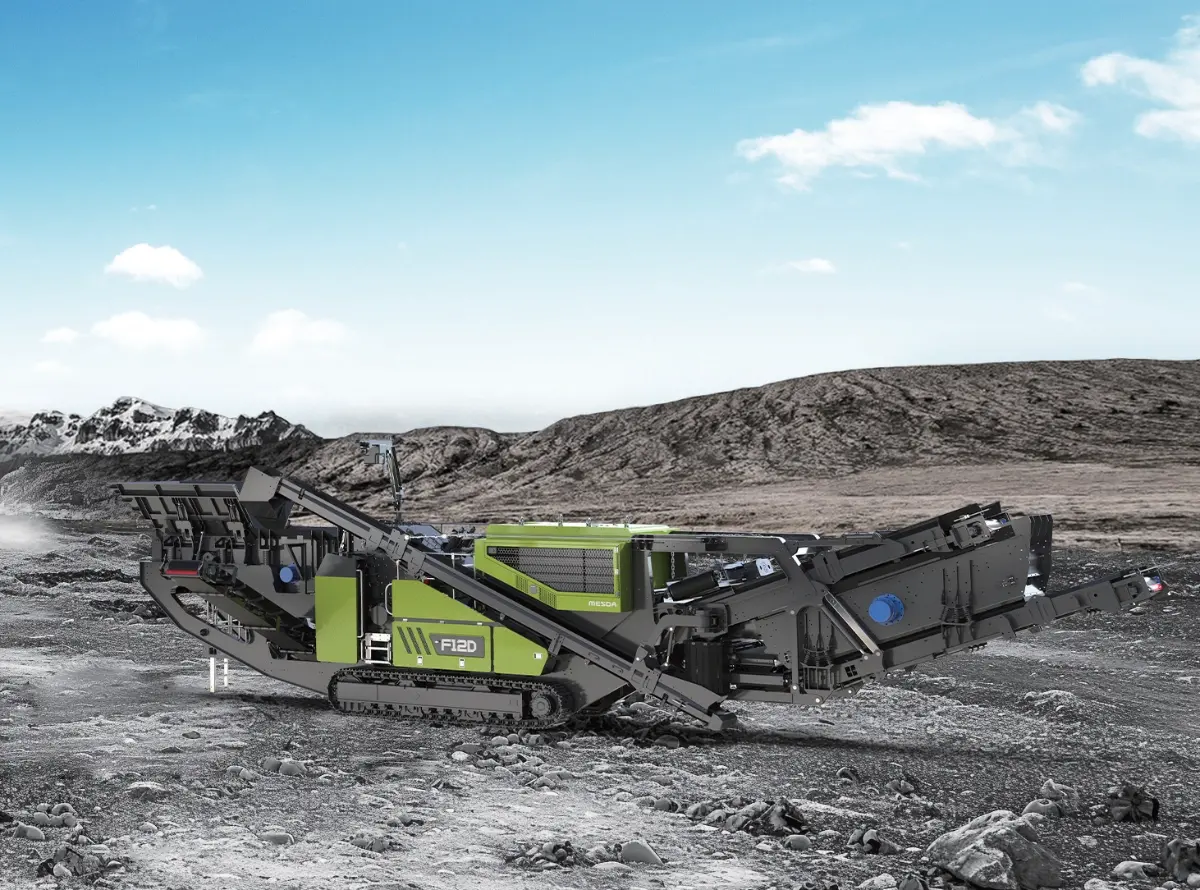

F12D MOBILEIMPACTCRUSHER
F12D MOBILEIMPACTCRUSHER

Hot sale Hydraulic F12D MOBILEIMPACTCRUSHER durable machine supplier

PRODUCT MODEL F12D
Driven mode Diesel
Engine power 343kW
Capacity up to 300t/h
Overall weight 7000kg
Transportation dimension (LxWxH) 21.1m x 3.2m x 3.8m
Working dimension (LxWxH) 20.8m x 11.7m x 4.9m

Share :

  • Description

  • Logistics & Stock

F12D is mainly used for mid-stage crushing of materials to obtain medium-sized materials. The crushed materials can be further screened to obtain materials of different sizes.
At the same time, F12D meets the Staqe V emission require ments, complies with the Stage V and can meet the needs of the globalmarket.

ADVANTAGESANDFEATURES
Expandable hopper for easy storage of more materials
Double-layer independent pre-screening, effectively reducing material jamming
Adjustable crusher speed, reducing energy consumption
Larqe-size impact crusher rotor, more efficient material crushino
Widely adjustable discharqe openinq for hiqh material throuqhput
Remote intelligent control system,real-time monitoring ofequipmentstatus
Recirculation conveyor rotatable as side conveyor

Remarks:
1.Crusherprocessingcapacitysrelated to stonehardness,eeding sizeand discharge sie
2.Standard configuration:manual control,wireless remote control
3.Options:side conveyorfoldingdeviceoverbandmagnet,waterspraying system
4.Three power ootions:dieselhvdraulic.hvbrid.electric

Hopper/feederChamberMedium-Grade conveyorPowerunitMain conveyorTailingConveyorPre-screenRecirculating conveyorFineconveyor
Hopper capacity:5m3Rotor size:Φ1250mm x1270mmBelt width: 650mmEngine power:343kWBelt width:1200mmBelt width: 650mmLength xwidth: 2070mm x1100mmBelt width:500mmBelt width:1000mm
Feed height:4220mmRotor speed:650rpmDischarge height: 3050mmTank capacity:600LDischarge height:2900mmPower:5kWx2Discharge height:2900mm
Feed in width:1000mmMax input size:650mmFuel consumption:55-65L/h
Max feedinq size: 7o0mmCSS:20-120mmStageV

Remarks
1.Crusherprocessingcapacityisrelated to stonehardness,feedingsizeand discharge se
2.Standard configuration: manual control, wireless remote control
3.Options sideconveyorfolding device overbandmagnet, watersprayingsystem.
4.Three power options:diesel hydraulic,hybrid,electric.
