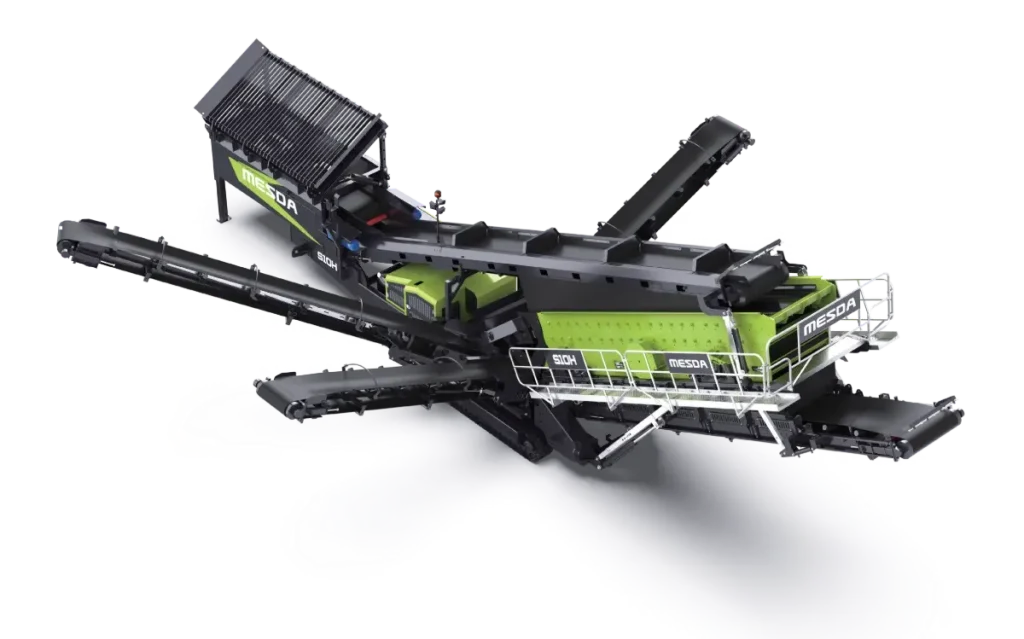

    S10H MOBILE SCREENER
    S10H MOBILE SCREENER

    High Efficiency Hydraulic S10H MOBILE SCREENER Durable Equipment Global Supplier

    PRODUCT MODEL S10H
    Driven mode Hybrid
    Engine power 129kW
    Capacity up to 350t/h
    Overall weight 36000kg
    Transportation dimension(LxWxH) 20m×3.0mx3.6m
    Working dimension(L x Wx H) 20.5mx14.5m×6.8m

    Inquire Now

    Contact Us

    Share :

    • Description

    • Logistics & Stock

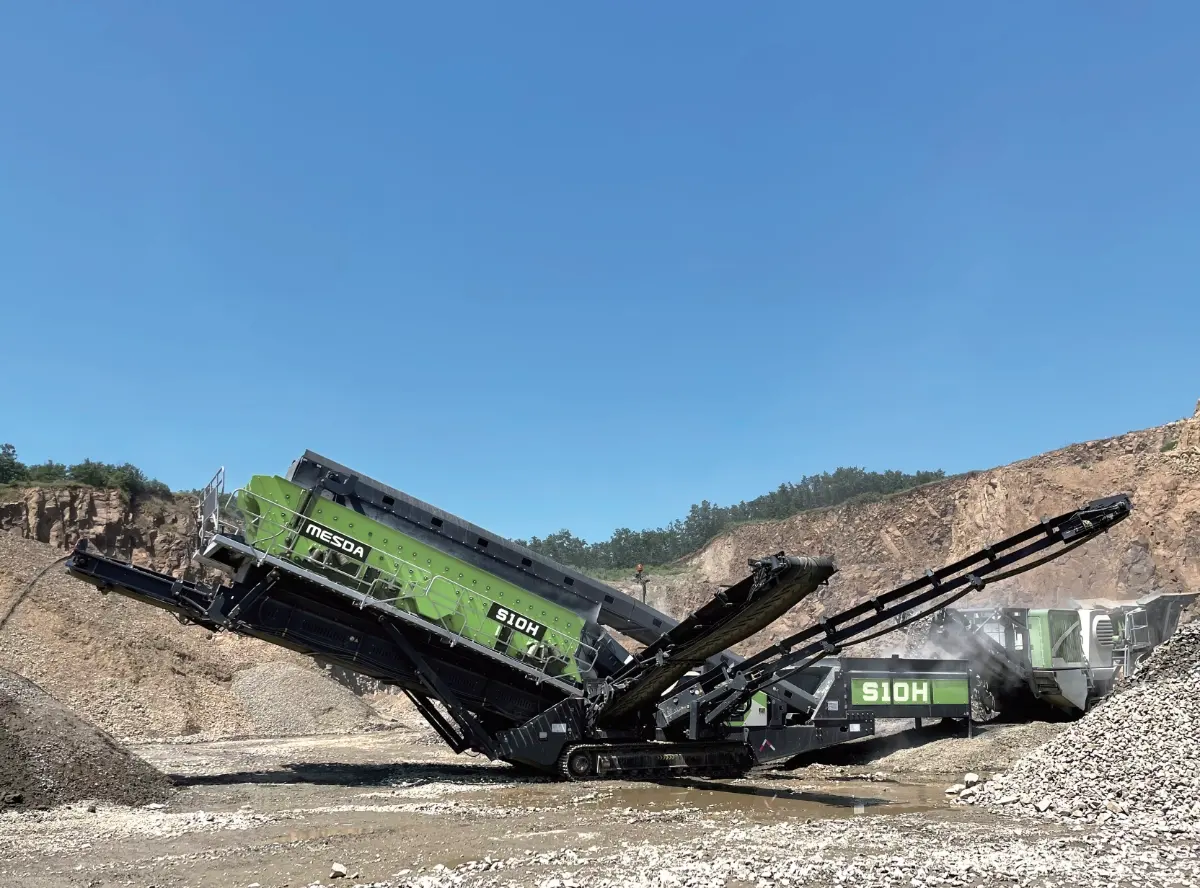

    The MESDA S10H inclined screen has been develop to fulfil the demands of high production producers in quarrying and mining.
    The model is available with hybrid technology consisting of on-board electrical motors permitting the flexibility to run the plant from an outside power supply or standard on-board engine.

    ADVANTAGES AND FEATURES
    Hybrid drive
    Designed by dynamic optimization,complete screening system
    Optimize the design for a more convenient transportation size,with a width not exceeding 3 meters and a height not exceeding 3.6 meters

    Hopper/feederFeeding conveyorFine conveyorMedium-Coarse conveyorCoarse conveyorMedium-Grade conveyorPower unitVibrating Screen
    Hopper capacity:3m3Belt width: 1050mmBelt width:1200mmBelt width:800mmBelt width:650mmBelt width:800mmEngine power:129kWCapacity:up to 350t/h
    Feed height:2600mmDischarge height:5060mmDischarge height:3750mmDischarge height:4800mmDischarge height:4110mmTank capacity:300LScreen angle:0-28
    Feed in width:1618mmFuel consumption:11-15L/hScreening area:10m2
    Max feeding size:130mmStage V
    S10H MOBILE SCREENER

    Remarks:
    1.Screen processing capacity is related to material humidity,feed size and discharge size.
    2.Three power options:diesel hydraulic,hybrid,electric.
