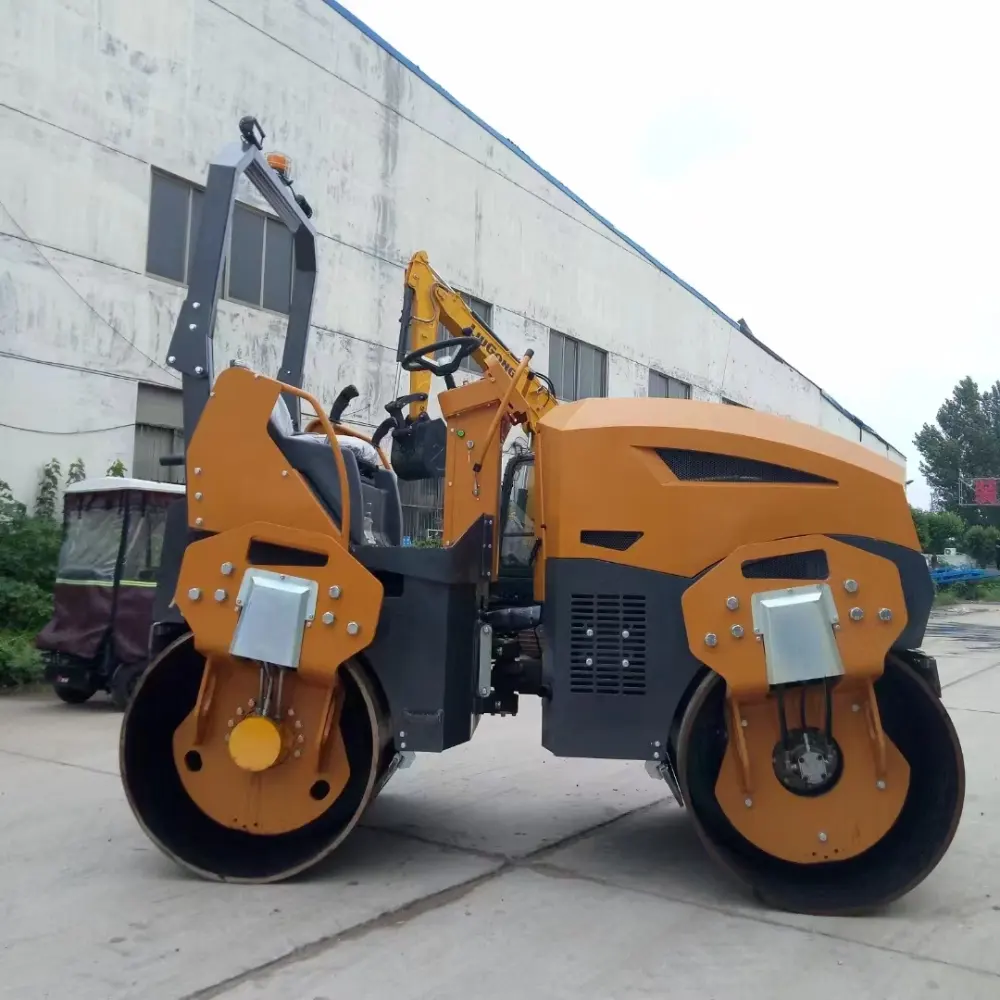

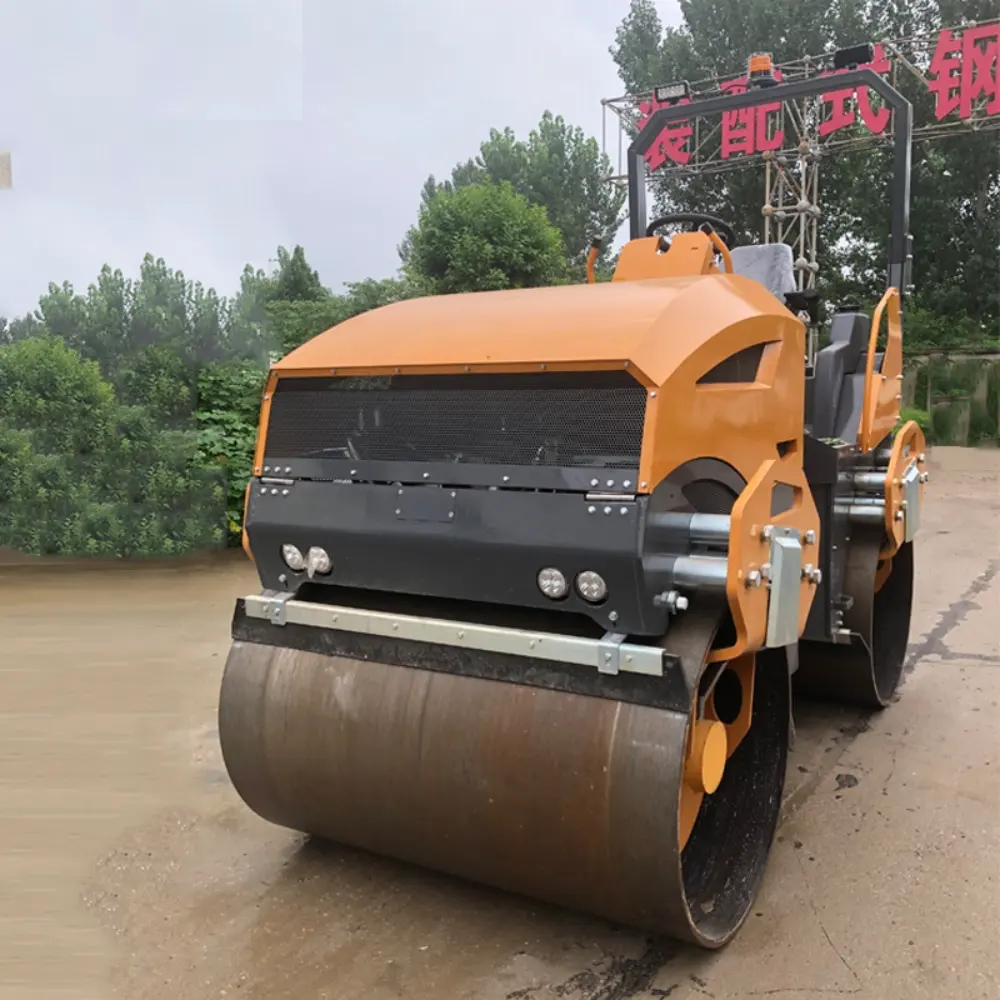

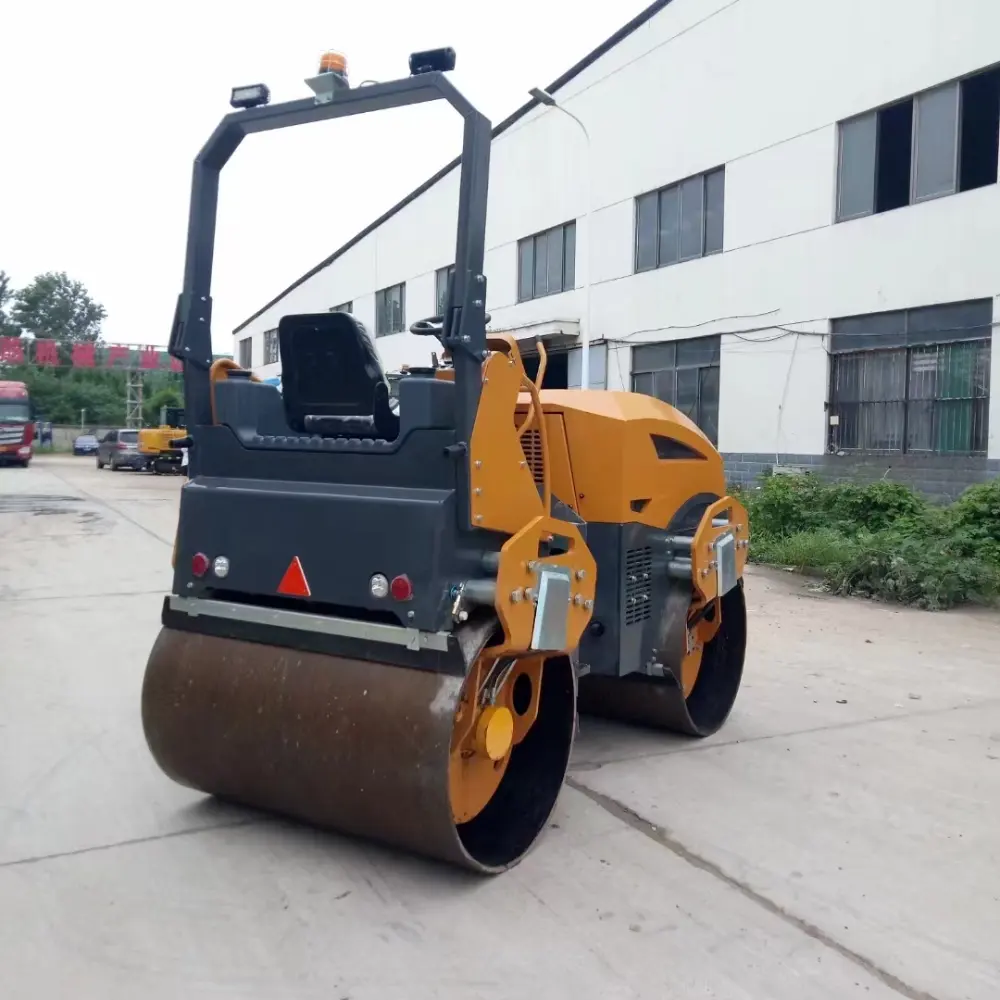

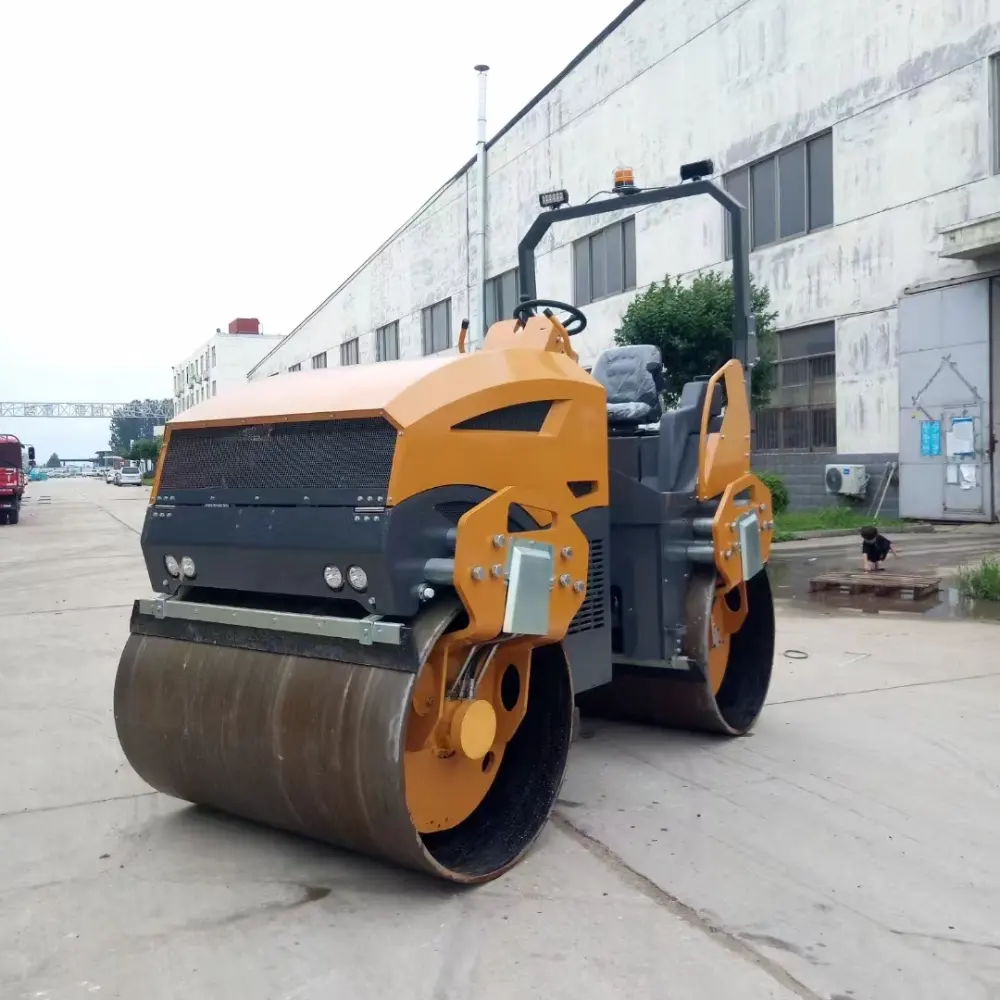

High cost performance BM5000 Double drum ride-on roller equipment supplier

Dimensions
Working Width	mm	1580
Overall Length (Guard Frame Tilted/Upright)	mm	2920/2850
Overall Height (Guard Frame Tilted/Upright)	mm	2025/2680
Outer Turning Radius	mm	4380
Steel Wheel Width	mm	1400
Steel Wheel Diameter	mm	900
Wheelbase	mm	1950

Inquire Now

Technical Parameters Unit BM5000 Weight Operating Mass kg 5000 Static Load n/cm 155 Dimensions Working Width mm 1580 Overall Length (Guard Frame Tilted/Upright) mm 2920/2850 Overall Height (Guard Frame Tilted/Upright) mm 2025/2680 Outer Turning Radius mm 4380 Steel Wheel Width mm 1400 Steel Wheel Diameter mm 900 Wheelbase mm 1950 Drive Engine Brand Changchai YANMAR Kubota Engine Model ZN490B 4TNV88 V2403 Engine Type Diesel, In – line, Water – cooled, Four – stroke Number of Cylinders pc 4 Output Power kw 36 34.5 33.6 Rotation Speed rpm 2400 3000 2400 Electrical Equipment V 12 Drive Mode Variable Piston Pump Stepless Speed Change Dual – wheel Drive Travel Characteristics Speed, Stepless Speed Change km/h 0 – 15 Theoretical Climbing Ability (Vibration On/Off) % 35/40 Braking Service Brake Variable Piston Pump Steering Steering Mode Hydraulic Steering, Swing Articulated Type Excitation System Vibrating Steel Wheel Front/Rear, Front + Rear Drive Form Hydraulic Motor Vibration Frequency hz 50 Vibration Amplitude mm 0.5 Exciting Force kn 85, 2*85 Water Spraying System Form Intermittent Electronic Pressure Water Spraying Water Tank Material Rotational Molding Water Tank Capacity Steel Wheel Lubricating Oil L 9.8*2 Hydraulic Oil Capacity L 60 Fuel Capacity L 44.5 Water Tank Capacity L 340

Technical Parameters	Unit	BM5000
Weight
Operating Mass	kg	5000
Static Load	n/cm	155
Dimensions
Working Width	mm	1580
Overall Length (Guard Frame Tilted/Upright)	mm	2920/2850
Overall Height (Guard Frame Tilted/Upright)	mm	2025/2680
Outer Turning Radius	mm	4380
Steel Wheel Width	mm	1400
Steel Wheel Diameter	mm	900
Wheelbase	mm	1950
Drive
Engine Brand		Changchai	YANMAR	Kubota
Engine Model		ZN490B	4TNV88	V2403
Engine Type			Diesel, In – line, Water – cooled, Four – stroke
Number of Cylinders	pc		4
Output Power	kw	36	34.5	33.6
Rotation Speed	rpm	2400	3000	2400
Electrical Equipment	V		12
Drive Mode		Variable Piston Pump Stepless Speed Change		Dual – wheel Drive
Travel Characteristics
Speed, Stepless Speed Change	km/h		0 – 15
Theoretical Climbing Ability (Vibration On/Off)	%		35/40
Braking
Service Brake			Variable Piston Pump
Steering
Steering Mode			Hydraulic Steering, Swing Articulated Type
Excitation System
Vibrating Steel Wheel			Front/Rear, Front + Rear
Drive Form			Hydraulic Motor
Vibration Frequency	hz		50
Vibration Amplitude	mm		0.5
Exciting Force	kn		85, 2*85
Water Spraying System
Form			Intermittent Electronic Pressure Water Spraying
Water Tank Material			Rotational Molding Water Tank
Capacity
Steel Wheel Lubricating Oil	L		9.8*2
Hydraulic Oil Capacity	L		60
Fuel Capacity	L		44.5
Water Tank Capacity	L		340

Full details

FAQ

01

Why should I choose you?

Firstly, we choose good condition and less hour used original machines for customers. Secondly, we are available for the third party to inspect.Thirdly, all machinery is available for your final inspection on site or live video call.Last, we also provide pre-sale /after-sale service and long-term spare parts support.
02

How do you ensure the quality of your products?

Hua Chunqiang has a comprehensive and strict quality inspection process and regular maintenance, you can choose the way of inspection before shipment, or seek the help of a third-party verification company.
03

What is your delivery time?

Huachunqiang has an independent logistics system to improve freight efficiency and shorten delivery time. Delivery time (for most products, it is between 7 and 15 days. If you have special requirements, the transportation time can be reasonably extended).
04

WHATIS YOUR PAYMENT TERM ?

Hua Chunqiang has established a comprehensive collection and disbursement system to serve as many customers as possible, and we accept wire transfers, sight letters of credit, Western Union, PayPal, and more!
