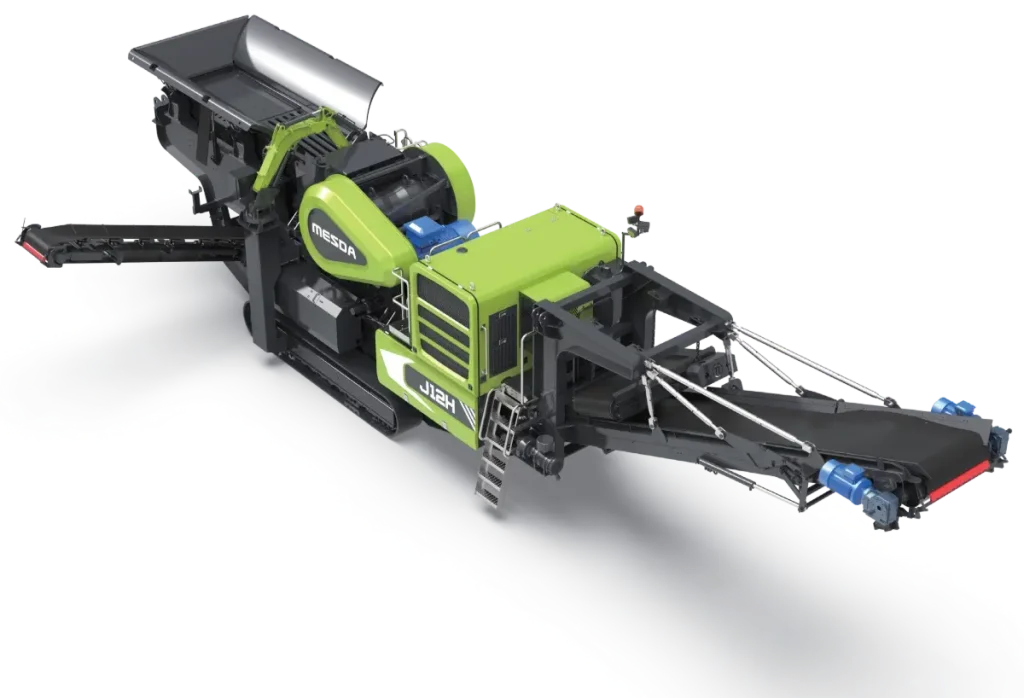

J12H MOBILE JAW CRUSHER
J12H MOBILE JAW CRUSHER

Good Performance Hydraulic J12H MOBILE JAW CRUSHER durable equipment supplier

PRODUCT MODEL J12H
Driven mode Hybrid
Engine power 353kW
Capaity up to 600t/h
Overall weight 68000kg
Transportation dimension (LxW×H) 16.52m x 3.5m x 3.91m
Working dimension (LxW×H) 17.34m x 6.9m x 4.95m

Share :

  • Description

  • Logistics & Stock

J12H is mainly used for the preliminary crushing of materials,utilizing its strong jaw plates to compress and break down large-sized materials.Since the crushed materials are still relatively large in size,further crushing treatment is required.Additionally,J12H meets the EU Stage V emission requirements and complies with the EU CE standards,making it suitable for the global market demand.

ADVANTAGES AND FEATURES
Equipped with a hybrid power system,it can switch between electric power drive and diesel power generation at any time, which is green and energy-efficient
Remote intelligent control system allows for real-time monitoring of equipment status
The control box features a positive pressure sealing design against dust,and an optional hydraulic hammer system can be installed
High material processing capacity up to 600t/h
Capable of crushing large-sized materials with a maximum size of 700mm
Feeding capacity of 600 t/h,meeting the demands of high-output production

Hopper/feederChamberPower unitSide conveyorMainconveyor
Hoppercapacity:6m3Capacity:up to 600t/hEngine power:353kWBelt width:650mmBeltwidth:1200mm
Feedheight:4450mmChamber size:1200mm x 870mmTank capacity:400LDischarge height:2930mmDischargeheight:3360mm
Feedinwidth:1290mmMax input size:700mmFuel consumption:31-41L/h
Maxfeeding size:700mmStageV

Remarks:
1.Crusher processing capacity is related to stone hardness,feeding size,and dicharge size.
2.Standard configuration manual control,wireless remote control.
3.Options:side conveyor folding device,overband magnet,water spraying system.
4.Three power options:diesel hydraulic,hybrid,electric.
