    PRODUCT MODEL F8H Driven mode Hybrid Engine power 191kW Capacity up to 60-150t/h Overall weight 30000kg Transportation dimension(LxW×H) 14.1m ×2.62m×2.7m Working dimension(LxW×H) 13.6mx3.2mx4.1m
    PRODUCT MODEL F8H Driven mode Hybrid Engine power 191kW Capacity up to 60-150t/h Overall weight 30000kg Transportation dimension(LxW×H) 14.1m ×2.62m×2.7m Working dimension(LxW×H) 13.6mx3.2mx4.1m

    Competitive price Hydraulic F8H MOBILEIMPACTCRUSHER durable machine Global Supply

    PRODUCT MODEL F8H
    Driven mode Hybrid
    Engine power 191kW
    Capacity up to 60-150t/h
    Overall weight 30000kg
    Transportation dimension(LxW×H) 14.1m ×2.62m×2.7m
    Working dimension(LxW×H) 13.6mx3.2mx4.1m

    Inquire Now

    Contact Us

    Share :

    • Description

    • Logistics & Stock

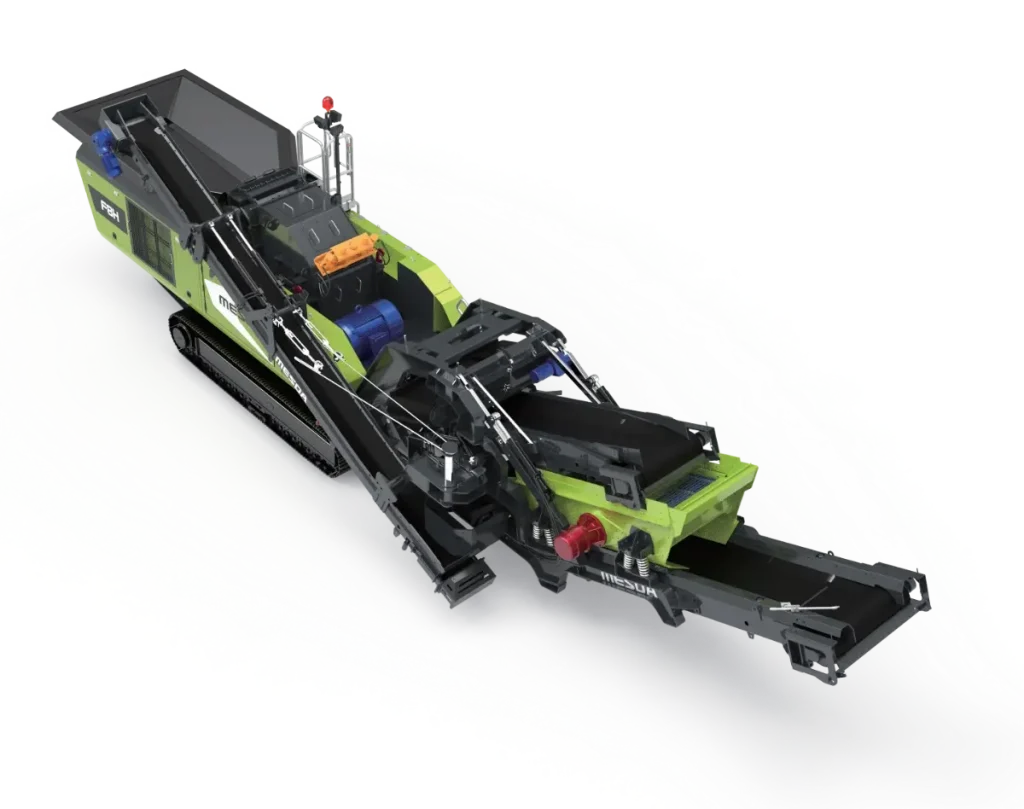

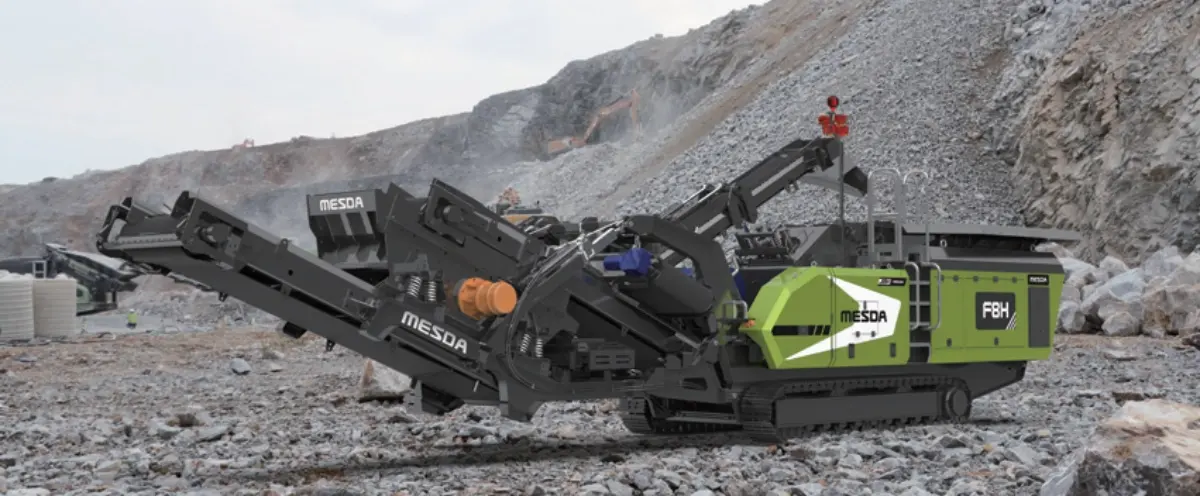

    The MESDA F8Himpact crusher adopts an diesel-electric dual power drive mode.has Staqe Vemissions,andis energy-saving,environmentally friendly,and efficient.

    The powerful one-piece cast alloy rotor can crush large materials with a compressive strength below 100 MPa. The overall machine size has been specially designed and optimized tomeet road transportation requirements for the entire machine,in accordance with various standards.

    ADVANTAGESANDFEATURES
    Hybrid drive, can save fuel consumption by 20%
    High strength (>50oMpa) alloy monoblock rotor
    High rotation speed (rated up to 68Orpm), high crushing efficiency
    Max feeding size 400mm, capable for large-sized material crushing
    Hydraulic adjustment of opening gap
    Optional device for tuming return conveyor to side product conveyor StaqeV

    Hopper/feederChamberMain conveyorPost screenPower unitReturn conveyorFine conveyor
    Feeding height: 2.6mCapacity: up to 150t/hBelt width:800mmLength ×width:2000mmx1100mmEngine power: 191kWBelt width: 400mmBelt width: 900mm
    Hopper capacity: 4m3Rotor size:Φ860x750mmDischarge height:2650mmPower:3.06kWx2Tank capacity: 200LPower:3kWDischarge height: 2286mm
    Length × width: 2000mm × 1100mmRotor speed:680rpmFuel consumption: 18-23L/h
    PRODUCT MODEL F8H Driven mode Hybrid Engine power 191kW Capacity up to 60-150t/h Overall weight 30000kg Transportation dimension(LxW×H) 14.1m ×2.62m×2.7m Working dimension(LxW×H) 13.6mx3.2mx4.1m

    Remarks:
    1.Crusher processing capacity is related to stone hardness, feeding size, and discharge size.
    2.Standard configuration: manual control, wireless remote control.
    3.Options: side conveyor folding device,overband magnet,water spraying system.
    4.Three power options:diesel hydraulic,hybrid,electric.
