| Overall size | ||
| Total length (L) | mm | 4360 |
| Total width (W) | mm | 1430 |
| Total height (H) | mm | 1450 |
| Height of mast sections(HI) | m | 9 |
| Tire and rim size(WI) | " | 14 |

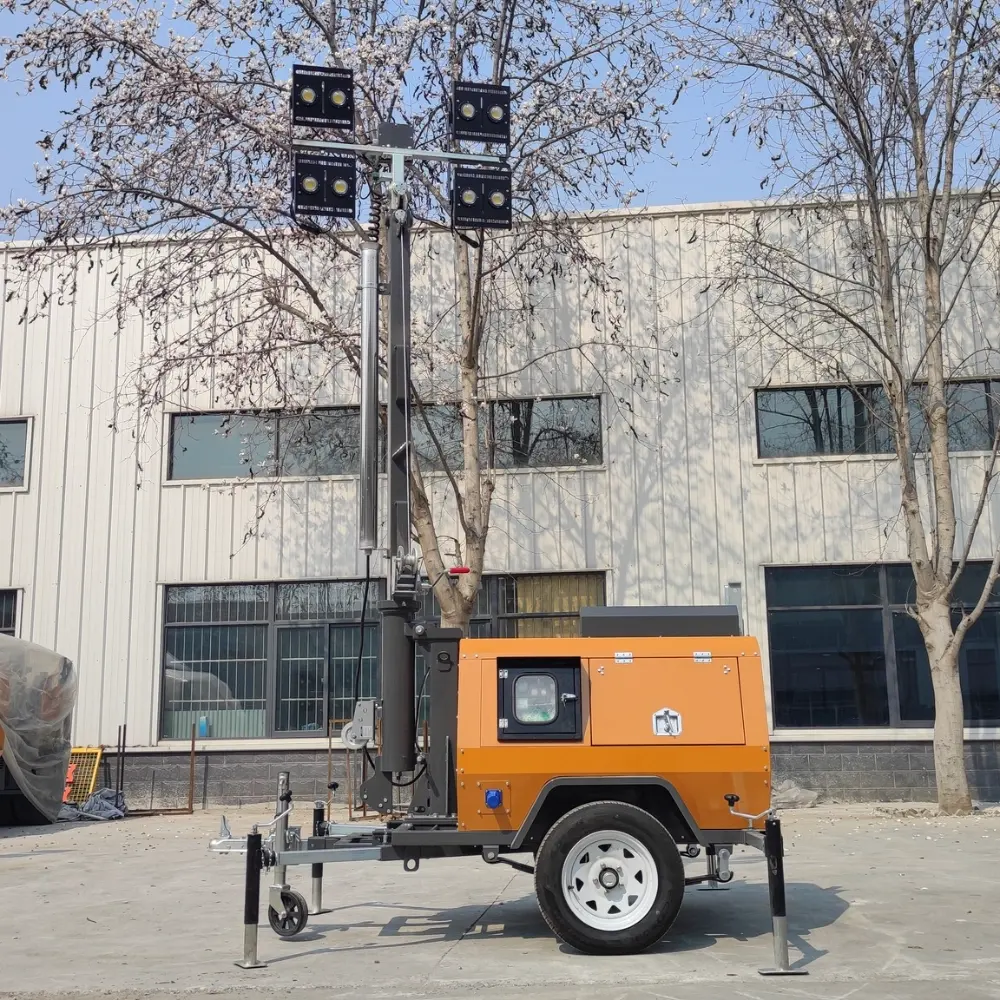

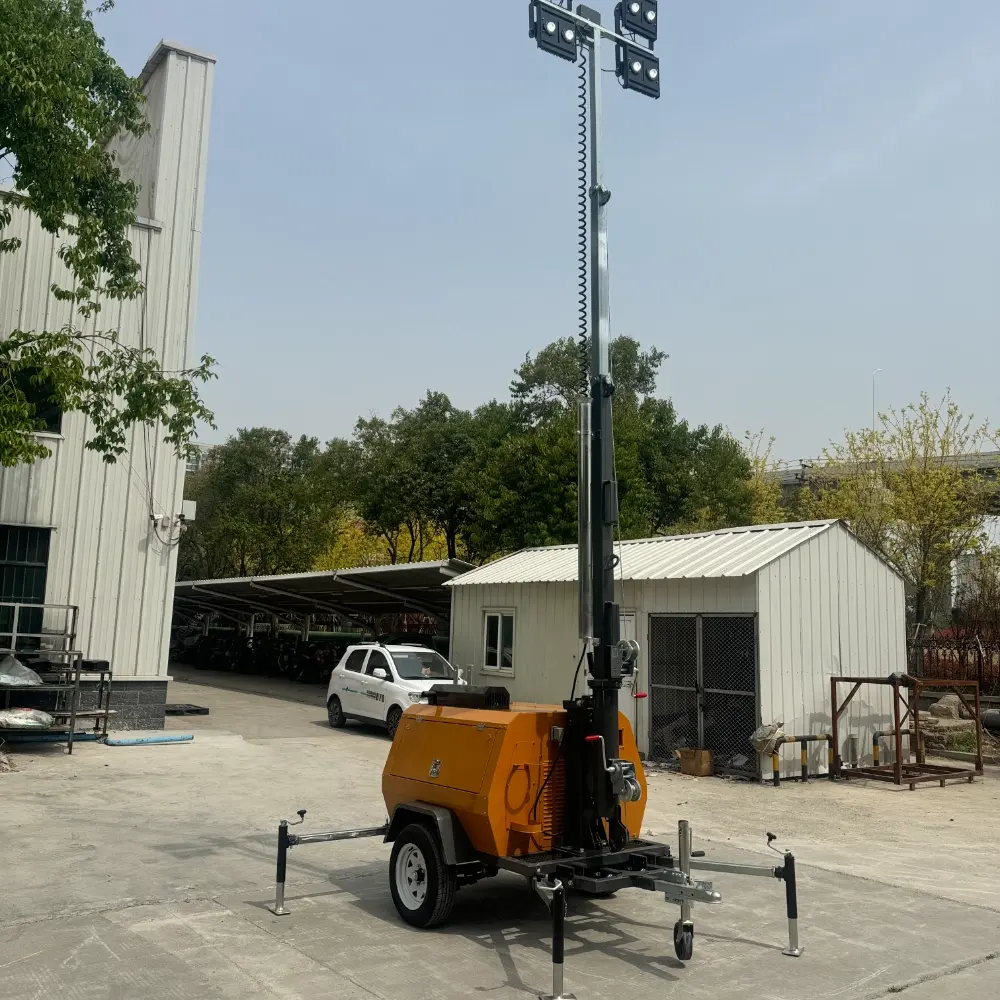

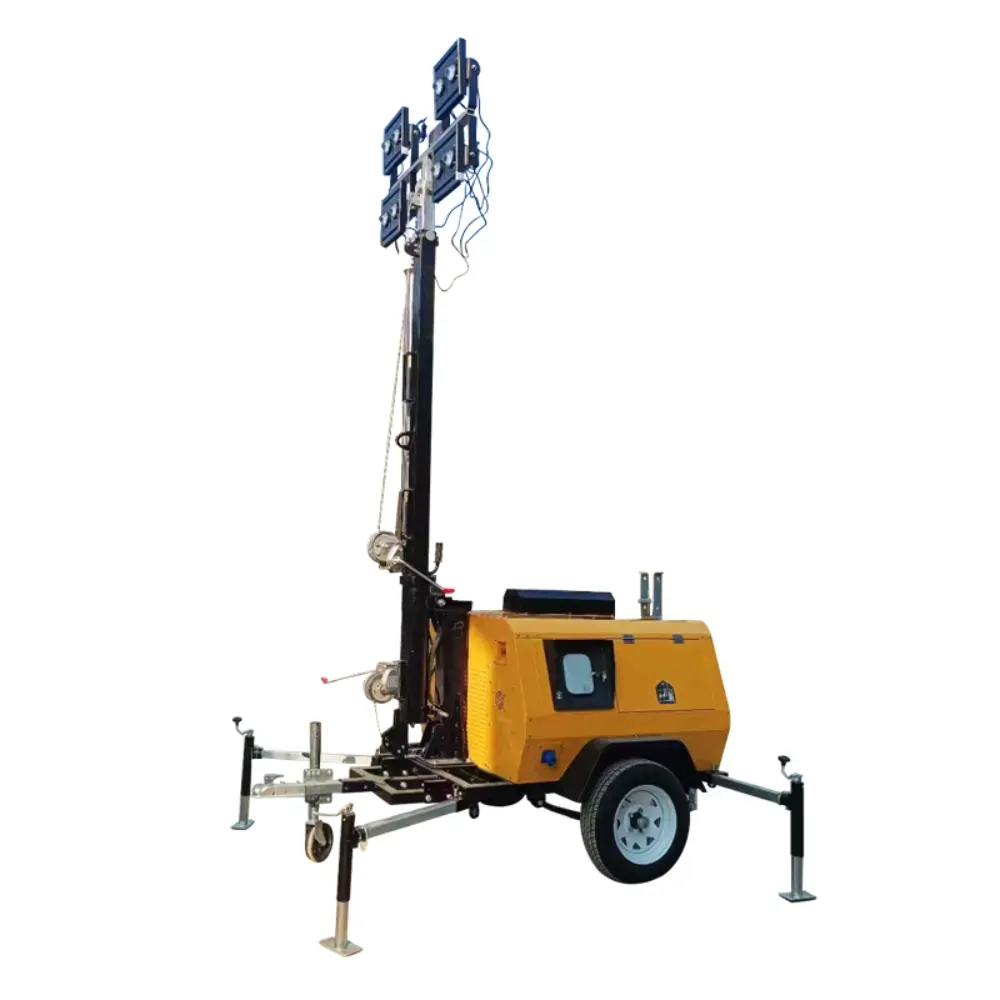

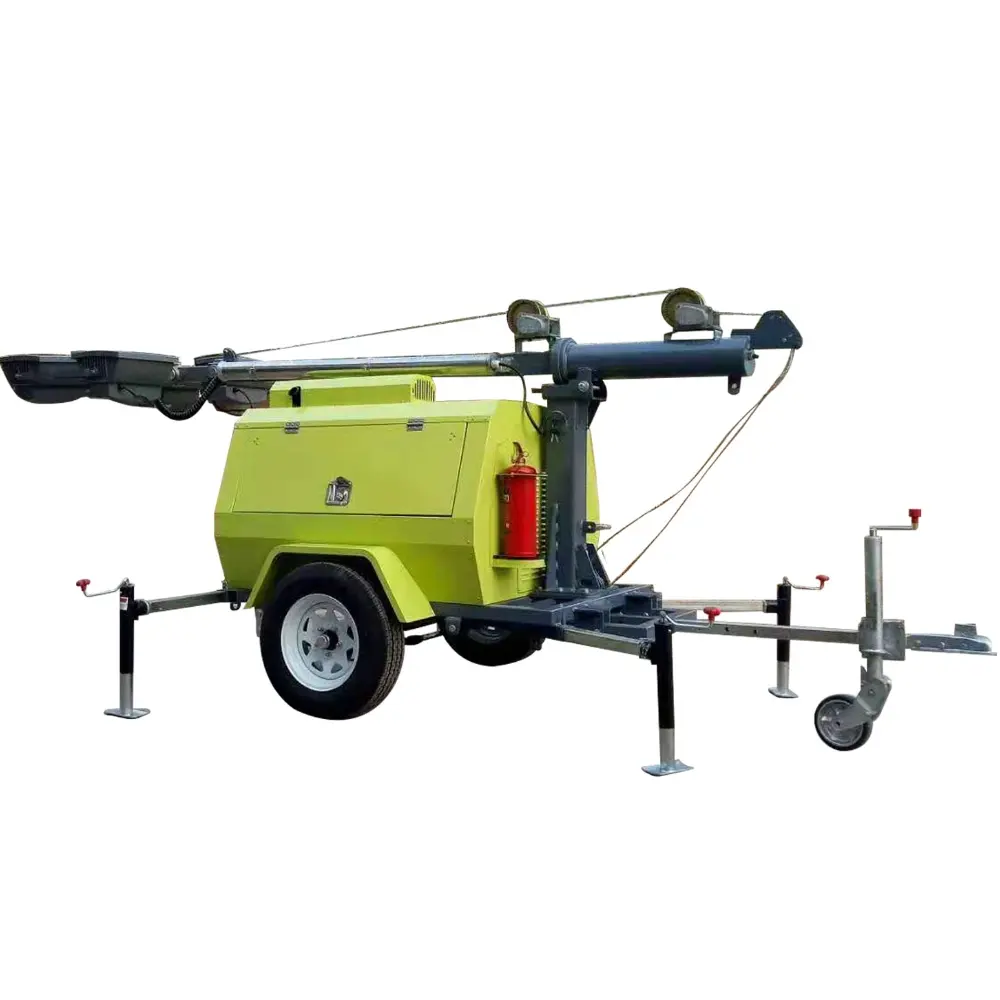

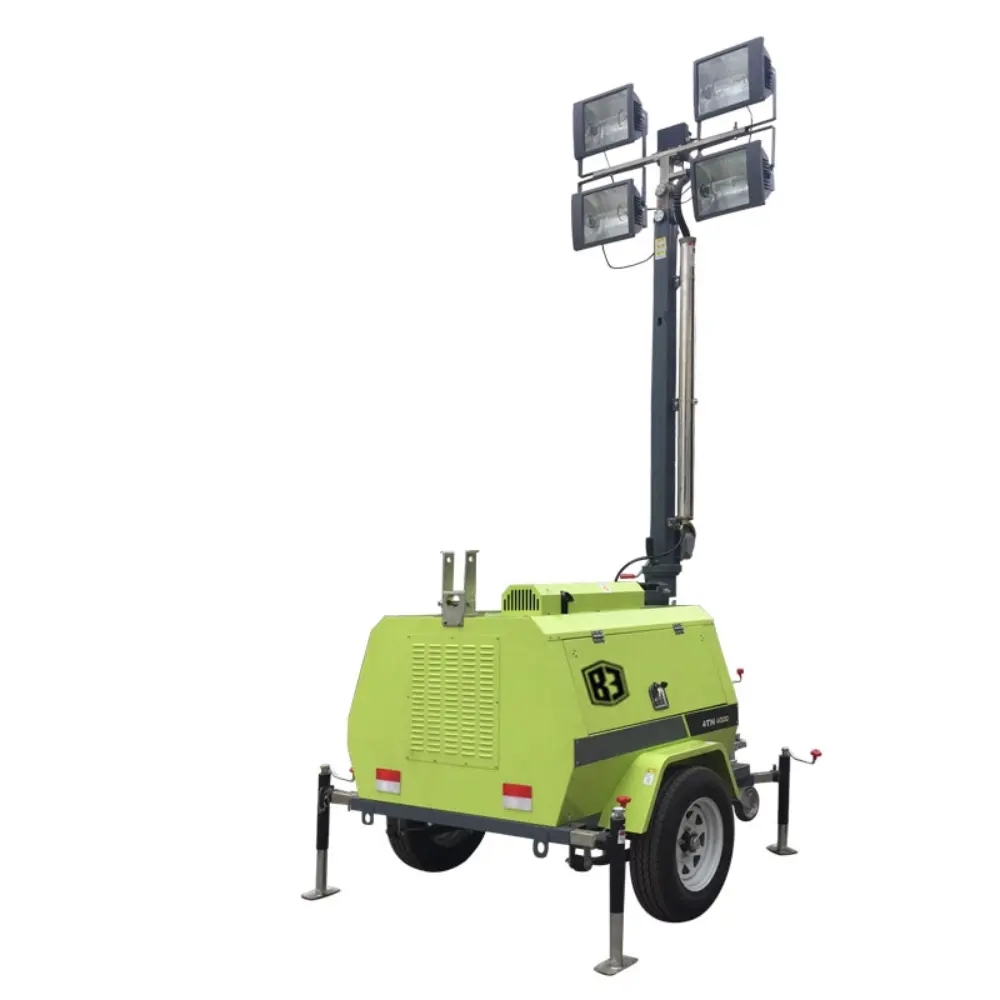

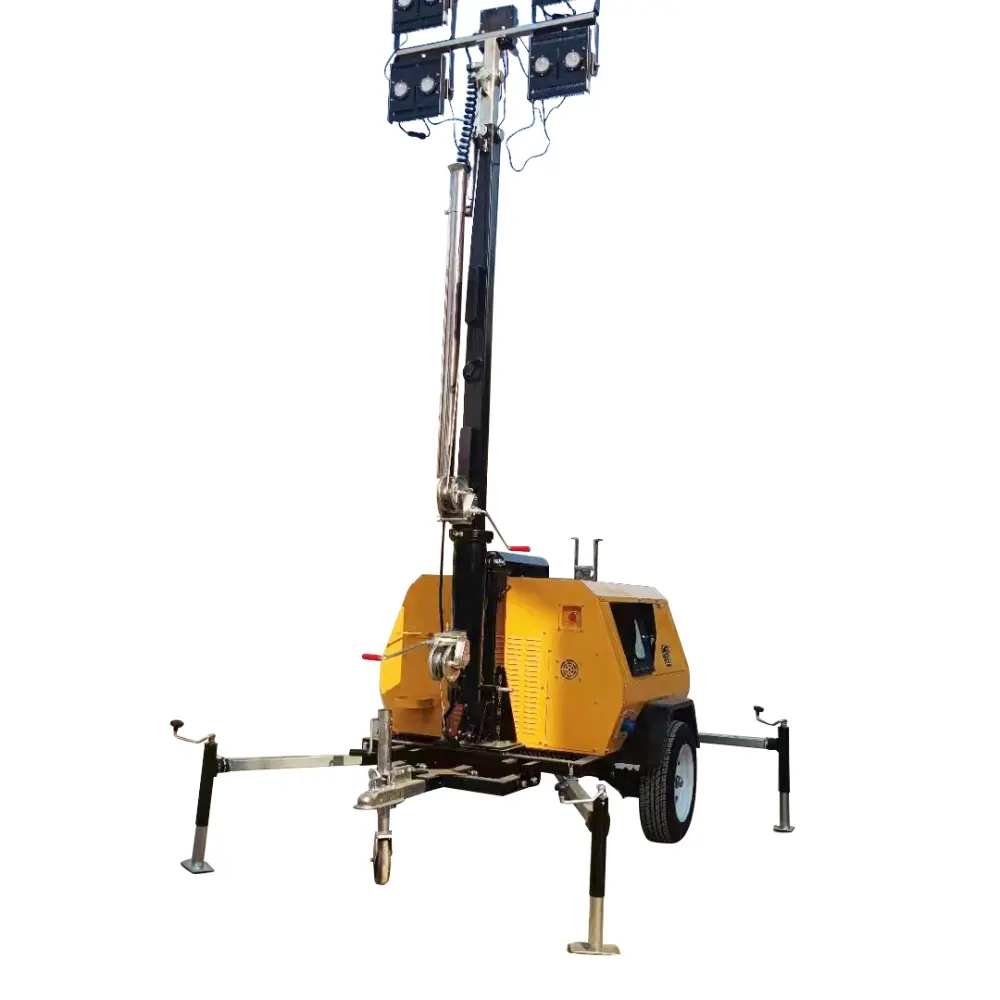

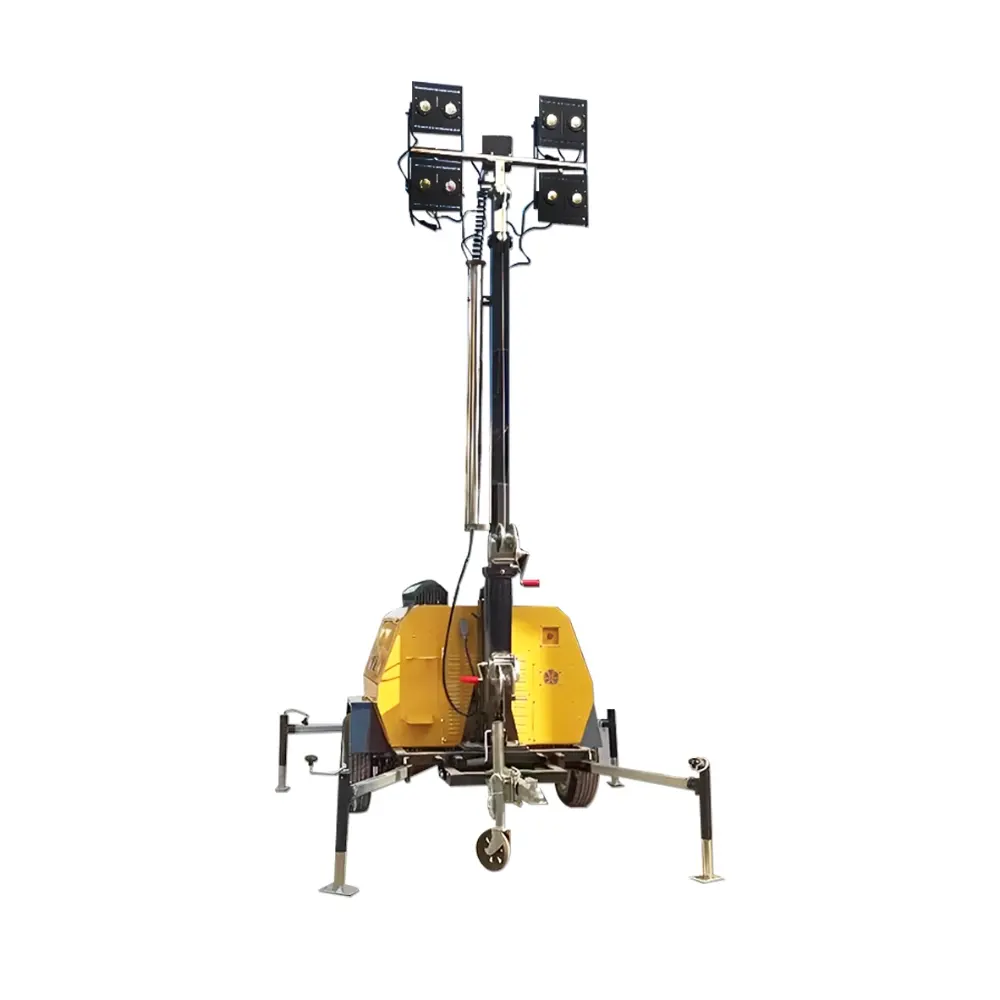

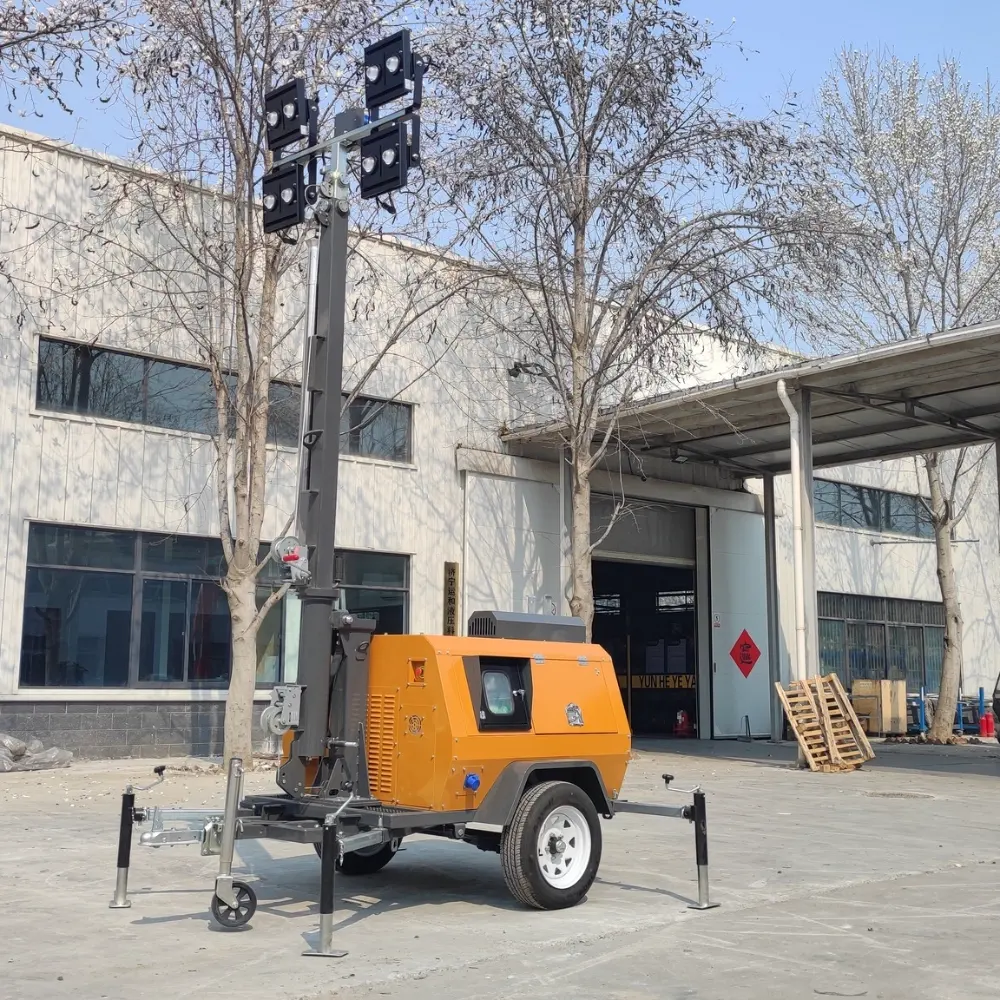

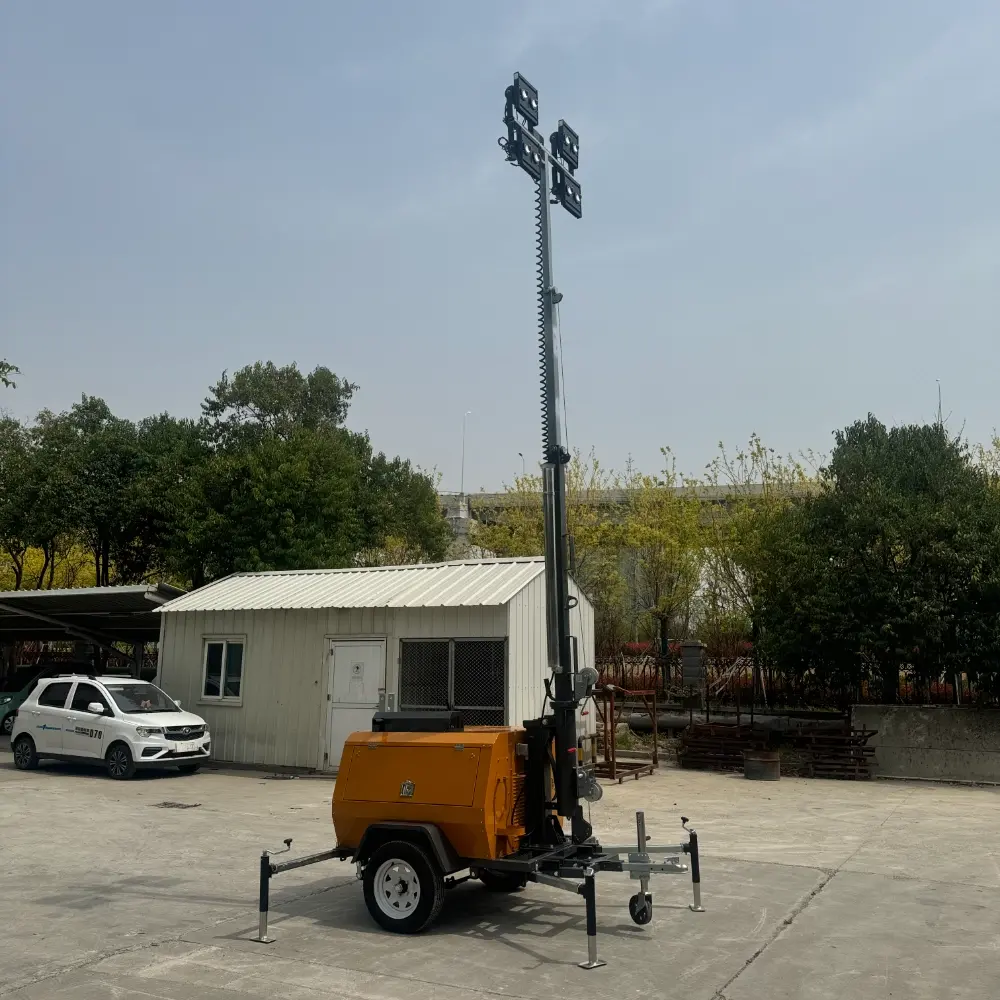

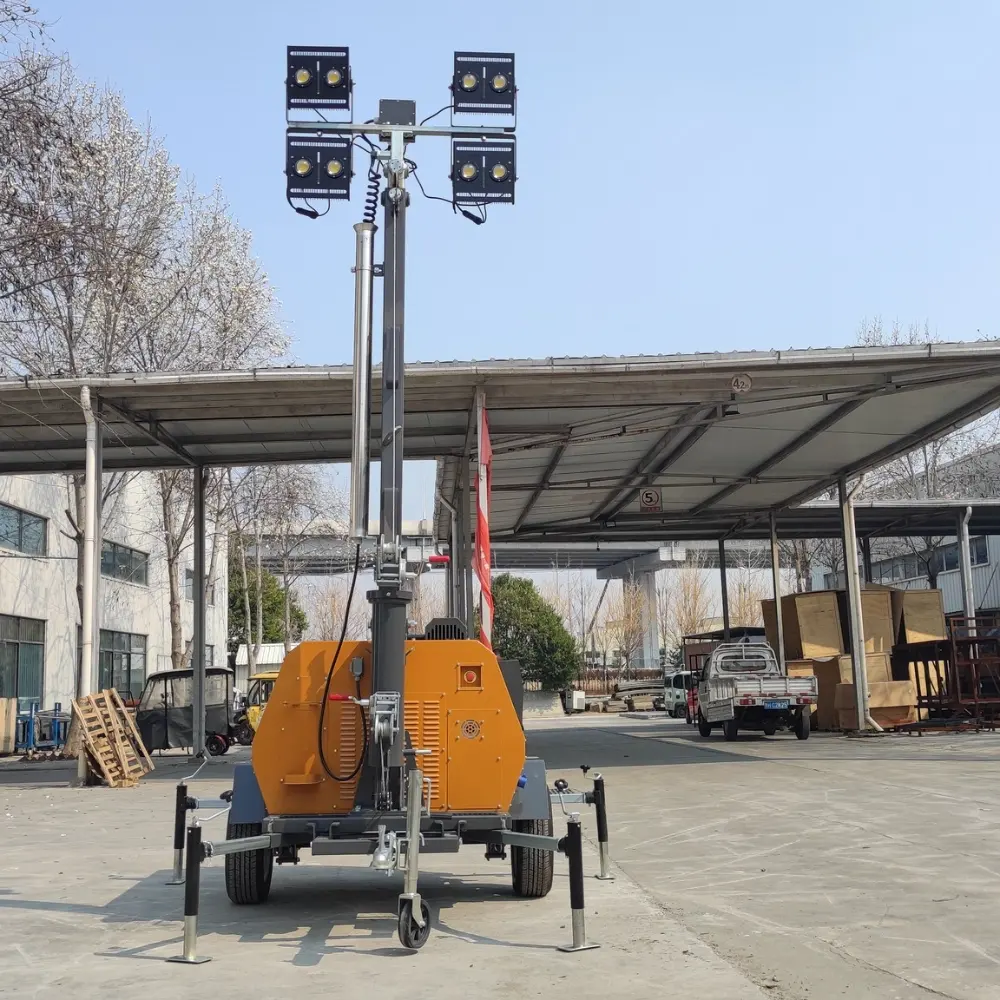

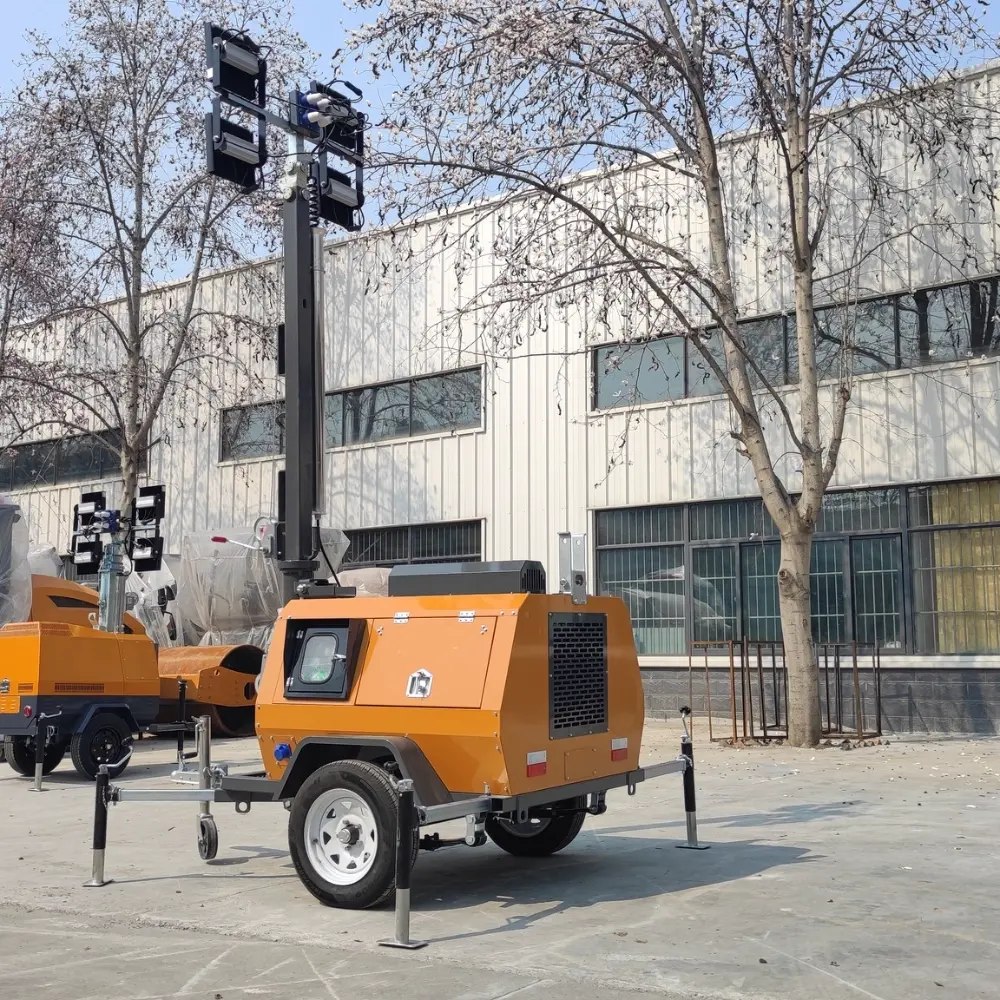

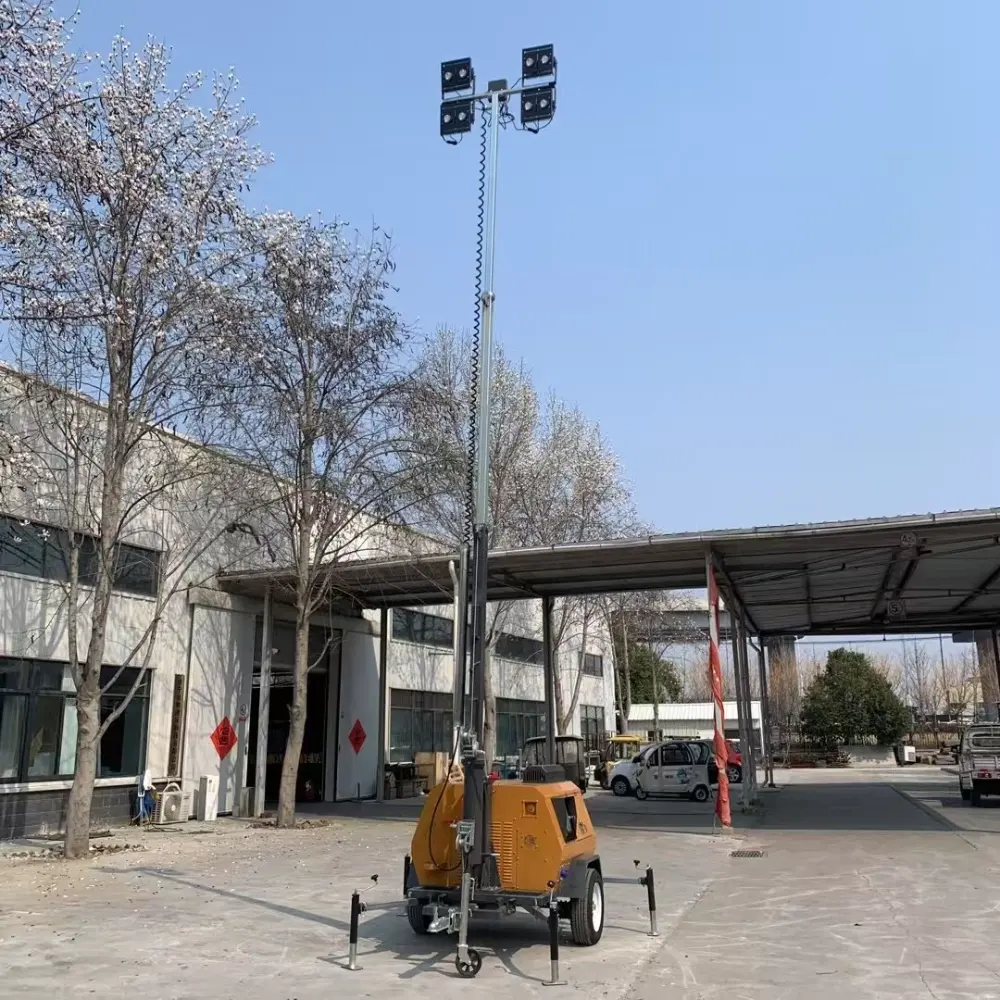

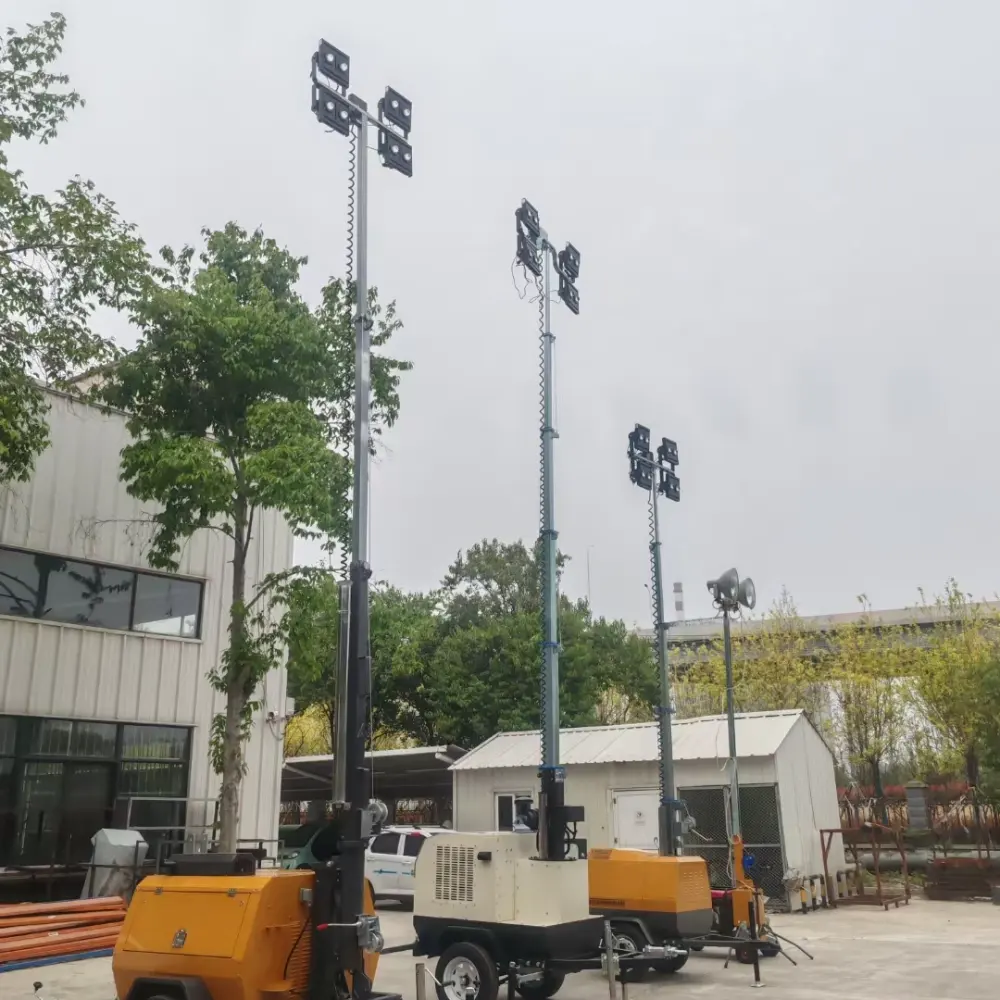

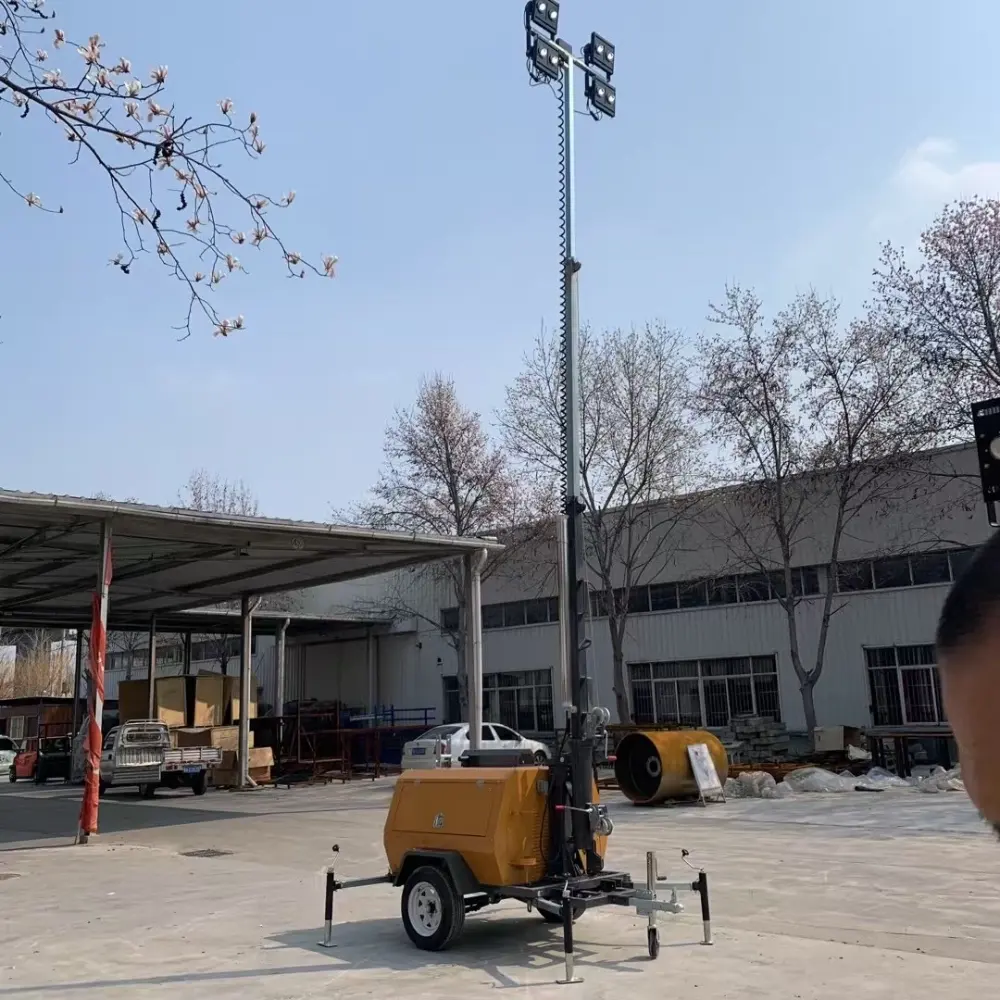

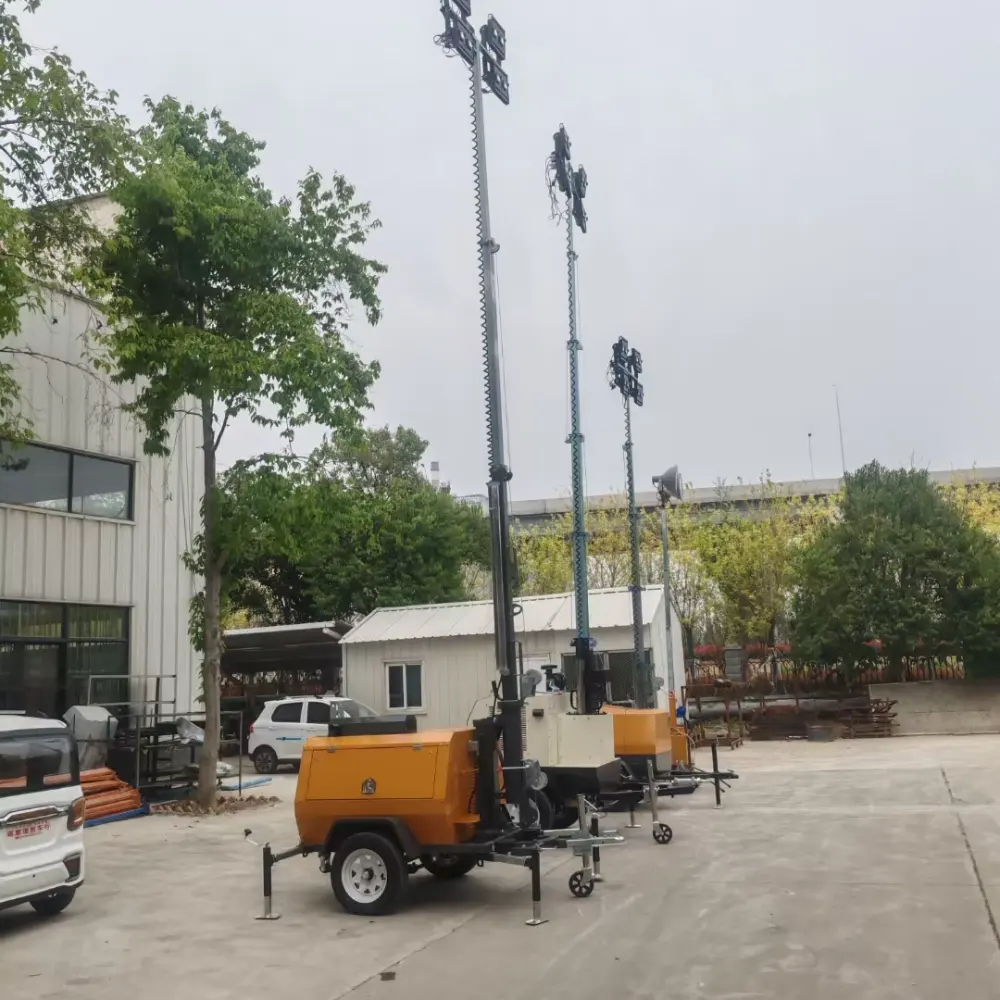

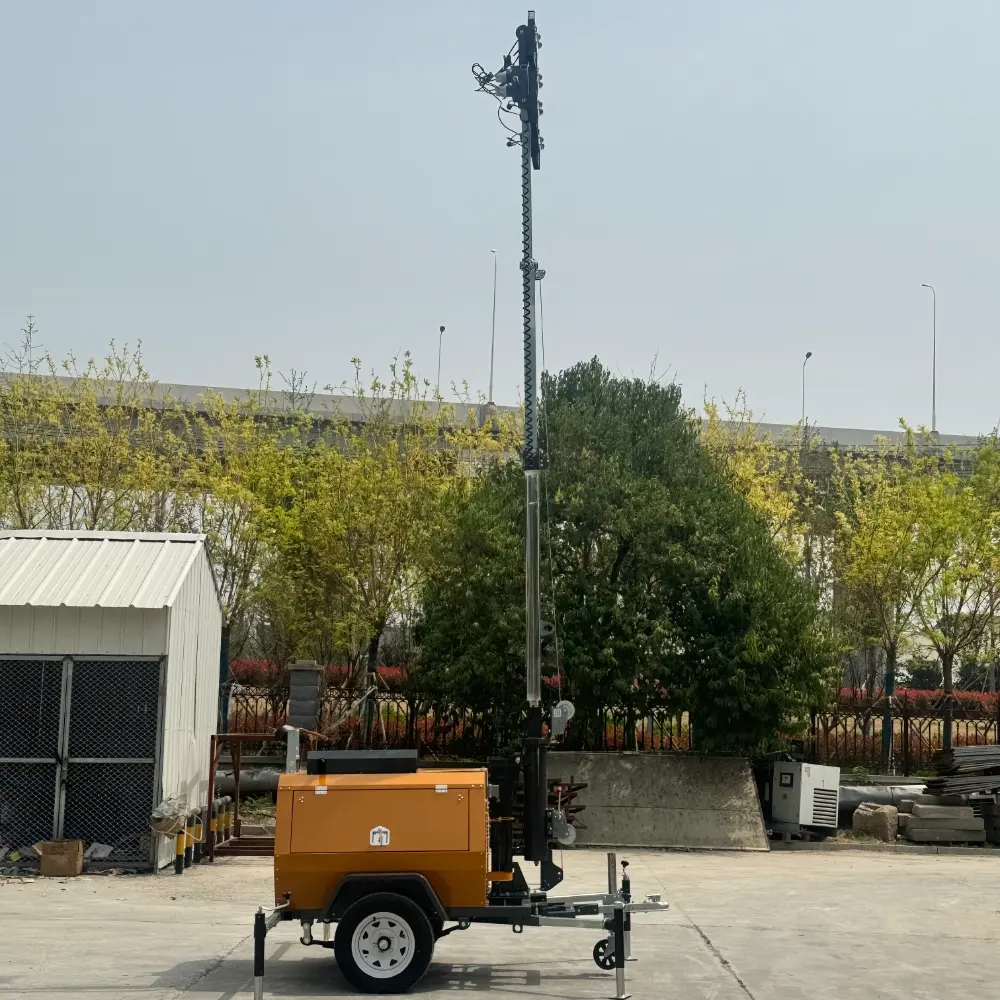

Hot sale Durable BMN4000(4TN4000) Trailer hand-lifting mobile lighting tower global supplier
Description
Logistics & Stock
Equipped with imported power,quality assurance, superior performance.
Equipped with metal halide lamp,large luminous flux and long life.
High performance self-braking hand winch
Three-section lifting pole,galvanized light pole, anti-drop,corrosion-resistant.
Five windproof support legs for stable support
Integrated operator panel with rain cover
9 meters lifting height,adjustable irradiation angle, long irradiation distance
Large capacity fuel tank,long battery lifeTechnical Date Unit BMN4000 (4TN4000) Model BMN4000 (4TN4000) Engine Model YANMAR CHANGCAI KUBOTA Engine Model 3TNV76 – 6GE CZ380Q 3M78 D1105 Engine Type Three cylinder, water – cooled, four stroke Power kw 11.1 14.3 11.5 12.6 Frequency rpm 1500/1800 Burning method E – TVS Intake method naturally aspirated Emission class conventional Generator standard configuration XINGNUO Rated voltage (50/60hz) V 230/240 – 120 Motor insulation class CLASS H Motor protection class IP23 Headlights Metal Halide Flood Lights / LED Luminous flux lm 440000 / 208000 Number & power of lamps w 1000×4/400×4 Number of pole sections 3 Fuel tank capacity L 110 Continuous working time h 65 Unit start method key start Maximum wind speed m/s 20 Noise level dB 72 at 7 meters Suspension & Brakes Leaf spring suspension & single axle without brake Drawbar Adjustable lever with retractable adjustable guide wheel Maximum lift height m 9 Tire size 14 Maximum traction speed km/h 100 Length mm 4360 Width mm 1430 High mm 1450 Weight kg 960
