| Overall size | ||
| (L*W)--Lay down support frame | mm | 1585*1740 |
| (L1*W1)--Pack up support frame | mm | 1250*860 |
| (H)LighthouseTelescopic | mm | 1700-4800 |
| Luminous Flux | Im | 44000 |
| Power*Number of lights | W | 1000*4 |

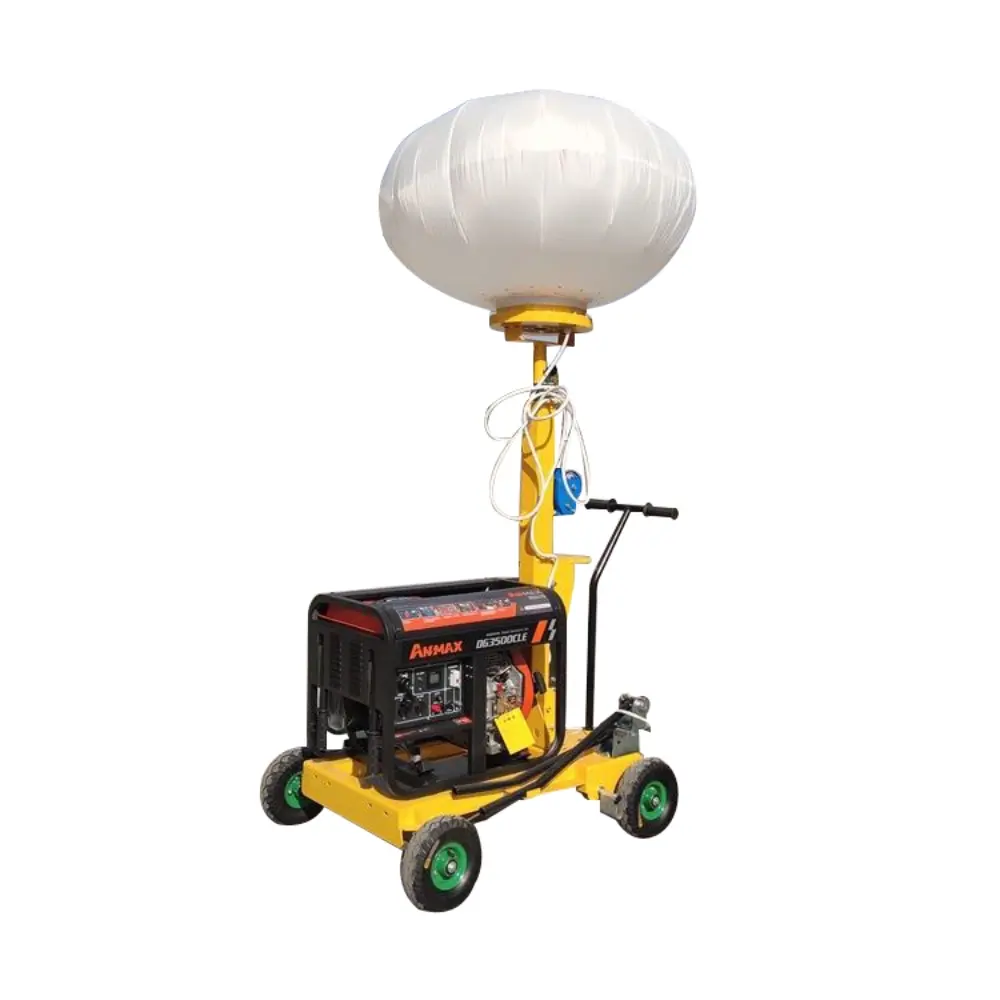

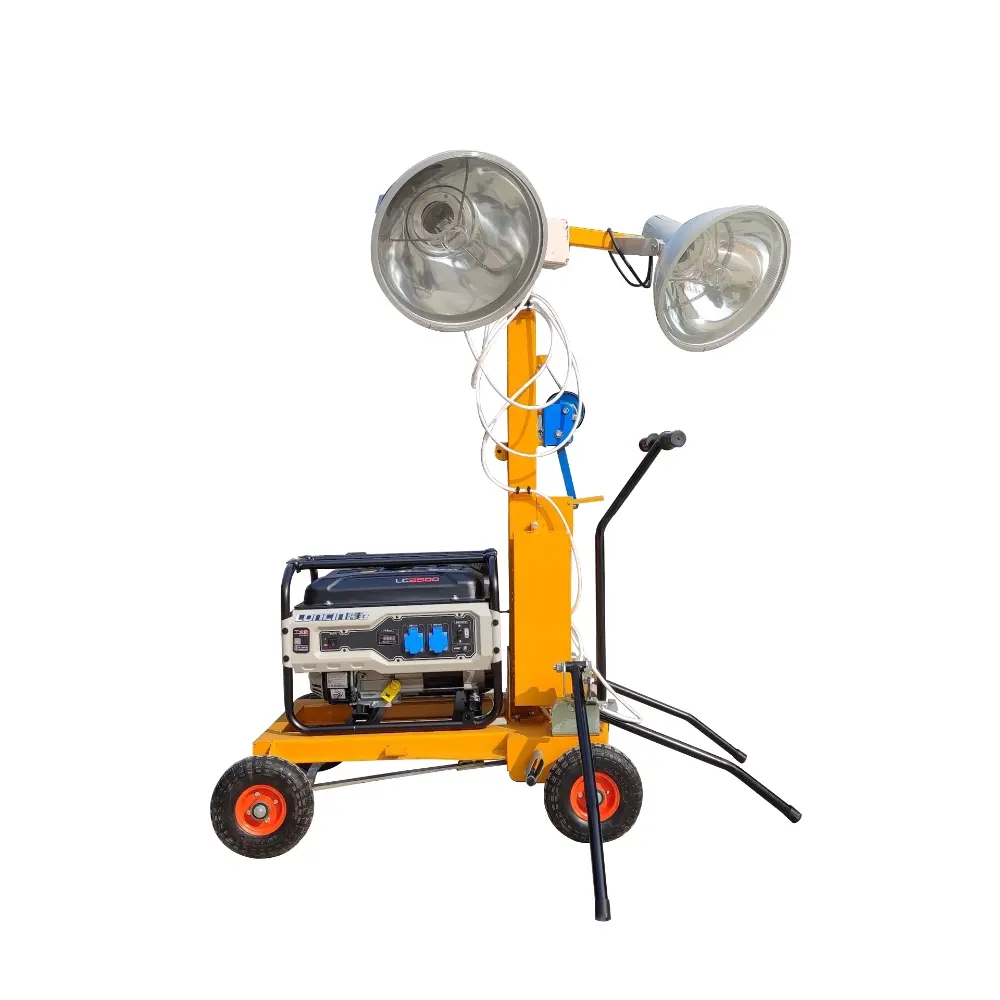

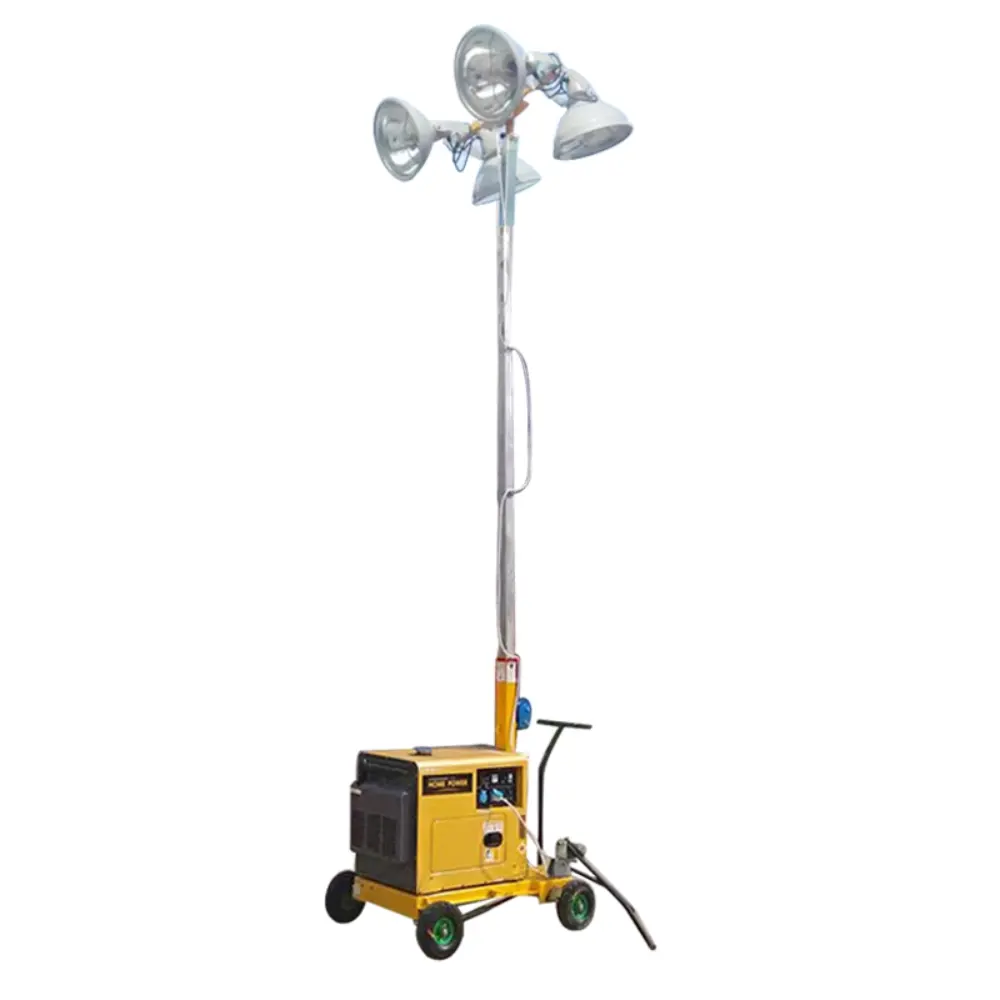

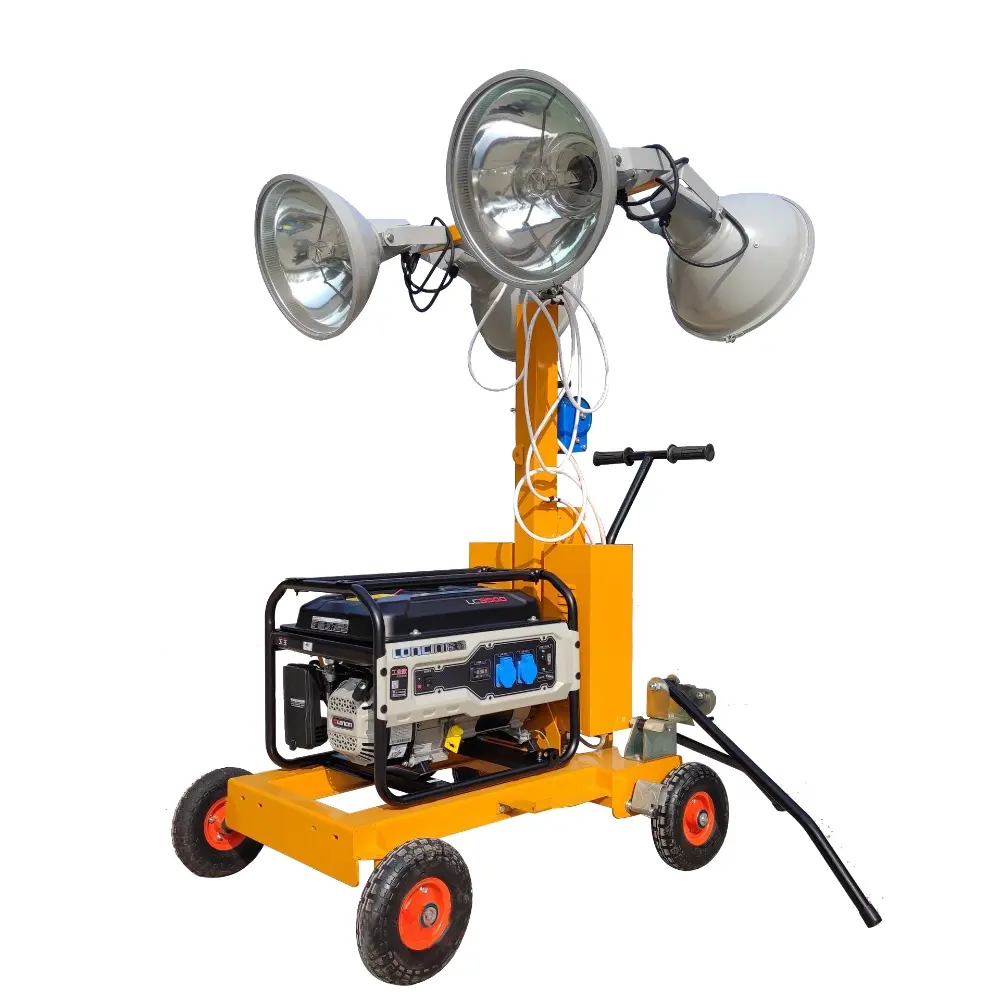

High quality BMLV400/1000/500 Hand push & hand lift mobile lighting tower for sale
Description
Logistics & Stock
Equipped with imported power,quality assurance, superior performance.
Equipped with metal halide lamp,large luminous flux and long life.
High performance self-braking hand winch
4-section lifting pole,galvanized light pole, anti-drop,corrosion-resistant.
Left and right windproof support frame,stable support
Integrated operator panel with rain cover
5 meters lifting height,adjustable irradiation angle, long irradiation distanceTechnical Date Unit BMLV400A/B BMLV1000A/B BMLV1000QA BMLV500B Model BMLV400A BMLV400B BMLV1000A BMLV1000B BMLV1000QA BMLV500B Generator set EC2500CX EC3800DX EC4000CX EC6500CX EF6500E3 Brand HONDA HONDA HONDA HONDA ANMAX HONDA Model GX160K1 GX240K1 GX270H1 GX390K1 EF6500E3 Type Air – cooled four – stroke single cylinder diesel engine Air – cooled four – stroke Gasoline Generator Name Single phase alternator Frequency hz 50 Rated voltage V 220 Maximum power kva 2.2 3.1 3.6 5.5 5.5 3.5 Rated power kva 2 2.8 3.2 5 5 3 Continuously working hr 12.1 11.9 11.9 9 9 13 Fuel tank capacity L 15 24 24 25 25 15 Engine weight kg 45 68 71 83 93 engine size mm 590430435 590430435 681530571 680510540 690530575 Power*Number of lights w 400*2 400*4 1000*2 1000*4 1000*2 500*4 Luminous flux lm 72000 144000 220000 440000 220000 60000 headlights Metal Halogen Lamp/LED optional Iodine tungsten lamp Light stand retractable mm 1700 – 4800 1800 – 4500 Light Stand Operation Three – section lift rod Three – section lift rod Lifting method hand lift Remote control lift Inclination ° <10 Wind resistance <6 L*W – Lay down support mm 1585*1740 1585*1740 1585*1740 1585*1740 1710*1740 L*W – fold support mm 1250*860 1250*860 1250*860 1250*860 1375*860 800*500 Way of walking Push type Weight (without generator) kg 112 116 114 120 117 80(with motor)
Full details
